Class representing vector of real numbers. More...

#include <floatarray.h>

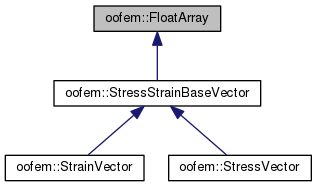

Inheritance diagram for oofem::FloatArray:

Public Member Functions
	FloatArray (int n=0)
	Constructor for sized array. Data is zeroed. More...

	FloatArray (double)=delete
	Disallow double parameter, which can otherwise give unexpected results. More...

	FloatArray (const FloatArray &src)
	Copy constructor. Creates the array from another array. More...

	FloatArray (FloatArray &&src)
	Move constructor. Creates the array from another array. More...

	FloatArray (std::initializer_list< double >list)
	Initializer list constructor. More...

virtual	~FloatArray ()
	Destructor. More...

FloatArray &	operator= (const FloatArray &src)
	Assignment operator. More...

FloatArray &	operator= (FloatArray &&src)
	Move operator. More...

FloatArray &	operator= (std::initializer_list< double >list)
	Assignment operator. More...

void	push_back (const double &iVal)
	Add one element. More...

bool	isFinite () const
	Returns true if no element is NAN or infinite. More...

double &	at (int i)
	Coefficient access function. More...

double	at (int i) const
	Coefficient access function. More...

double &	operator() (int i)
	Coefficient access function. More...

double &	operator[] (int i)

const double &	operator() (int i) const
	Coefficient access function. More...

const double &	operator[] (int i) const

void	checkBounds (int i) const
	Checks size of receiver towards requested bounds. More...

void	checkSizeTowards (const IntArray &loc)
	Checks size of receiver towards values stored in loc array. More...

void	reserve (int s)
	Allocates enough size to fit s, and clears the array. More...

void	resizeWithValues (int s, int allocChunk=0)
	Checks size of receiver towards requested bounds. More...

void	resize (int s)
	Resizes receiver towards requested size. More...

void	clear ()
	Clears receiver (zero size). More...

void	hardResize (int s)
	Resizes the size of the receiver to requested bounds. More...

bool	containsOnlyZeroes () const
	Returns nonzero if all coefficients of the receiver are 0, else returns zero. More...

int	giveSize () const
	Returns the size of receiver. More...

bool	isNotEmpty () const
	Returns true if receiver is not empty. More...

bool	isEmpty () const
	Returns true if receiver is empty. More...

void	negated ()
	Switches the sign of every coefficient of receiver. More...

virtual void	printYourself () const
	Print receiver on stdout. More...

virtual void	printYourself (const std::string &name) const
	Print receiver on stdout with custom name. More...

virtual void	printYourselfToFile (const std::string filename, const bool showDimensions=true) const
	Print receiver to file. More...

virtual void	pY () const
	Print receiver on stdout with high accuracy. More...

void	zero ()
	Zeroes all coefficients of receiver. More...

void	append (const FloatArray &a)
	Appends array to reciever. More...

void	append (double a)
	Appends value to reciever. More...

void	beProductOf (const FloatMatrix &aMatrix, const FloatArray &anArray)
	Receiver becomes the result of the product of aMatrix and anArray. More...

void	beTProductOf (const FloatMatrix &aMatrix, const FloatArray &anArray)
	Receiver becomes the result of the product of aMatrix^T and anArray. More...

void	beVectorProductOf (const FloatArray &v1, const FloatArray &v2)
	Computes vector product (or cross product) of vectors given as parameters, $v_1 \times v_2$ , and stores the result into receiver. More...

void	beScaled (double s, const FloatArray &b)
	Sets receiver to be . More...

void	add (const FloatArray &src)
	Adds array src to receiver. More...

void	add (double factor, const FloatArray &b)
	Adds array times factor to receiver. More...

void	plusProduct (const FloatMatrix &b, const FloatArray &s, double dV)
	Adds the product . More...

void	add (double offset)
	Adds scalar to receiver. More...

void	subtract (const FloatArray &src)
	Subtracts array src to receiver. More...

void	times (double s)
	Multiplies receiver with scalar. More...

void	beMaxOf (const FloatArray &a, const FloatArray &b)
	Sets receiver to maximum of a or b's respective elements. More...

void	beMinOf (const FloatArray &a, const FloatArray &b)
	Sets receiver to be minimum of a or b's respective elements. More...

void	beDifferenceOf (const FloatArray &a, const FloatArray &b)
	Sets receiver to be a - b. More...

void	beDifferenceOf (const FloatArray &a, const FloatArray &b, int n)
	Sets receiver to be a - b, using only the first n entries. More...

void	beSubArrayOf (const FloatArray &src, const IntArray &indx)
	Extract sub vector form src array and stores the result into receiver. More...

void	addSubVector (const FloatArray &src, int si)
	Adds the given vector as sub-vector to receiver. More...

void	assemble (const FloatArray &fe, const IntArray &loc)
	Assembles the array fe (typically, the load vector of a finite element) into the receiver, using loc as location array. More...

void	assembleSquared (const FloatArray &fe, const IntArray &loc)
	Assembles the array fe with each component squared. More...

void	copySubVector (const FloatArray &src, int si)
	Copy the given vector as sub-vector to receiver. More...

double	distance (const FloatArray &x) const
	Computes the distance between position represented by receiver and position given as parameter. More...

double	distance (const FloatArray *x) const

double	distance (const FloatArray &iP1, const FloatArray &iP2, double &oXi, double &oXiUnbounded) const
	Computes distance between the position represented by the reciever and a line segment represented by it's start point iP1 and it's end point iP2. More...

double	distance_square (const FloatArray &iP1, const FloatArray &iP2, double &oXi, double &oXiUnbounded) const

double	distance_square (const FloatArray &x) const
	Computes the square of distance between position represented by receiver and position given as parameter. More...

int	giveIndexMinElem (void)
	Returns index (between 1 and Size) of minimum element in the array. More...

int	giveIndexMaxElem (void)
	Returns index (between 1 and Size) of maximum element in the array. More...

double	dotProduct (const FloatArray &x) const
	Computes the dot product (or inner product) of receiver and argument. More...

double	dotProduct (const FloatArray &x, int size) const
	Computes the dot product (or inner product) of receiver and argument. More...

double	normalize ()
	Normalizes receiver. More...

double	computeNorm () const
	Computes the norm (or length) of the vector. More...

double	computeSquaredNorm () const
	Computes the square of the norm. More...

double	sum () const
	Computes the sum of receiver values. More...

double	product () const
	Computes the product of receiver values. More...

void	rotatedWith (FloatMatrix &r, char mode)
	Returns the receiver a rotated according the change-of-base matrix r. More...

const double *	givePointer () const
	Gives the pointer to the raw data, breaking encapsulation. More...

double *	givePointer ()

void	beVectorForm (const FloatMatrix &aMatrix)
	Reciever will be a vector with 9 components formed from a 3x3 matrix. More...

void	beSymVectorForm (const FloatMatrix &aMatrix)
	Reciever will be a vector with 6 components formed from a 3x3 matrix. More...

void	beSymVectorFormOfStrain (const FloatMatrix &aMatrix)

void	changeComponentOrder ()
	Swaps the fourth and sixth index in the array. More...

void	power (const double exponent)
	Raise each element to its power. More...

void	beColumnOf (const FloatMatrix &mat, int col)
	Reciever will be set to a given column in a matrix. More...

contextIOResultType	storeYourself (DataStream &stream) const

contextIOResultType	restoreYourself (DataStream &stream)

int	givePackSize (DataStream &buff) const

Iterator for for-each loops:
std::vector< double >::iterator	begin ()

std::vector< double >::iterator	end ()

std::vector< double >::const_iterator	begin () const

std::vector< double >::const_iterator	end () const

IML compatibility
FloatArray &	operator= (const double &)
	Assignment of scalar to all components of receiver. More...

Protected Attributes
std::vector< double >	values
	Stored values. More...

Friends
class	FloatMatrix

std::ostream &	operator<< (std::ostream &out, const FloatArray &x)

Detailed Description

Class representing vector of real numbers.

This array can grow or shrink to desired dimension. The lower value index of array is 1, upper depends on array size.

Tasks:

Storing and returning a coefficient (method 'at') ;
Expanding its size in order to store additional coefficients (method growTo )
Performing basic operations : summation, product, rotation, etc.
Assembling to itself another array, typically an elemental or nodal load vector (method 'assemble').
Reading/writing its description on a given file.
Introduced allocatedSize variable to allow dynamic resizing of array size possibly without memory reallocation. At startup array occupies space given by allocatedSpace = size. Then there can be
- Further request for resizing array to smaller dimension then we only change size variable, but allocatedSize variable remain untouched - expecting possible array grow and then re-using previously allocated space.
- If further request for growing then is necessary memory reallocation. This process is controlled in resize member function.

Remarks:

Method givePointer is an encapsulation crime. It is used only for speeding up method 'dot' of class RowColumn and for speeding method initialize.

Author: Mikael Öhman; Erik Svenning; Jim Brouzoulis; many others (please add yourselves)

Definition at line 82 of file floatarray.h.

Constructor & Destructor Documentation

oofem::FloatArray::FloatArray ( int n = 0 )

inline

Constructor for sized array. Data is zeroed.

Definition at line 98 of file floatarray.h.

oofem::FloatArray::FloatArray ( double )

delete

Disallow double parameter, which can otherwise give unexpected results.

oofem::FloatArray::FloatArray ( const FloatArray & src )

inline

Copy constructor. Creates the array from another array.

Definition at line 102 of file floatarray.h.

oofem::FloatArray::FloatArray ( FloatArray && src )

inline

Move constructor. Creates the array from another array.

Definition at line 104 of file floatarray.h.

oofem::FloatArray::FloatArray ( std::initializer_list< double > list )

inline

Initializer list constructor.

Definition at line 106 of file floatarray.h.

virtual oofem::FloatArray::~FloatArray ( )

inlinevirtual

Destructor.

Definition at line 108 of file floatarray.h.

Member Function Documentation

void oofem::FloatArray::add ( const FloatArray & src )

Adds array src to receiver.

If the receiver's size is zero, it adjusts its size to size of src array. If receiver's size is nonzero and different from src array size an error is generated.

Parameters

src	Array to add to receiver.

Definition at line 156 of file floatarray.C.

References givePointer(), giveSize(), isEmpty(), and OOFEM_ERROR.

void oofem::FloatArray::add	(	double	factor,
		const FloatArray &	b
	)

Adds array times factor to receiver.

If the receiver's size is zero, it adjusts its size to size of b array. If receiver's size is nonzero and different from b array size an error is generated.

Parameters

factor	Factor to be multiplied with b.
b	Will be multiplied by factor and added to receiver.

Definition at line 198 of file floatarray.C.

References beScaled(), givePointer(), giveSize(), isEmpty(), and OOFEM_ERROR.

void oofem::FloatArray::add ( double offset )

Adds scalar to receiver.

Parameters

offset Scalar to add

Definition at line 190 of file floatarray.C.

void oofem::FloatArray::addSubVector	(	const FloatArray &	src,
		int	si
	)

Adds the given vector as sub-vector to receiver.

The sub-vector values will be added to receivers corresponding receiver's values at positions (si,...,si+src.size). The size of receiver will be adjusted, if necessary.

Parameters

src	Sub-vector to be added.
si	Determines the position (receiver's 1-based index) of first src value to be added.

Definition at line 399 of file floatarray.C.

References giveSize(), and resizeWithValues().

Referenced by oofem::Node2NodeContactL::computeContactForces(), oofem::ContactElement::ContactElement(), oofem::HeMoBazNajMaterial::giveFluxVector(), oofem::HeMoTKMaterial::giveFluxVector(), and oofem::HeMoKunzelMaterial::giveFluxVector().

void oofem::FloatArray::append ( const FloatArray & a )

Appends array to reciever.

Parameters

a	Values to be appended.

Definition at line 664 of file floatarray.C.

References begin(), end(), and values.

Referenced by oofem::Element::computeBoundaryVectorOf(), oofem::PrescribedGradientBCWeak::computeIntForceGPContrib(), oofem::Element::computeVectorOf(), oofem::Element::computeVectorOfPrescribed(), and oofem::Delamination::initializeFrom().

void oofem::FloatArray::append ( double a )

Appends value to reciever.

Parameters

a	Value to be appended.

Definition at line 670 of file floatarray.C.

References values.

void oofem::FloatArray::assemble	(	const FloatArray &	fe,
		const IntArray &	loc
	)

Assembles the array fe (typically, the load vector of a finite element) into the receiver, using loc as location array.

Parameters

fe	Array to be assembled.
loc	Array of code numbers. src(i) value will be added to receiver value at position loc(i) (if this loc(i) value is nonzero).

Definition at line 551 of file floatarray.C.

References oofem::IntArray::at(), at(), oofem::IntArray::giveSize(), giveSize(), and OOFEM_ERROR.

void oofem::FloatArray::assembleSquared	(	const FloatArray &	fe,
		const IntArray &	loc
	)

Assembles the array fe with each component squared.

Parameters

fe	Array to be assembled (with each component squared)
loc	Location array.

Definition at line 572 of file floatarray.C.

References oofem::IntArray::at(), at(), oofem::IntArray::giveSize(), giveSize(), and OOFEM_ERROR.

Referenced by oofem::PrescribedGradientBCNeumann::assembleVector(), oofem::SurfaceTensionBoundaryCondition::assembleVector(), oofem::TransportGradientNeumann::assembleVector(), oofem::MixedGradientPressureWeakPeriodic::assembleVector(), oofem::MixedGradientPressureNeumann::assembleVector(), oofem::EngngModel::assembleVectorFromBC(), oofem::EngngModel::assembleVectorFromDofManagers(), oofem::EngngModel::assembleVectorFromElements(), oofem::ContactDefinition::computeContactForces(), and oofem::WeakPeriodicBoundaryCondition::giveInternalForcesVector().

double& oofem::FloatArray::at ( int i )

inline

Coefficient access function.

Returns value of coefficient at given position of the receiver. Provides 1-based indexing access.

Parameters

i	Position of coefficient in array.

Definition at line 131 of file floatarray.h.

double oofem::FloatArray::at ( int i ) const

inline

Coefficient access function.

Returns l-value of coefficient at given position of the receiver. Provides 1-based indexing access.

Parameters

i	Position of coefficient in array.

Definition at line 141 of file floatarray.h.

void oofem::FloatArray::beColumnOf	(	const FloatMatrix &	mat,
		int	col
	)

Reciever will be set to a given column in a matrix.

Todo:: This duplicates the "copyColumn" from FloatMatrix.

Definition at line 1114 of file floatarray.C.

References oofem::FloatMatrix::copyColumn().

void oofem::FloatArray::beDifferenceOf	(	const FloatArray &	a,
		const FloatArray &	b
	)

Sets receiver to be a - b.

Parameters

a	Array which receiver goes to.
b	Array which receiver comes from.

Definition at line 341 of file floatarray.C.

References FAST_RESIZE, giveSize(), OOFEM_ERROR, and values.

void oofem::FloatArray::beDifferenceOf	(	const FloatArray &	a,
		const FloatArray &	b,
		int	n
	)

Sets receiver to be a - b, using only the first n entries.

Parameters

a	Array which receiver goes to.
b	Array which receiver comes from.
n	Only first n entries are taken.

Definition at line 364 of file floatarray.C.

References FAST_RESIZE, giveSize(), and OOFEM_ERROR.

std::vector< double >:: iterator oofem::FloatArray::begin ( )

inline

Definition at line 91 of file floatarray.h.

Referenced by append(), computeSquaredNorm(), oofem::FloatMatrix::copyColumn(), copySubVector(), dotProduct(), operator=(), product(), oofem::FloatMatrix::setColumn(), sum(), and zero().

std::vector< double >:: const_iterator oofem::FloatArray::begin ( ) const

inline

Definition at line 93 of file floatarray.h.

void oofem::FloatArray::beMaxOf	(	const FloatArray &	a,
		const FloatArray &	b
	)

Sets receiver to maximum of a or b's respective elements.

Parameters

a	Array of size n.
b	Array of size n.

Definition at line 288 of file floatarray.C.

References FAST_RESIZE, giveSize(), oofem::max(), and OOFEM_ERROR.

Referenced by oofem::ParticleTopologyDescription::addLineSegment(), oofem::StokesFlowVelocityHomogenization::giveAreaOfRVE(), oofem::UnstructuredGridField::Cell::giveBoundingBox(), oofem::SpatialLocalizerInterface::SpatialLocalizerI_giveBBox(), oofem::TR_SHELL02::SpatialLocalizerI_giveBBox(), and oofem::TR_SHELL01::SpatialLocalizerI_giveBBox().

void oofem::FloatArray::beMinOf	(	const FloatArray &	a,
		const FloatArray &	b
	)

Sets receiver to be minimum of a or b's respective elements.

Parameters

a	Array of size n.
b	Array of size n.

Definition at line 315 of file floatarray.C.

References FAST_RESIZE, giveSize(), oofem::min(), and OOFEM_ERROR.

Referenced by oofem::ParticleTopologyDescription::addLineSegment(), oofem::StokesFlowVelocityHomogenization::giveAreaOfRVE(), oofem::UnstructuredGridField::Cell::giveBoundingBox(), oofem::SpatialLocalizerInterface::SpatialLocalizerI_giveBBox(), oofem::TR_SHELL02::SpatialLocalizerI_giveBBox(), and oofem::TR_SHELL01::SpatialLocalizerI_giveBBox().

void oofem::FloatArray::beProductOf	(	const FloatMatrix &	aMatrix,
		const FloatArray &	anArray
	)

Receiver becomes the result of the product of aMatrix and anArray.

Adjusts the size of receiver if necessary.

Definition at line 676 of file floatarray.C.

References at(), oofem::FloatMatrix::at(), FAST_RESIZE, oofem::FloatMatrix::giveNumberOfColumns(), oofem::FloatMatrix::giveNumberOfRows(), givePointer(), oofem::FloatMatrix::givePointer(), giveSize(), OOFEM_ERROR, and sum().

void oofem::FloatArray::beScaled	(	double	s,
		const FloatArray &	b
	)

Sets receiver to be $ a = s b $ .

Parameters

s	Scaling factor.
b	Vector to be scaled.

Definition at line 146 of file floatarray.C.

References FAST_RESIZE, and giveSize().

Referenced by add(), oofem::PrescribedGradientBCNeumann::assembleVector(), oofem::TransportGradientNeumann::assembleVector(), oofem::MixedGradientPressureNeumann::assembleVector(), oofem::MaterialForceEvaluator::computeMaterialForce(), oofem::DustMaterial::computePlastStrainDirM1(), oofem::DustMaterial::computePlastStrainDirM2(), oofem::DustMaterial::computePlastStrainDirM3(), oofem::ConstantEdgeLoad::computeValueAt(), oofem::ConstantSurfaceLoad::computeValueAt(), oofem::TransportGradientDirichlet::computeXi(), oofem::PrescribedGradientBCWeak::findCrackBndIntersecCoord(), oofem::SimpleInterfaceMaterial::giveEngTraction_3d(), oofem::IntMatElastic::giveFirstPKTraction_3d(), oofem::IsotropicMoistureTransferMaterial::giveFluxVector(), oofem::IsotropicHeatTransferMaterial::giveFluxVector(), oofem::NonlinearMassTransferMaterial::giveFluxVector(), oofem::HeMoBazNajMaterial::giveFluxVector(), oofem::HeMoTKMaterial::giveFluxVector(), oofem::LatticeTransportMaterial::giveFluxVector(), oofem::PolygonLine::giveGlobalCoordinates(), oofem::MisesMatNl::giveRealStressVector_1d(), oofem::RankineMatNl::giveRealStressVector_1d(), oofem::RankineMat::giveRealStressVector_1d(), oofem::RankineMatNl::giveRealStressVector_PlaneStress(), oofem::RankineMat::giveRealStressVector_PlaneStress(), oofem::MisesMatGrad::giveRealStressVectorGrad(), oofem::TrabBoneGrad3D::giveRealStressVectorGrad(), oofem::RankineMatGrad::giveRealStressVectorGrad(), oofem::PolygonLine::giveSubPolygon(), oofem::PrescribedGradientBCWeak::giveTractionElArcPos(), oofem::MixedGradientPressureWeakPeriodic::integrateTractionXTangent(), oofem::FEI3dLineLin::local2global(), oofem::operator*(), oofem::PLPrincipalStrain::propagateInterface(), oofem::PLHoopStressCirc::propagateInterface(), oofem::Triangle::refineTriangle(), and oofem::NonLinearDynamic::updateComponent().

void oofem::FloatArray::beSubArrayOf	(	const FloatArray &	src,
		const IntArray &	indx
	)

Extract sub vector form src array and stores the result into receiver.

Parameters

src	source vector for sub vector
indx	Determines sub vector. Receiver size will be indx max value, and on i-th position of subVector will be src(indx->at(i)) value.

Definition at line 379 of file floatarray.C.

References oofem::IntArray::at(), at(), FAST_RESIZE, oofem::IntArray::giveSize(), giveSize(), oofem::IntArray::maximum(), oofem::IntArray::minimum(), and OOFEM_ERROR.

Referenced by oofem::Shell7BaseXFEM::computeBoundaryEdgeLoadVector(), oofem::tet21ghostsolid::computeLoadVector(), oofem::tet21ghostsolid::computeStiffnessMatrix(), oofem::Quad1MindlinShell3D::computeVectorOfUnknowns(), oofem::StructuralMaterial::giveFirstPKStressVector_1d(), oofem::StructuralMaterial::giveFirstPKStressVector_PlaneStress(), oofem::Shell7BaseXFEM::giveInternalForcesVector(), oofem::MITC4Shell::giveInternalForcesVector(), oofem::Beam3d::giveInternalForcesVectorAtPoint(), oofem::tet21ghostsolid::giveInternalForcesVectorGivenSolution(), oofem::tet21ghostsolid::giveInternalForcesVectorGivenSolutionDebug(), oofem::Shell7Base::giveLayerContributionToSR(), oofem::StructuralMaterial::giveRealStressVector_ShellStressControl(), oofem::StructuralMaterial::giveRealStressVector_StressControl(), oofem::StructuralMaterial::giveReducedSymVectorForm(), and oofem::StructuralMaterial::giveReducedVectorForm().

void oofem::FloatArray::beSymVectorForm ( const FloatMatrix & aMatrix )

Reciever will be a vector with 6 components formed from a 3x3 matrix.

Off-diagonals of the matrix are symmetrized. Order of matrix components in vector: 11, 22, 33, 23, 13, 12

Parameters

aMatrix Matrix to transform.

Definition at line 1035 of file floatarray.C.

References oofem::FloatMatrix::at(), oofem::FloatMatrix::giveNumberOfColumns(), and OOFEM_ERROR.

Referenced by oofem::Shell7Base::computeCauchyStressVector(), oofem::MisesMat::giveFirstPKStressVector_3d(), oofem::AbaqusUserMaterial::giveFirstPKStressVector_3d(), and oofem::AnisotropicDamageMaterial::giveRealStressVector().

void oofem::FloatArray::beSymVectorFormOfStrain ( const FloatMatrix & aMatrix )

Definition at line 1014 of file floatarray.C.

References oofem::FloatMatrix::at(), oofem::FloatMatrix::giveNumberOfColumns(), and OOFEM_ERROR.

Referenced by oofem::SolidShell::computeEVector(), oofem::LargeStrainMasterMaterial::giveFirstPKStressVector_3d(), oofem::MisesMat::giveFirstPKStressVector_3d(), oofem::AbaqusUserMaterial::giveFirstPKStressVector_3d(), oofem::StructuralMaterial::giveFirstPKStressVector_3d(), and oofem::LargeStrainMasterMaterialGrad::giveFirstPKStressVectorGrad().

void oofem::FloatArray::beTProductOf	(	const FloatMatrix &	aMatrix,
		const FloatArray &	anArray
	)

Receiver becomes the result of the product of aMatrix^T and anArray.

Adjusts the size of receiver if necessary.

Definition at line 708 of file floatarray.C.

References at(), oofem::FloatMatrix::at(), FAST_RESIZE, oofem::FloatMatrix::giveNumberOfColumns(), oofem::FloatMatrix::giveNumberOfRows(), givePointer(), oofem::FloatMatrix::givePointer(), giveSize(), OOFEM_ERROR, and sum().

void oofem::FloatArray::beVectorForm ( const FloatMatrix & aMatrix )

Reciever will be a vector with 9 components formed from a 3x3 matrix.

Order of matrix components in vector: 11, 22, 33, 23, 13, 12, 32, 31, 21

Parameters

aMatrix Matrix to transform.

Definition at line 992 of file floatarray.C.

References oofem::FloatMatrix::at(), oofem::FloatMatrix::giveNumberOfColumns(), and OOFEM_ERROR.

Referenced by oofem::PrescribedGradientBCWeak::computeField(), oofem::tet21ghostsolid::computeStiffnessMatrix(), oofem::Shell7Base::computeStressMatrix(), oofem::LinearElasticMaterial::giveEshelbyStressVector_PlaneStrain(), oofem::MooneyRivlinMaterial::giveFirstPKStressVector_3d(), oofem::MisesMat::giveFirstPKStressVector_3d(), oofem::AbaqusUserMaterial::giveFirstPKStressVector_3d(), oofem::StructuralMaterial::giveFirstPKStressVector_3d(), oofem::MooneyRivlinMaterial::giveFirstPKStressVector_PlaneStrain(), oofem::Element::giveGlobalIPValue(), oofem::tet21ghostsolid::giveInternalForcesVectorGivenSolution(), oofem::tet21ghostsolid::giveInternalForcesVectorGivenSolutionDebug(), and oofem::StructuralInterfaceMaterial::giveIPValue().

void oofem::FloatArray::beVectorProductOf	(	const FloatArray &	v1,
		const FloatArray &	v2
	)

Computes vector product (or cross product) of vectors given as parameters, $v_1 \times v_2$ , and stores the result into receiver.

Parameters

v1	First vector in the product.
v2	Second vector in the product.

Definition at line 415 of file floatarray.C.

References at(), FAST_RESIZE, giveSize(), and OOFEM_ERROR.

void oofem::FloatArray::changeComponentOrder ( )

Swaps the fourth and sixth index in the array.

This is to reorder the indices from OOFEM's order to Abaqus' and vice versa.

Definition at line 1055 of file floatarray.C.

References at(), and giveSize().

Referenced by oofem::AbaqusUserMaterial::giveFirstPKStressVector_3d(), and oofem::AbaqusUserMaterial::giveRealStressVector_3d().

void oofem::FloatArray::checkBounds ( int i ) const

Checks size of receiver towards requested bounds.

Current implementation will call exit(1), if dimension mismatch found.

Parameters

i	Required size of receiver.

Definition at line 132 of file floatarray.C.

References giveSize(), and OOFEM_ERROR.

Referenced by isFinite().

void oofem::FloatArray::checkSizeTowards ( const IntArray & loc )

Checks size of receiver towards values stored in loc array.

Expands the receiver if loc points to coefficients beyond the size of receiver.

Parameters

loc	Array with indices.

Definition at line 593 of file floatarray.C.

References giveSize(), oofem::max(), and values.

void oofem::FloatArray::clear ( )

inline

Clears receiver (zero size).

Same effect as resizing to zero, but has a clearer meaning and intent when used.

Definition at line 206 of file floatarray.h.

double oofem::FloatArray::computeNorm ( ) const

Computes the norm (or length) of the vector.

Returns: The Euclidean norm of the vector.

Definition at line 840 of file floatarray.C.

References computeSquaredNorm().

Referenced by oofem::MMALeastSquareProjection::__init(), oofem::ParticleTopologyDescription::addLineSegment(), oofem::ParticleTopologyDescription::checkOverlap(), oofem::MPlasticMaterial::closestPointReturn(), oofem::MPlasticMaterial2::closestPointReturn(), oofem::IntElSurfTr1::computeAreaAround(), oofem::Tr2Shell7XFEM::computeAreaAround(), oofem::Tr2Shell7::computeAreaAround(), oofem::TR1_2D_PFEM::computeCriticalTimeStep(), oofem::ConcreteDPM2::computeDeltaPlasticStrainNormCompression(), oofem::ConcreteDPM2::computeDeltaPlasticStrainNormTension(), oofem::IntMatCoulombContact::computeEngTraction(), oofem::Quasicontinuum::computeIntersectionsOfLinkWith2DTringleElements(), oofem::Quasicontinuum::computeIntersectionsOfLinkWith3DTetrahedraElements(), oofem::BasicGeometry::computeLineDistance(), oofem::MaterialForceEvaluator::computeMaterialForce(), oofem::LIBeam3d2::computeRotMtrx(), oofem::LIBeam3dNL::computeRotMtrx(), oofem::LIBeam3dNL2::computeRotMtrx(), oofem::Line::computeTangentialDistanceToEnd(), oofem::Shell7Base::computeThicknessMappingCoeff(), oofem::ContactElement::ContactElement(), oofem::Shell7Base::edgeComputeLengthAround(), oofem::FEI2dTrQuad::edgeEvaldNds(), oofem::FEI3dTrQuad::edgeGiveTransformationJacobian(), oofem::FEI3dHexaQuad::edgeGiveTransformationJacobian(), oofem::HuertaRemeshingCriteria::estimateMeshDensities(), oofem::TransportGradientPeriodic::findSlaveToMasterMap(), oofem::FEI3dTrLin::giveArea(), oofem::NonlinearMassTransferMaterial::giveCharacteristicMatrix(), oofem::PolylineNonlocalBarrier::giveDistancePointLine(), oofem::ScalarErrorIndicator::giveElementError(), oofem::StructuralMaterial::giveFirstPKStressVector_1d(), oofem::StructuralMaterial::giveFirstPKStressVector_PlaneStress(), oofem::IntMatBilinearCZFagerstromRate::giveFirstPKTraction_3d(), oofem::IntMatBilinearCZFagerstrom::giveFirstPKTraction_3d(), oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d(), oofem::NonlinearMassTransferMaterial::giveFluxVector(), oofem::PlasticMaterial::giveRealStressVector(), oofem::StructuralMaterial::giveRealStressVector_ShellStressControl(), oofem::StructuralMaterial::giveRealStressVector_StressControl(), oofem::FE2FluidMaterial::giveStiffnessMatrices(), oofem::OrthotropicLinearElasticMaterial::giveTensorRotationMatrix(), oofem::FEI3dTetQuad::global2local(), oofem::FEI3dWedgeLin::global2local(), oofem::FEInterpolation2d::global2local(), oofem::FEI3dHexaQuad::global2local(), oofem::Node2NodeContact::instanciateYourself(), oofem::QCFullsolveddomain::isNodeInside(), oofem::ParallelContext::localNorm(), oofem::Tet1_3D_SUPG::LS_PCS_computeF(), oofem::TR21_2D_SUPG::LS_PCS_computeF(), oofem::QClinearStatic::nodeInFullSolvedDomainTest(), oofem::norm(), normalize(), oofem::LevelSetPCS::pcs_stage1(), oofem::ConcreteDPM2::performRegularReturn(), oofem::PLMaterialForce::propagateInterface(), oofem::TriangleMesherInterface::simplifyPSLG(), oofem::StructuralMaterialEvaluator::solveYourself(), oofem::FluidMaterialEvaluator::solveYourself(), oofem::NLTransientTransportProblem::solveYourselfAt(), oofem::FluidStructureProblem::solveYourselfAt(), oofem::StaticStructural::solveYourselfAt(), oofem::SUPG::solveYourselfAt(), oofem::PFEM::solveYourselfAt(), oofem::Quasicontinuum::stiffnessAssignment(), oofem::FEI3dTrLin::surfaceEvalNormal(), oofem::FEI3dTrQuad::surfaceEvalNormal(), oofem::Line::transformIntoPolar(), oofem::TR1_2D_SUPG2_AXI::updateStabilizationCoeffs(), oofem::TR1_2D_SUPG2::updateStabilizationCoeffs(), oofem::TR1_2D_SUPG::updateStabilizationCoeffs(), and oofem::Quad10_2D_SUPG::updateStabilizationCoeffs().

double oofem::FloatArray::computeSquaredNorm ( ) const

Computes the square of the norm.

Returns: Squared norm.

Definition at line 846 of file floatarray.C.

References begin(), and end().

Referenced by oofem::Q27Space::computeLoadLSToLRotationMatrix(), oofem::QSpace::computeLoadLSToLRotationMatrix(), oofem::LSpace::computeLoadLSToLRotationMatrix(), computeNorm(), oofem::PolygonLine::computeNormalSignDist(), oofem::LIBeam3dNL2::computeTempCurv(), oofem::FEI3dLineLin::evaldNdx(), oofem::ParticleTopologyDescription::findDisplacement(), oofem::ParticleTopologyDescription::generatePSLG(), oofem::PolylineNonlocalBarrier::giveDistancePointLine(), oofem::IntMatBilinearCZFagerstromRate::giveFirstPKTraction_3d(), oofem::FEI3dLineLin::global2local(), oofem::Triangle::pointIsInTriangle(), oofem::MKLPardisoSolver::solve(), oofem::PardisoProjectOrgSolver::solve(), oofem::FETISolver::solve(), oofem::NRSolver::solve(), oofem::HuertaErrorEstimator::solveRefinedElementProblem(), oofem::HuertaErrorEstimator::solveRefinedWholeProblem(), oofem::SUPG::solveYourselfAt(), oofem::ParticleTopologyDescription::updateYourself(), oofem::XfemStructuralElementInterface::XfemElementInterface_updateIntegrationRule(), and oofem::ZZErrorEstimatorInterface::ZZErrorEstimatorI_computeElementContributions().

bool oofem::FloatArray::containsOnlyZeroes ( ) const

Returns nonzero if all coefficients of the receiver are 0, else returns zero.

Definition at line 646 of file floatarray.C.

Referenced by oofem::DIIDynamic::assembleDirichletBcRhsVector(), oofem::NonStationaryTransportProblem::assembleDirichletBcRhsVector(), oofem::ConcreteDPM2::compute3dSecantStiffness(), oofem::FRCFCMNL::computeNonlocalStressInFibers(), oofem::HTSelement::computePrescribedDisplacementLoadVectorAt(), oofem::RCM2Material::giveRealPrincipalStressVector3d(), and oofem::CompoDamageMatStatus::printOutputAt().

void oofem::FloatArray::copySubVector	(	const FloatArray &	src,
		int	si
	)

Copy the given vector as sub-vector to receiver.

The sub-vector values will be set to receivers values starting at at positions (si,...,si+src.size). The size of receiver will be adjusted, if necessary.

Parameters

src	Sub-vector to be added
si	Determines the position (receiver's 1-based index) of first src value to be added.

Definition at line 864 of file floatarray.C.

References begin(), end(), giveSize(), and resizeWithValues().

Referenced by oofem::ActiveDof::computeDofTransformation(), oofem::SlaveDof::computeDofTransformation(), oofem::RVEStokesFlow::giveIPValue(), oofem::FluidDynamicMaterial::giveIPValue(), oofem::ActiveDof::giveUnknowns(), and oofem::SlaveDof::giveUnknowns().

double oofem::FloatArray::distance ( const FloatArray & x ) const

Computes the distance between position represented by receiver and position given as parameter.

Parameters

x	Coordinate to calculate distance from.

Definition at line 489 of file floatarray.C.

References distance_square().

double oofem::FloatArray::distance ( const FloatArray * x ) const

inline

See also: distance

Definition at line 391 of file floatarray.h.

References distance().

Referenced by distance().

double oofem::FloatArray::distance	(	const FloatArray &	iP1,
		const FloatArray &	iP2,
		double &	oXi,
		double &	oXiUnbounded
	)		const

Computes distance between the position represented by the reciever and a line segment represented by it's start point iP1 and it's end point iP2.

The local coordinate oXi is in the range [0,1]

Author: Erik Svenning, August 2013.

Definition at line 494 of file floatarray.C.

References distance_square().

double oofem::FloatArray::distance_square	(	const FloatArray &	iP1,
		const FloatArray &	iP2,
		double &	oXi,
		double &	oXiUnbounded
	)		const

Definition at line 499 of file floatarray.C.

References distance_square(), and oofem::dot().

double oofem::FloatArray::distance_square ( const FloatArray & x ) const

Computes the square of distance between position represented by receiver and position given as parameter.

Parameters

x	Coordinate to calculate squared distance from.

Todo:: This isn't a distance to "from"?!

Definition at line 536 of file floatarray.C.

References at(), giveSize(), and oofem::min().

double oofem::FloatArray::dotProduct ( const FloatArray & x ) const

Computes the dot product (or inner product) of receiver and argument.

Parameters

x	Vector to contract to receiver.

Definition at line 463 of file floatarray.C.

References begin(), end(), giveSize(), and OOFEM_ERROR.

double oofem::FloatArray::dotProduct	(	const FloatArray &	x,
		int	size
	)		const

Computes the dot product (or inner product) of receiver and argument.

Parameters

x	Vector to contract to receiver.
size	Number of elements to contract. May not be larger than

Definition at line 476 of file floatarray.C.

References begin(), giveSize(), and OOFEM_ERROR.

std::vector< double >:: iterator oofem::FloatArray::end ( )

inline

Definition at line 92 of file floatarray.h.

Referenced by append(), computeSquaredNorm(), copySubVector(), dotProduct(), product(), oofem::FloatMatrix::setColumn(), sum(), and zero().

std::vector< double >:: const_iterator oofem::FloatArray::end ( ) const

inline

Definition at line 94 of file floatarray.h.

int oofem::FloatArray::giveIndexMaxElem ( void )

Returns index (between 1 and Size) of maximum element in the array.

Definition at line 447 of file floatarray.C.

References giveSize().

Referenced by oofem::Quasicontinuum::computeIntersectionsOfLinkWith2DTringleElements(), oofem::Quasicontinuum::computeIntersectionsOfLinkWith3DTetrahedraElements(), oofem::IsotropicDamageMaterial::giveIPValue(), and oofem::IsotropicDamageMaterial1::initDamaged().

int oofem::FloatArray::giveIndexMinElem ( void )

Returns index (between 1 and Size) of minimum element in the array.

Definition at line 431 of file floatarray.C.

References giveSize().

Referenced by oofem::IsotropicDamageMaterial1::initDamaged().

int oofem::FloatArray::givePackSize ( DataStream & buff ) const

Definition at line 921 of file floatarray.C.

References oofem::DataStream::givePackSizeOfDouble(), oofem::DataStream::givePackSizeOfInt(), and giveSize().

Referenced by oofem::RCSDNLMaterial::estimatePackSize().

const double* oofem::FloatArray::givePointer ( ) const

inline

Gives the pointer to the raw data, breaking encapsulation.

Returns: Pointer to values of array

Definition at line 469 of file floatarray.h.

Referenced by oofem::ParallelContext::accumulate(), add(), oofem::PetscSparseMtrx::addDiagonal(), oofem::FloatMatrix::beInverseOf(), oofem::FloatMatrix::beMatrixFormOfStress(), beProductOf(), beTProductOf(), oofem::IntMatIsoDamageTable::computeDamageParam(), oofem::IsoInterfaceDamageMaterial_2::computeDamageParam(), oofem::FloatMatrix::computeNorm(), oofem::FloatMatrix::computeReciprocalCondition(), oofem::RowColumn::dot(), oofem::AbaqusUserMaterial::giveFirstPKStressVector_3d(), oofem::AbaqusUserElement::giveInternalForcesVector(), oofem::AbaqusUserMaterial::giveRealStressVector_3d(), oofem::FloatMatrix::plusDyadSymmUpper(), oofem::FloatMatrix::plusDyadUnsym(), plusProduct(), oofem::PetscSparseMtrx::scatterL2G(), oofem::MKLPardisoSolver::solve(), oofem::PardisoProjectOrgSolver::solve(), oofem::SuperLUSolver::solve(), oofem::SpoolesSolver::solve(), oofem::FloatMatrix::solveForRhs(), oofem::PetscSparseMtrx::times(), oofem::SpoolesSparseMtrx::times(), oofem::PetscSparseMtrx::timesT(), and oofem::SpoolesSparseMtrx::timesT().

double* oofem::FloatArray::givePointer ( )

inline

Definition at line 470 of file floatarray.h.

References oofem::operator<<().

int oofem::FloatArray::giveSize ( ) const

inline

Returns the size of receiver.

Definition at line 218 of file floatarray.h.

void oofem::FloatArray::hardResize ( int s )

Resizes the size of the receiver to requested bounds.

Memory allocation always happens, more preferably use resize() function instead. Array is zeroed.

Parameters

s New size.

Definition at line 639 of file floatarray.C.

References values.

bool oofem::FloatArray::isEmpty ( ) const

inline

Returns true if receiver is empty.

Definition at line 222 of file floatarray.h.

Referenced by add(), oofem::TR_SHELL01::computeBodyLoadVectorAt(), oofem::HeMoTKMaterial::computeCapacityCoeff(), oofem::HeMoKunzelMaterial::computeCapacityCoeff(), oofem::MazarsMaterial::computeDamageParam(), oofem::MazarsMaterial::computeEquivalentStrain(), oofem::IsotropicDamageMaterial1::computeEquivalentStrain(), oofem::AnisotropicDamageMaterial::computeEquivalentStrain(), oofem::LatticeDamage2d::computeEquivalentStrain(), oofem::IsotropicDamageMaterial1::computeEta(), oofem::Lattice2d_mt::computeInternalSourceRhsVectorAt(), oofem::TransportElement::computeInternalSourceRhsVectorAt(), oofem::J2MPlasticMaterial::computeJ2InvariantAt(), oofem::J2Mat::computeJ2InvariantAt(), oofem::StructuralMaterial::computeStressIndependentStrainVector(), oofem::StructuralMaterial::computeStressIndependentStrainVector_3d(), oofem::HydrationModel::giveCharacteristicValue(), oofem::TR_SHELL02::giveCharacteristicVector(), oofem::TR_SHELL01::giveCharacteristicVector(), oofem::KelvinChainSolidMaterial::giveEigenStrainVector(), oofem::KelvinChainSolidMaterial::giveEModulus(), oofem::HeMoBazNajMaterial::giveFluxVector(), oofem::IsotropicHeatTransferMaterial::giveTemperature(), oofem::SimpleCrossSection::giveTemperatureVector(), oofem::LinearEdgeLoad::initializeFrom(), oofem::HeMoBazNajMaterial::matcond1d(), oofem::HeMoTKMaterial::matcond1d(), oofem::HeMoKunzelMaterial::matcond1d(), oofem::HeMoBazNajMaterial::matcond2d(), oofem::HeMoTKMaterial::matcond2d(), oofem::HeMoKunzelMaterial::matcond2d(), oofem::HeMoBazNajMaterial::matcond3d(), oofem::HeMoTKMaterial::matcond3d(), oofem::HeMoKunzelMaterial::matcond3d(), oofem::NonLinearStatic::packMigratingData(), plusProduct(), subtract(), oofem::B3SolidMaterial::updateEparModuli(), oofem::HydratingHeMoMaterial::updateInternalState(), oofem::HydratingIsoHeatMaterial::updateInternalState(), and oofem::AdaptiveNonLinearStatic::updateYourself().

bool oofem::FloatArray::isFinite ( ) const

Returns true if no element is NAN or infinite.

Definition at line 72 of file floatarray.C.

References at(), checkBounds(), giveSize(), OOFEM_ERROR, operator()(), operator[](), and values.

Referenced by oofem::LSPrimaryVariableMapper::mapPrimaryVariables().

bool oofem::FloatArray::isNotEmpty ( ) const

inline

Returns true if receiver is not empty.

Definition at line 220 of file floatarray.h.

Referenced by oofem::AdaptiveNonLinearStatic::adaptiveRemap(), oofem::EngngModel::assembleVectorFromBC(), oofem::EngngModel::assembleVectorFromDofManagers(), oofem::EngngModel::assembleVectorFromElements(), oofem::MDM::computeDamageOnPlane(), oofem::MPlasticMaterial::computeGradientVector(), oofem::TransportElement::computeInternalSourceRhsVectorAt(), oofem::NodalSpringElement::computeLumpedMassMatrix(), oofem::J2MPlasticMaterial::computeStressGradientVector(), oofem::J2Mat::computeStressGradientVector(), oofem::StructuralMaterial::computeStressIndependentStrainVector(), oofem::StructuralMaterial::computeStressIndependentStrainVector_3d(), oofem::J2MPlasticMaterial::computeYieldValueAt(), oofem::J2Mat::computeYieldValueAt(), oofem::KelvinChainSolidMaterial::giveEigenStrainVector(), oofem::Beam2d::giveEndForcesVector(), oofem::M4Material::giveRealMicroplaneStressVector(), oofem::SimpleCrossSection::giveTemperatureVector(), oofem::LinearStatic::giveUnknownComponent(), oofem::FreeWarping::giveUnknownComponent(), oofem::AdaptiveNonLinearStatic::giveUnknownComponent(), oofem::NonLinearStatic::giveUnknownComponent(), oofem::AdaptiveNonLinearStatic::initializeAdaptiveFrom(), oofem::RheoChainMaterialStatus::printOutputAt(), and oofem::NonLinearStatic::proceedStep().

void oofem::FloatArray::negated ( )

Switches the sign of every coefficient of receiver.

Returns: receiver.

Definition at line 739 of file floatarray.C.

Referenced by oofem::StokesFlowVelocityHomogenization::applyPressureGradient(), oofem::NLTransientTransportProblem::assembleAlgorithmicPartOfRhs(), oofem::NonStationaryTransportProblem::assembleDirichletBcRhsVector(), oofem::PrescribedGradientBCNeumann::assembleVector(), oofem::TransportGradientNeumann::assembleVector(), oofem::MixedGradientPressureWeakPeriodic::assembleVector(), oofem::MixedGradientPressureNeumann::assembleVector(), oofem::TransportElement::computeBoundaryEdgeLoadVector(), oofem::TransportElement::computeBoundarySurfaceLoadVector(), oofem::ContactDefinition::computeContactForces(), oofem::TR1_2D_PFEM::computeCriticalTimeStep(), oofem::Tr1Darcy::computeExternalForcesVector(), oofem::TransportElement::computeFlow(), oofem::PrescribedGradientBCWeak::computeIntForceGPContrib(), oofem::HTSelement::computePrescribedDisplacementLoadVectorAt(), oofem::CBSElement::computePrescribedTermsI(), oofem::J2MPlasticMaterial::computeStressSpaceHardeningVars(), oofem::J2plasticMaterial::ComputeStressSpaceHardeningVars(), oofem::LEPlic::doCellDLS(), oofem::AnisotropicMassTransferMaterial::giveFluxVector(), oofem::PerfectlyPlasticMaterial::giveRealStressVector(), oofem::StructuralMaterial::giveRealStressVector_ShellStressControl(), oofem::StructuralMaterial::giveRealStressVector_StressControl(), oofem::ConcreteDPM::performRegularReturn(), oofem::NonLinearStatic::proceedStep(), oofem::FETISolver::solve(), oofem::StaticStructural::solveYourselfAt(), oofem::LinearStability::solveYourselfAt(), oofem::StokesFlow::solveYourselfAt(), oofem::PFEM::solveYourselfAt(), and oofem::PFEMPressureRhsAssembler::vectorFromElement().

double oofem::FloatArray::normalize ( )

Normalizes receiver.

Euclidean norm is used, after operation receiver will have this norm equal to 1.0.

Returns: modified receiver

Definition at line 828 of file floatarray.C.

References computeNorm(), oofem::norm(), OOFEM_ERROR, and times().

double& oofem::FloatArray::operator() ( int i )

inline

Coefficient access function.

Returns value of coefficient at given position of the receiver. Provides 0-based indexing access.

Parameters

i	Position of coefficient in array.

Definition at line 153 of file floatarray.h.

Referenced by isFinite().

const double& oofem::FloatArray::operator() ( int i ) const

inline

Coefficient access function.

Returns value of coefficient at given position of the receiver. Provides 0-based indexing access.

Parameters

i	Position of coefficient in array.

Definition at line 169 of file floatarray.h.

FloatArray& oofem::FloatArray::operator= ( const FloatArray & src )

inline

Assignment operator.

Definition at line 111 of file floatarray.h.

References values.

FloatArray& oofem::FloatArray::operator= ( FloatArray && src )

inline

Move operator.

Definition at line 113 of file floatarray.h.

FloatArray& oofem::FloatArray::operator= ( std::initializer_list< double > list )

inline

Assignment operator.

Definition at line 115 of file floatarray.h.

FloatArray & oofem::FloatArray::operator= ( const double & val )

Assignment of scalar to all components of receiver.

Definition at line 928 of file floatarray.C.

References begin().

double& oofem::FloatArray::operator[] ( int i )

inline

Definition at line 156 of file floatarray.h.

Referenced by isFinite().

const double& oofem::FloatArray::operator[] ( int i ) const

inline

Definition at line 170 of file floatarray.h.

void oofem::FloatArray::plusProduct	(	const FloatMatrix &	b,
		const FloatArray &	s,
		double	dV
	)

Adds the product $ b^T . s dV $ .

If the receiver's size is zero, it adjusts its size.

Parameters

b	Matrix b in the equation.
s	Array s in the equation.
dV	Scalar dV in the equation.

Definition at line 226 of file floatarray.C.

References at(), oofem::FloatMatrix::at(), oofem::FloatMatrix::giveNumberOfColumns(), oofem::FloatMatrix::giveNumberOfRows(), givePointer(), oofem::FloatMatrix::givePointer(), giveSize(), isEmpty(), OOFEM_ERROR, sum(), and values.

void oofem::FloatArray::power ( const double exponent )

Raise each element to its power.

Parameters

exponent An exponent.

Definition at line 1105 of file floatarray.C.

Referenced by oofem::TransportElement::computeBoundaryEdgeLoadVector(), and oofem::TransportElement::computeBoundarySurfaceLoadVector().

void oofem::FloatArray::printYourself ( ) const

virtual

Print receiver on stdout.

Useful for debugging.

Reimplemented in oofem::StrainVector, and oofem::StressVector.

Definition at line 747 of file floatarray.C.

References giveSize().

Referenced by oofem::ElementErrorCheckingRule::check(), oofem::BeamElementErrorCheckingRule::check(), oofem::MPlasticMaterial2::closestPointReturn(), oofem::Shell7BaseXFEM::computeEnrTractionForce(), oofem::OctreeSpatialLocalizer::giveClosestIP(), oofem::Shell7Base::giveLayerContributionToSR(), oofem::PrescribedGradientBCWeak::giveMirroredPointOnGammaMinus(), oofem::PrescribedGradientBCWeak::giveMirroredPointOnGammaPlus(), oofem::FE2FluidMaterial::giveStiffnessMatrices(), oofem::SolutionbasedShapeFunction::initializeSurfaceData(), oofem::GnuplotExportModule::outputBoundaryCondition(), oofem::GnuplotExportModule::outputGradient(), oofem::PlasticMaterialStatus::printYourself(), oofem::FiberedCrossSection::printYourself(), oofem::LayeredCrossSection::printYourself(), oofem::Shell7BaseXFEM::recoverShearStress(), oofem::GJacobi::solve(), oofem::SubspaceIteration::solve(), oofem::StructuralMaterialEvaluator::solveYourself(), oofem::StaticStructural::solveYourselfAt(), oofem::WeakPeriodicBoundaryCondition::updateDirection(), and oofem::Shell7Base::updateLayerTransvShearStressesSR().

void oofem::FloatArray::printYourself ( const std::string & name ) const

virtual

Print receiver on stdout with custom name.

Parameters

name	Display name of reciever.

Definition at line 759 of file floatarray.C.

References giveSize().

void oofem::FloatArray::printYourselfToFile	(	const std::string	filename,
		const bool	showDimensions = `true`
	)		const

virtual

Print receiver to file.

Parameters

filename	Name of recieving file.
showDimensions	Determins if dimesions should be included in output

Definition at line 770 of file floatarray.C.

References giveSize(), and OOFEM_ERROR.

double oofem::FloatArray::product ( ) const

Computes the product of receiver values.

Returns: Product of receiver.

Definition at line 858 of file floatarray.C.

References begin(), and end().

Referenced by oofem::StokesFlowVelocityHomogenization::giveAreaOfRVE().

void oofem::FloatArray::push_back ( const double & iVal )

inline

Add one element.

Definition at line 118 of file floatarray.h.

Referenced by oofem::PrescribedGradientBCWeak::assembleVector(), oofem::PolygonLine::computeIntersectionPoints(), oofem::Quasicontinuum::computeIntersectionsOfLinkWith2DTringleElements(), oofem::Quasicontinuum::computeIntersectionsOfLinkWith3DTetrahedraElements(), oofem::PrescribedGradientBCWeak::createTractionMesh(), oofem::EnrFrontIntersection::evaluateEnrFuncAt(), oofem::EnrFrontIntersection::evaluateEnrFuncDerivAt(), oofem::PrescribedGradientBCWeak::findPeriodicityCoord(), oofem::ParticleTopologyDescription::generatePSLG(), oofem::QTrPlaneStress2dXFEM::giveCompositeExportData(), oofem::PlaneStress2dXfem::giveCompositeExportData(), oofem::TrPlaneStress2dXFEM::giveCompositeExportData(), oofem::OctreeSpatialLocalizer::giveNodesWithinBox(), oofem::XfemStructuralElementInterface::giveSubtriangulationCompositeExportData(), oofem::Quasicontinuum::intersectionTestSegmentTetrahedra3D(), oofem::Quasicontinuum::intersectionTestSegmentTriangle2D(), oofem::LSPrimaryVariableMapper::mapPrimaryVariables(), oofem::GnuplotExportModule::outputBoundaryCondition(), oofem::GnuplotExportModule::outputInterfaceEl(), oofem::GnuplotExportModule::outputMesh(), oofem::GnuplotExportModule::outputXFEM(), oofem::HuertaErrorEstimatorInterface::setupRefinedElementProblem1D(), and oofem::XfemElementInterface::XfemElementInterface_prepareNodesForDelaunay().

void oofem::FloatArray::pY ( ) const

virtual

Print receiver on stdout with high accuracy.

Definition at line 787 of file floatarray.C.

Referenced by oofem::StructuralMaterial::computePrincipalValues(), oofem::SolutionbasedShapeFunction::giveValueAtPoint(), and oofem::RankineMat::performPlasticityReturn().

void oofem::FloatArray::reserve ( int s )

Allocates enough size to fit s, and clears the array.

Parameters

s	New reserved size.

Definition at line 608 of file floatarray.C.

References values.

Referenced by oofem::Element::computeBoundaryVectorOf(), oofem::Element::computeVectorOf(), and oofem::Element::computeVectorOfPrescribed().

void oofem::FloatArray::resize ( int s )

Resizes receiver towards requested size.

Array is zeroed.

Parameters

s New size.

Todo:: Change to this (faster)

Definition at line 631 of file floatarray.C.

References values.

void oofem::FloatArray::resizeWithValues	(	int	s,
		int	allocChunk = `0`
	)

Checks size of receiver towards requested bounds.

If dimension mismatch, size is adjusted accordingly. Old values are copied over and new space is zeroed.

Parameters

s	New size.
allocChunk	Additional space to allocate.

Definition at line 615 of file floatarray.C.

References OOFEM_FATAL, and values.

Referenced by addSubVector(), oofem::Shell7BaseXFEM::computeEnrichedBmatrixAt(), oofem::IsotropicDamageMaterial1::computeEta(), oofem::GeometryBasedEI::computeIntersectionPoints(), oofem::InterfaceElem1d::computeLocalSlipDir(), oofem::IntElPoint::computeLocalSlipDir(), oofem::Line::computeNumberOfIntersectionPoints(), oofem::FreeWarping::computeResultAtCenterOfGravity(), oofem::PolygonLine::computeTangentialSignDist(), copySubVector(), oofem::PrescribedGradientBCWeak::createTractionMesh(), oofem::Shell7BaseXFEM::edgeComputeEnrichedNmatrixAt(), oofem::Shell7BaseXFEM::EvaluateEnrFuncInDofMan(), oofem::VTKXMLExportModule::exportIntVarsInGpAs(), oofem::VTKXMLExportModule::getCellVariableFromIS(), oofem::VTKXMLExportModule::getNodalVariableFromIS(), oofem::VTKXMLExportModule::getNodalVariableFromXFEMST(), oofem::PrescribedGradient::give(), oofem::Element::giveGlobalIPValue(), oofem::StructuralInterfaceMaterial::giveIPValue(), oofem::TransportMaterial::giveIPValue(), oofem::Shell7BaseXFEM::giveLocalNodeCoordsForExport(), oofem::RCM2Material::giveRealStressVector(), oofem::MPSDamMaterial::giveRealStressVector(), oofem::DofManager::giveUnknownVector(), oofem::DynCompRow::ILUPYourself(), oofem::DynCompRow::insertColInRow(), oofem::DynCompCol::insertRowInColumn(), oofem::GeometryBasedEI::updateLevelSets(), oofem::GeometryBasedEI::updateNodeEnrMarker(), and oofem::XfemElementInterface::XfemElementInterface_prepareNodesForDelaunay().

contextIOResultType oofem::FloatArray::restoreYourself ( DataStream & stream )

Definition at line 895 of file floatarray.C.

References oofem::CIO_IOERR, oofem::CIO_OK, oofem::DataStream::read(), and values.

void oofem::FloatArray::rotatedWith	(	FloatMatrix &	r,
		char	mode
	)

Returns the receiver a rotated according the change-of-base matrix r.

Parameters

r	Rotation matrix.
mode	If mode == 't' the method performs the operation $a = t^{\mathrm{T}} \cdot r$ , else if mode = 'n' then the method performs the operation $a = t \cdot r$ .

Returns: modified receiver.

Definition at line 799 of file floatarray.C.

References beProductOf(), beTProductOf(), and OOFEM_ERROR.

contextIOResultType oofem::FloatArray::storeYourself ( DataStream & stream ) const

Definition at line 872 of file floatarray.C.

References oofem::CIO_IOERR, oofem::CIO_OK, and giveSize().

void oofem::FloatArray::subtract ( const FloatArray & src )

Subtracts array src to receiver.

If the receiver's size is zero, it adjusts its size to size of src array. If recever's size is nonzero and different from src array size an error is generated.

Definition at line 258 of file floatarray.C.

References FAST_RESIZE, giveSize(), isEmpty(), and OOFEM_ERROR.

double oofem::FloatArray::sum ( ) const

Computes the sum of receiver values.

Returns: Sum of receiver.

Definition at line 852 of file floatarray.C.

References begin(), and end().

Referenced by beProductOf(), beTProductOf(), oofem::CylindricalALM::checkConvergence(), oofem::LayeredCrossSection::computeIntegralThick(), plusProduct(), oofem::GaussIntegrationRule::SetUpPointsOn3dDegShellLayers(), oofem::GaussIntegrationRule::SetUpPointsOnCubeLayers(), and oofem::GaussIntegrationRule::SetUpPointsOnWedgeLayers().

void oofem::FloatArray::times ( double s )

Multiplies receiver with scalar.

Parameters

s	Scalar to multiply by.

Definition at line 818 of file floatarray.C.

Referenced by oofem::ParticleTopologyDescription::addLineSegment(), oofem::NLTransientTransportProblem::assembleAlgorithmicPartOfRhs(), oofem::AdaptiveNonLinearStatic::assembleInitialLoadVector(), oofem::PrescribedGradientBCWeak::assembleVector(), oofem::MixedGradientPressureNeumann::assembleVector(), oofem::EngngModel::assembleVectorFromDofManagers(), oofem::Subdivision::RS_Triangle::bisect(), oofem::Subdivision::RS_Tetra::bisect(), oofem::OctreeSpatialLocalizer::buildOctreeDataStructure(), oofem::EnrichmentItem::calcPolarCoord(), oofem::CylindricalALM::checkConvergence(), oofem::IntElLine1PF::computeBd_vectorAt(), oofem::LIBeam2d::computeBodyLoadVectorAt(), oofem::LIBeam2dNL::computeBodyLoadVectorAt(), oofem::LIBeam3d::computeBodyLoadVectorAt(), oofem::LIBeam3dNL2::computeBodyLoadVectorAt(), oofem::LIBeam3dNL::computeBodyLoadVectorAt(), oofem::LIBeam3d2::computeBodyLoadVectorAt(), oofem::Beam2d::computeBodyLoadVectorAt(), oofem::Beam3d::computeBodyLoadVectorAt(), oofem::TransportElement::computeBoundaryEdgeLoadVector(), oofem::TransportElement::computeBoundarySurfaceLoadVector(), oofem::tet21ghostsolid::computeBoundarySurfaceLoadVector(), oofem::PhaseFieldElement::computeBStress_u(), oofem::Eurocode2CreepMaterial::computeCharCoefficients(), oofem::Load::computeComponentArrayAt(), oofem::Node2NodeContactL::computeContactTangent(), oofem::TR1_2D_CBS::computeConvectionTermsI(), oofem::EnrichmentFront::computeCrackTangent(), oofem::ConcreteDPM::computeDCosThetaDStress(), oofem::LatticeDamage2d::computeDeltaDissipation(), oofem::ConcreteDPM2::computeDeltaPlasticStrainNormCompression(), oofem::ConcreteDPM2::computeDeltaPlasticStrainNormTension(), oofem::TrabBone3D::computeDensificationStress(), oofem::TR1_2D_CBS::computeDensityRhsVelocityTerms(), oofem::NonlinearFluidMaterial::computeDeviatoricStressVector(), oofem::TR1_2D_SUPG::computeDiffusionTerm_MB(), oofem::TR1_2D_SUPG2::computeDiffusionTerm_MB(), oofem::TR1_2D_SUPG_AXI::computeDiffusionTerm_MC(), oofem::TR1_2D_SUPG2_AXI::computeDiffusionTerm_MC(), oofem::TR1_2D_CBS::computeDiffusionTermsI(), oofem::ActiveDof::computeDofTransformation(), oofem::SlaveDof::computeDofTransformation(), oofem::ConcreteDPM::computeDRhoDStress(), oofem::ConcreteDPM2::computeDRhoDStress(), oofem::IntMatCoulombContact::computeEngTraction(), oofem::IsotropicDamageMaterial1::computeEta(), oofem::PrescribedGradientBCWeak::computeExtForceElContrib(), oofem::PrescribedGradientBCPeriodic::computeField(), oofem::TransportGradientPeriodic::computeField(), oofem::PrescribedGradient::computeField(), oofem::PrescribedGenStrainShell7::computeField(), oofem::TransportGradientDirichlet::computeField(), oofem::PrescribedGradientBCWeak::computeField(), oofem::MixedGradientPressureDirichlet::computeFields(), oofem::Tr_Warp::computeFirstMomentOfArea(), oofem::IntElPoint::computeGlobalCoordinates(), oofem::KelvinChainSolidMaterial::computeHiddenVars(), oofem::MaxwellChainMaterial::computeHiddenVars(), oofem::KelvinChainMaterial::computeHiddenVars(), oofem::Beam3d::computeInternalForcesFromBodyLoadVectorAtPoint(), oofem::Lattice2d_mt::computeInternalSourceRhsVectorAt(), oofem::HydratingHeMoMaterial::computeInternalSourceVector(), oofem::HydratingIsoHeatMaterial::computeInternalSourceVector(), oofem::VTKXMLExportModule::computeIPAverage(), oofem::XfemStructuralElementInterface::computeIPAverageInTriangle(), oofem::Q27Space::computeLoadLSToLRotationMatrix(), oofem::QSpace::computeLoadLSToLRotationMatrix(), oofem::LSpace::computeLoadLSToLRotationMatrix(), oofem::MITC4Shell::computeLocalBaseVectors(), oofem::MDM::computeLocalDamageTensor(), oofem::MaterialForceEvaluator::computeMaterialForce(), oofem::tet21ghostsolid::computeNumericStiffnessMatrix(), oofem::tet21ghostsolid::computeNumericStiffnessMatrixDebug(), oofem::WeakPeriodicBoundaryCondition::computeOrthogonalBasis(), oofem::TR1_2D_CBS::computePrescribedTractionPressure(), oofem::Shell7Base::computePressureForceAt(), oofem::StokesFlowVelocityHomogenization::computeSeepage(), oofem::PhaseFieldElement::computeStiffnessMatrix_ud(), oofem::StructuralMaterial::computeStressIndependentStrainVector(), oofem::StructuralMaterial::computeStressIndependentStrainVector_3d(), oofem::MixedGradientPressureDirichlet::computeTangents(), oofem::MixedGradientPressureNeumann::computeTangents(), oofem::LIBeam3dNL::computeTempCurv(), oofem::LIBeam3dNL2::computeTempCurv(), oofem::InteractionLoad::computeValueAt(), oofem::ConstantPressureLoad::computeValueAt(), oofem::GravityPressure::computeValueAt(), oofem::NeumannMomentLoad::computeValueAt(), oofem::PointLoad::computeValueAt(), oofem::BoundaryLoad::computeValueAt(), oofem::NeumannMomentLoad::computeXbar(), oofem::TransportGradientDirichlet::computeXi(), oofem::TrabBone3D::constructDerivativeOfPlasFlowDirec(), oofem::TrabBone3D::constructPlasFlowDirec(), oofem::ContactElement::ContactElement(), oofem::CrackExportModule::doOutput(), oofem::HOMExportModule::doOutput(), oofem::MatlabExportModule::doOutputHomogenizeDofIDs(), oofem::TR_SHELL02::drawScalar(), oofem::TR_SHELL01::drawScalar(), oofem::LSpace::drawTriad(), oofem::FEI2dTrQuad::edgeEvaldNds(), oofem::FEI2dLineLin::edgeEvaldNds(), oofem::FEI2dLineQuad::edgeEvaldNds(), oofem::Shell7BaseXFEM::edgeGiveUpdatedSolutionVector(), oofem::VTKExportModule::exportCellVars(), oofem::PrescribedGradient::give(), oofem::MisesMat::give3dLSMaterialStiffnessMatrix(), oofem::StructuralPythonMaterial::give3dMaterialStiffnessMatrix(), oofem::AbaqusUserMaterial::give3dMaterialStiffnessMatrix(), oofem::StructuralPythonMaterial::give3dMaterialStiffnessMatrix_dPdF(), oofem::AbaqusUserMaterial::give3dMaterialStiffnessMatrix_dPdF(), oofem::PolygonLine::giveBoundingSphere(), oofem::IsotropicDamageMaterialStatus::giveCrackVector(), oofem::MPSDamMaterialStatus::giveCrackVector(), oofem::PolylineNonlocalBarrier::giveDistancePointLine(), oofem::MaxwellChainMaterial::giveEigenStrainVector(), oofem::B3SolidMaterial::giveEigenStrainVector(), oofem::MPSMaterial::giveEigenStrainVector(), oofem::TR1_2D_CBS::giveElementCenter(), oofem::TR1_2D_SUPG2_AXI::giveElementCenter(), oofem::TR1_2D_SUPG2::giveElementCenter(), oofem::TR1_2D_SUPG::giveElementCenter(), oofem::SimpleInterfaceMaterial::giveEngTraction_3d(), oofem::PrescribedMean::giveExternalForcesVector(), oofem::WeakPeriodicBoundaryCondition::giveExternalForcesVector(), oofem::Shell7BaseXFEM::giveFailedInterfaceNumber(), oofem::MisesMat::giveFirstPKStressVector_3d(), oofem::IntMatBilinearCZFagerstromRate::giveFirstPKTraction_3d(), oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d(), oofem::PrescribedMean::giveInternalForcesVector(), oofem::IntElLine1IntPen::giveInternalForcesVector(), oofem::IntElLine2IntPen::giveInternalForcesVector(), oofem::Beam3d::giveInternalForcesVectorAtPoint(), oofem::tet21ghostsolid::giveInternalForcesVectorGivenSolution(), oofem::tet21ghostsolid::giveInternalForcesVectorGivenSolutionDebug(), oofem::TwoFluidMaterial::giveIPValue(), oofem::IsotropicDamageMaterial::givePlaneStressStiffMtrx(), oofem::RCSDNLMaterial::giveRealStressVector(), oofem::RCSDEMaterial::giveRealStressVector(), oofem::PerfectlyPlasticMaterial::giveRealStressVector(), oofem::RCSDMaterial::giveRealStressVector(), oofem::PlasticMaterial::giveRealStressVector(), oofem::MPlasticMaterial2::giveRealStressVector(), oofem::FCMMaterial::giveRealStressVector(), oofem::MPSDamMaterial::giveRealStressVector(), oofem::MisesMat::giveRealStressVector_1d(), oofem::ConcreteDPM2::giveRealStressVector_1d(), oofem::MicroplaneMaterial_Bazant::giveRealStressVector_3d(), oofem::M1Material::giveRealStressVector_3d(), oofem::MisesMat::giveRealStressVector_3d(), oofem::ConcreteDPM::giveRealStressVector_3d(), oofem::ConcreteDPM2::giveRealStressVector_3d(), oofem::LinearElasticMaterial::giveRealStressVector_Warping(), oofem::DruckerPragerPlasticitySM::giveRegAlgorithmicStiffMatrix(), oofem::FE2FluidMaterial::giveStiffnessMatrices(), oofem::PerfectlyPlasticMaterial::GiveStressCorrectionBackToYieldSurface(), oofem::XfemStructuralElementInterface::giveSubtriangulationCompositeExportData(), oofem::PrescribedGradientBCWeak::giveTraction(), oofem::Homogenize::herveZaoui(), oofem::FRCFCM::initializeFrom(), oofem::Node::initializeFrom(), oofem::NURBSInterpolation::local2global(), oofem::TSplineInterpolation::local2global(), oofem::Q9PlaneStress2d::NodalAveragingRecoveryMI_computeNodalValue(), oofem::QPlaneStress2d::NodalAveragingRecoveryMI_computeNodalValue(), oofem::Shell7Base::NodalAveragingRecoveryMI_computeNodalValue(), normalize(), oofem::operator*=(), oofem::GnuplotExportModule::outputGradient(), oofem::MisesMat::performPlasticityReturn(), oofem::ConcreteDPM2::performPlasticityReturn(), oofem::DruckerPragerPlasticitySM::performRegularReturn(), oofem::DustMaterial::performStressReturn(), oofem::ConcreteDPM2Status::printOutputAt(), oofem::TrabBone3D::projectOnYieldSurface(), oofem::PLPrincipalStrain::propagateInterface(), oofem::PLMaterialForce::propagateInterface(), oofem::ConcreteDPMStatus::restoreConsistency(), oofem::TransportGradientNeumann::scale(), oofem::UserDefDirichletBC::scale(), oofem::BoundaryCondition::scale(), oofem::TransportGradientDirichlet::scale(), oofem::MixedGradientPressureDirichlet::scale(), oofem::MixedGradientPressureNeumann::scale(), oofem::Load::scale(), oofem::TriangleMesherInterface::simplifyPSLG(), oofem::Subdivision::smoothMesh(), oofem::LineSearchNM::solve(), oofem::NRSolver::solve(), oofem::CylindricalALM::solve(), oofem::DEIDynamic::solveYourselfAt(), oofem::NonStationaryTransportProblem::solveYourselfAt(), oofem::PFEM::solveYourselfAt(), oofem::CBS::solveYourselfAt(), oofem::XfemStructureManager::splitCracks(), oofem::Quasicontinuum::stiffnessAssignment(), oofem::FEI3dTrLin::surfaceEvalNormal(), oofem::FEI3dTrQuad::surfaceEvalNormal(), oofem::DynCompRow::times(), oofem::DynCompCol::times(), oofem::SymCompCol::times(), oofem::CompCol::times(), oofem::Subdivision::unpackSharedIrregulars(), oofem::TransientTransportProblem::updateComponent(), oofem::HydratingHeMoMaterial::updateInternalState(), oofem::HydratingIsoHeatMaterial::updateInternalState(), oofem::Tet1_3D_SUPG::updateStabilizationCoeffs(), oofem::TR1_2D_SUPG_AXI::updateStabilizationCoeffs(), oofem::TR1_2D_SUPG2_AXI::updateStabilizationCoeffs(), oofem::TR1_2D_SUPG2::updateStabilizationCoeffs(), oofem::TR1_2D_SUPG::updateStabilizationCoeffs(), and oofem::PFEMCorrectionRhsAssembler::vectorFromElement().

void oofem::FloatArray::zero ( )

Zeroes all coefficients of receiver.

Definition at line 658 of file floatarray.C.

References begin(), and end().

Friends And Related Function Documentation

friend class FloatMatrix

friend

Definition at line 509 of file floatarray.h.

std :: ostream& operator<<	(	std::ostream &	out,
		const FloatArray &	x
	)

friend

Definition at line 1079 of file floatarray.C.

Member Data Documentation

std::vector< double > oofem::FloatArray::values

protected

Stored values.

Definition at line 86 of file floatarray.h.

Referenced by append(), oofem::StressVector::applyDeviatoricElasticCompliance(), oofem::StrainVector::applyDeviatoricElasticStiffness(), oofem::StressVector::applyElasticCompliance(), oofem::StrainVector::applyElasticStiffness(), beDifferenceOf(), checkSizeTowards(), oofem::StressVector::computeFirstInvariant(), oofem::StressVector::computeSecondInvariant(), oofem::StrainVector::computeStrainNorm(), oofem::StressVector::computeStressNorm(), oofem::StressVector::computeThirdInvariant(), oofem::StrainVector::computeVolumeChange(), oofem::FloatMatrix::FloatMatrix(), hardResize(), oofem::FloatMatrix::initFromVector(), isFinite(), oofem::StressStrainBaseVector::operator=(), operator=(), plusProduct(), oofem::StrainVector::printYourself(), reserve(), resize(), resizeWithValues(), and restoreYourself().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
