Represents VTK (Visualization Toolkit) export module. More...

#include <vtkxmlexportmodule.h>

Inheritance diagram for oofem::VTKXMLExportModule:

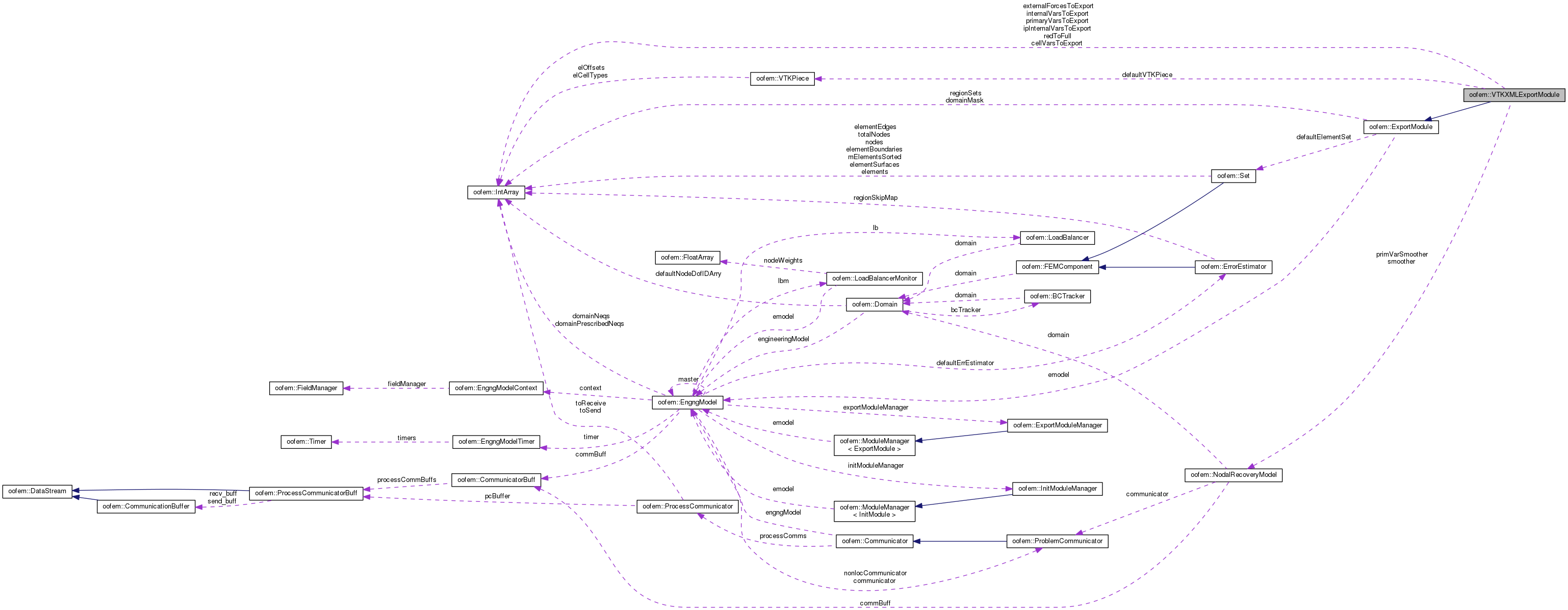

Collaboration diagram for oofem::VTKXMLExportModule:

Public Member Functions
	VTKXMLExportModule (int n, EngngModel *e)
	Constructor. Creates empty Output Manager. By default all components are selected. More...

virtual	~VTKXMLExportModule ()
	Destructor. More...

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

virtual void	doOutput (TimeStep *tStep, bool forcedOutput=false)
	Writes the output. More...

virtual void	initialize ()

virtual void	terminate ()
	Terminates the receiver. More...

virtual const char *	giveClassName () const
	Returns class name of the receiver. More...

void	exportPointDataHeader (FILE fileStream, TimeStep tStep)
	Prints point data header. More...

void	giveDataHeaders (std::string &pointHeader, std::string &cellHeader)

NodalRecoveryModel *	giveSmoother ()
	Returns the internal smoother. More...

NodalRecoveryModel *	givePrimVarSmoother ()
	Returns the smoother for primary variables (nodal averaging). More...

Public Member Functions inherited from oofem::ExportModule
	ExportModule (int n, EngngModel *e)
	Constructor. Creates empty Output Manager with number n. More...

virtual	~ExportModule ()
	Destructor. More...

void	doForcedOutput (TimeStep *tStep)
	Writes the output. More...

bool	testSubStepOutput ()
	Initializes receiver. More...

virtual void	initializeElementSet ()
	Fill regionSets with all elements if regionSets is initially empty. More...

Static Public Member Functions
static void	computeIPAverage (FloatArray &answer, IntegrationRule iRule, Element elem, InternalStateType isType, TimeStep *tStep)
	Computes a cell average of an InternalStateType varible based on the weights in the integrationpoints (=> volume/area/length average) More...

Public Attributes
FILE *	fileStream

VTKPiece	defaultVTKPiece

std::vector< VTKPiece >	defaultVTKPieces

Protected Member Functions
std::string	giveOutputFileName (TimeStep *tStep)
	Returns the filename for the given time step. More...

FILE *	giveOutputStream (TimeStep *tStep)
	Returns the output stream for given solution step. More...

int	giveCellType (Element *element)
	Returns corresponding element cell_type. More...

int	giveNumberOfNodesPerCell (int cellType)
	Returns number of nodes corresponding to cell type. More...

void	giveElementCell (IntArray &answer, Element *elem)
	Returns the element cell geometry. More...

void	exportIntVars (VTKPiece &piece, IntArray &mapG2L, IntArray &mapL2G, int ireg, TimeStep *tStep)
	Export internal variables by smoothing. More...

void	exportPrimaryVars (VTKPiece &piece, IntArray &mapG2L, IntArray &mapL2G, int region, TimeStep *tStep)
	Export primary variables. More...

void	exportExternalForces (VTKPiece &piece, IntArray &mapG2L, IntArray &mapL2G, int region, TimeStep *tStep)
	Export external forces. More...

void	getNodalVariableFromPrimaryField (FloatArray &answer, DofManager dman, TimeStep tStep, UnknownType type, int ireg)

virtual void	setupVTKPiece (VTKPiece &vtkPiece, TimeStep *tStep, int region)

void	writeIntVars (VTKPiece &vtkPiece)

void	writeXFEMVars (VTKPiece &vtkPiece)

void	writePrimaryVars (VTKPiece &vtkPiece)

void	writeCellVars (VTKPiece &vtkPiece)

void	writeExternalForces (VTKPiece &vtkPiece)

bool	writeVTKPiece (VTKPiece &vtkPiece, TimeStep *tStep)

void	exportXFEMVarAs (XFEMStateType xfemstype, IntArray &mapG2L, IntArray &mapL2G, int regionDofMans, int ireg, TimeStep tStep, EnrichmentItem ei)

void	getNodalVariableFromIS (FloatArray &answer, Node node, TimeStep tStep, InternalStateType type, int ireg)

void	getNodalVariableFromXFEMST (FloatArray &answer, Node node, TimeStep tStep, XFEMStateType xfemstype, int ireg, EnrichmentItem *ei)

void	exportCellVars (VTKPiece &piece, const IntArray &elems, TimeStep *tStep)

void	getCellVariableFromIS (FloatArray &answer, Element el, InternalStateType type, TimeStep tStep)

void	exportIntVarsInGpAs (IntArray valIDs, TimeStep *tStep)
	Exports given internal variables directly in integration points (raw data, no smoothing) More...

virtual int	initRegionNodeNumbering (IntArray &mapG2L, IntArray &mapL2G, int &regionDofMans, int &totalcells, Domain domain, TimeStep tStep, int reg)
	Assembles the region node map. More...

void	writeVTKCollection ()
	Writes a VTK collection file where time step data is stored. More...

void	writeGPVTKCollection ()
	Writes a VTK collection file for Gauss points. More...

void	writeVTKPointData (FloatArray &valueArray)

void	writeVTKCellData (FloatArray &valueArray)

bool	isElementComposite (Element *elem)

void	exportCompositeElement (VTKPiece &vtkPiece, Element el, TimeStep tStep)
	Returns true if element geometry type is composite (not a single cell). More...

void	exportCompositeElement (std::vector< VTKPiece > &vtkPieces, Element el, TimeStep tStep)

Protected Member Functions inherited from oofem::ExportModule
int	giveNumberOfRegions ()
	Returns number of regions (aka regionSets) More...

Set *	giveRegionSet (int i)
	Returns element set. More...

std::string	giveOutputBaseFileName (TimeStep *tStep)
	Gives the appropriate name (minus specific file extension). More...

bool	testTimeStepOutput (TimeStep *tStep)
	Tests if given time step output is required. More...

bool	testDomainOutput (int n)
	Test if domain output is required. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Static Protected Member Functions
static void	makeFullTensorForm (FloatArray &answer, const FloatArray &reducedForm, InternalStateValueType vtype)
	Gives the full form of given symmetrically stored tensors, missing components are filled with zeros. More...

Protected Attributes
IntArray	internalVarsToExport
	List of InternalStateType values, identifying the selected vars for export. More...

IntArray	primaryVarsToExport
	List of primary unknowns to export. More...

IntArray	externalForcesToExport
	List of primary unknowns to export. More...

IntArray	cellVarsToExport
	List of cell data to export. More...

IntArray	ipInternalVarsToExport
	List of internal variables to export directly in Integration Points (no smoothing to nodes) More...

NodalRecoveryModel::NodalRecoveryModelType	stype
	Smoother type. More...

NodalRecoveryModel *	smoother
	Smoother. More...

NodalRecoveryModel *	primVarSmoother
	Smoother for primary variables. More...

bool	particleExportFlag
	particle export flag More...

std::list< std::string >	pvdBuffer
	Buffer for earlier time steps exported to *.pvd file. More...

std::list< std::string >	gpPvdBuffer
	Buffer for earlier time steps with gauss points exported to *.gp.pvd file. More...

Protected Attributes inherited from oofem::ExportModule
int	number
	Component number. More...

EngngModel *	emodel
	Problem pointer. More...

bool	tstep_all_out_flag
	Indicates all steps selection. More...

int	tstep_step_out
	User timeStep Output step. Indicates every tstep_step_out-th step selected. More...

std::list< Range >	tsteps_out
	List of user selected step numbers. More...

bool	tstep_substeps_out_flag
	Flag turning output in solution step substeps/itarations. More...

bool	domain_all_flag
	Indicates all domains. More...

IntArray	domainMask
	Domain selection mask. More...

IntArray	regionSets
	regions represented by sets More...

double	timeScale
	Scaling time in output, e.g. conversion from seconds to hours. More...

Set	defaultElementSet
	Default region set. More...

Static Protected Attributes
static IntArray	redToFull
	Map from Voigt to full tensor. More...

Detailed Description

Represents VTK (Visualization Toolkit) export module.

It uses VTK (.vtu) file format, Unstructured grid dataset. The export of data is done on Region By Region basis, possibly taking care about possible nonsmooth character of some internal variables at region boundaries. Each region is usually exported as a single piece. When region contains composite cells, these are assumed to be exported in individual subsequent pieces after the default one for the particular region.

Definition at line 144 of file vtkxmlexportmodule.h.

Constructor & Destructor Documentation

oofem::VTKXMLExportModule::VTKXMLExportModule	(	int	n,
		EngngModel *	e
	)

Constructor. Creates empty Output Manager. By default all components are selected.

Definition at line 81 of file vtkxmlexportmodule.C.

References primVarSmoother, and smoother.

oofem::VTKXMLExportModule::~VTKXMLExportModule ( )

virtual

Destructor.

Definition at line 88 of file vtkxmlexportmodule.C.

References primVarSmoother, and smoother.

Member Function Documentation

void oofem::VTKXMLExportModule::computeIPAverage	(	FloatArray &	answer,
		IntegrationRule *	iRule,
		Element *	elem,
		InternalStateType	isType,
		TimeStep *	tStep
	)

static

Computes a cell average of an InternalStateType varible based on the weights in the integrationpoints (=> volume/area/length average)

Definition at line 1895 of file vtkxmlexportmodule.C.

References oofem::FloatArray::add(), oofem::FloatArray::clear(), oofem::Element::giveIPValue(), and oofem::FloatArray::times().

Referenced by getCellVariableFromIS(), oofem::QTrPlaneStress2dXFEM::giveCompositeExportData(), oofem::PlaneStress2dXfem::giveCompositeExportData(), oofem::TrPlaneStress2dXFEM::giveCompositeExportData(), oofem::Shell7BaseXFEM::giveCZExportData(), oofem::Shell7BaseXFEM::giveShellExportData(), oofem::Shell7Base::giveShellExportData(), and oofem::XfemStructuralElementInterface::giveSubtriangulationCompositeExportData().

void oofem::VTKXMLExportModule::doOutput	(	TimeStep *	tStep,
		bool	forcedOutput = `false`
	)

virtual

Writes the output.

Abstract service.

Parameters

tStep	Time step.
forcedOutput	If true, no testTimeStepOutput should be done.

Todo:: Should use probably use PVTU-files instead. It is starting to get messy.

Implements oofem::ExportModule.

Definition at line 338 of file vtkxmlexportmodule.C.

void oofem::VTKXMLExportModule::exportCellVars	(	VTKPiece &	piece,
		const IntArray &	elems,
		TimeStep *	tStep
	)

protected

Todo:: should be a pointer to an element in the region /JB

Definition at line 1751 of file vtkxmlexportmodule.C.

References oofem::IntArray::at(), cellVarsToExport, oofem::Element_local, oofem::ExportModule::emodel, getCellVariableFromIS(), oofem::EngngModel::giveDomain(), oofem::Domain::giveElement(), oofem::Element::giveParallelMode(), oofem::IntArray::giveSize(), oofem::VTKPiece::setCellVar(), and oofem::VTKPiece::setNumberOfCellVarsToExport().

Referenced by oofem::QuasicontinuumVTKXMLExportModule::setupVTKPiece(), and setupVTKPiece().

void oofem::VTKXMLExportModule::exportCompositeElement	(	VTKPiece &	vtkPiece,
		Element *	el,
		TimeStep *	tStep
	)

protected

Returns true if element geometry type is composite (not a single cell).

Definition at line 1980 of file vtkxmlexportmodule.C.

References cellVarsToExport, oofem::VTKXMLExportModuleElementInterface::giveCompositeExportData(), oofem::FEMComponent::giveInterface(), internalVarsToExport, primaryVarsToExport, and oofem::VTKXMLExportModuleElementInterfaceType.

Referenced by doOutput().

void oofem::VTKXMLExportModule::exportCompositeElement	(	std::vector< VTKPiece > &	vtkPieces,
		Element *	el,
		TimeStep *	tStep
	)

protected

Definition at line 1991 of file vtkxmlexportmodule.C.

References cellVarsToExport, oofem::VTKXMLExportModuleElementInterface::giveCompositeExportData(), oofem::FEMComponent::giveInterface(), internalVarsToExport, primaryVarsToExport, and oofem::VTKXMLExportModuleElementInterfaceType.

void oofem::VTKXMLExportModule::exportExternalForces	(	VTKPiece &	piece,
		IntArray &	mapG2L,
		IntArray &	mapL2G,
		int	region,
		TimeStep *	tStep
	)

protected

Export external forces.

Todo:: Add a more flexible solution here, ask the Engineering model for the equivalent to this (perhaps as part of the primary field?) This should be looked into, just as "getNodalVariableFromPrimaryField" is particularly complicated.

Todo:: Have some mapping for UnknownType -> DofID array

Todo:: Have to make more assumptions here.. we shouldn't assume EModelDefaultEquationNumbering. Do something nicer than extForces and extForcesP instead.

Definition at line 1647 of file vtkxmlexportmodule.C.

References oofem::EngngModel::assembleVector(), oofem::IntArray::at(), oofem::FloatArray::at(), oofem::NodalRecoveryModel::clear(), oofem::ExportModule::emodel, externalForcesToExport, oofem::DofManager::giveDofWithID(), oofem::EngngModel::giveDomain(), oofem::Dof::giveEquationNumber(), oofem::Domain::giveNode(), oofem::EngngModel::giveNumberOfDomainEquations(), givePrimVarSmoother(), oofem::IntArray::giveSize(), OOFEM_WARNING, oofem::VTKPiece::setLoadInNode(), and oofem::VTKPiece::setNumberOfLoadsToExport().

Referenced by oofem::QuasicontinuumVTKXMLExportModule::setupVTKPiece(), and setupVTKPiece().

void oofem::VTKXMLExportModule::exportIntVars	(	VTKPiece &	piece,
		IntArray &	mapG2L,
		IntArray &	mapL2G,
		int	ireg,
		TimeStep *	tStep
	)

protected

Export internal variables by smoothing.

Definition at line 1019 of file vtkxmlexportmodule.C.

References oofem::IntArray::at(), oofem::NodalRecoveryModel::clear(), oofem::ExportModule::emodel, getNodalVariableFromIS(), getNodalVariableFromXFEMST(), oofem::EngngModel::giveDomain(), oofem::XfemManager::giveEnrichmentItem(), oofem::Domain::giveNode(), oofem::XfemManager::giveNumberOfEnrichmentItems(), oofem::IntArray::giveSize(), giveSmoother(), oofem::Domain::giveXfemManager(), oofem::Domain::hasXfemManager(), internalVarsToExport, oofem::VTKPiece::setInternalVarInNode(), oofem::VTKPiece::setInternalXFEMVarInNode(), oofem::VTKPiece::setNumberOfInternalVarsToExport(), oofem::VTKPiece::setNumberOfInternalXFEMVarsToExport(), and oofem::XfemManager::vtkExportFields.

Referenced by oofem::QuasicontinuumVTKXMLExportModule::setupVTKPiece(), and setupVTKPiece().

void oofem::VTKXMLExportModule::exportIntVarsInGpAs	(	IntArray	valIDs,
		TimeStep *	tStep
	)

protected

Exports given internal variables directly in integration points (raw data, no smoothing)

Parameters

valIDs	the UnknownType values identifying the internal variables to export
tStep	solution step

Definition at line 2046 of file vtkxmlexportmodule.C.

References oofem::__InternalStateTypeToString(), oofem::IntArray::at(), oofem::Element::computeGlobalCoordinates(), oofem::ExportModule::emodel, gc, oofem::Element::giveDefaultIntegrationRulePtr(), oofem::EngngModel::giveDomain(), oofem::Domain::giveElement(), oofem::Set::giveElementList(), oofem::giveInternalStateValueType(), oofem::Element::giveIPValue(), oofem::ExportModule::giveNumberOfRegions(), oofem::ExportModule::giveOutputBaseFileName(), oofem::ExportModule::giveRegionSet(), oofem::IntArray::giveSize(), oofem::ISVT_SCALAR, oofem::ISVT_TENSOR_G, oofem::ISVT_TENSOR_S3, oofem::ISVT_TENSOR_S3E, oofem::ISVT_VECTOR, makeFullTensorForm(), OOFEM_ERROR, OOFEM_WARNING, and oofem::FloatArray::resizeWithValues().

Referenced by doOutput().

void oofem::VTKXMLExportModule::exportPointDataHeader	(	FILE *	fileStream,
		TimeStep *	tStep
	)

Prints point data header.

void oofem::VTKXMLExportModule::exportPrimaryVars	(	VTKPiece &	piece,
		IntArray &	mapG2L,
		IntArray &	mapL2G,
		int	region,
		TimeStep *	tStep
	)

protected

Export primary variables.

Definition at line 1437 of file vtkxmlexportmodule.C.

References oofem::IntArray::at(), oofem::NodalRecoveryModel::clear(), oofem::ExportModule::emodel, getNodalVariableFromPrimaryField(), oofem::EngngModel::giveDomain(), oofem::Domain::giveNode(), givePrimVarSmoother(), oofem::IntArray::giveSize(), primaryVarsToExport, oofem::VTKPiece::setNumberOfPrimaryVarsToExport(), and oofem::VTKPiece::setPrimaryVarInNode().

Referenced by oofem::QuasicontinuumVTKXMLExportModule::setupVTKPiece(), and setupVTKPiece().

void oofem::VTKXMLExportModule::exportXFEMVarAs	(	XFEMStateType	xfemstype,
		IntArray &	mapG2L,
		IntArray &	mapL2G,
		int	regionDofMans,
		int	ireg,
		TimeStep *	tStep,
		EnrichmentItem *	ei
	)

protected

void oofem::VTKXMLExportModule::getCellVariableFromIS	(	FloatArray &	answer,
		Element *	el,
		InternalStateType	type,
		TimeStep *	tStep
	)

protected

Todo:: This case seems redundant, remove? /JB, /// Why this special treatment for pressure? / Mikael

Todo:: Is this part necessary now when giveIPValue returns full form? Only need to symmetrize in case of 6 components /JB

Todo:: Some material models aren't exporting values correctly (yet) / Mikael

Definition at line 1774 of file vtkxmlexportmodule.C.

References oofem::FloatArray::at(), oofem::FloatArray::beColumnOf(), oofem::FloatMatrix::beUnitMatrix(), computeIPAverage(), oofem::Element::giveCrossSection(), oofem::Element::giveDefaultIntegrationRulePtr(), oofem::giveInternalStateTypeSize(), oofem::giveInternalStateValueType(), oofem::Element::giveLocalCoordinateSystem(), oofem::Element::giveMaterial(), oofem::FEMComponent::giveNumber(), oofem::Element::giveNumberOfInternalDofManagers(), oofem::FloatArray::giveSize(), oofem::ISVT_TENSOR_G, oofem::ISVT_TENSOR_S3, oofem::ISVT_TENSOR_S3E, oofem::ISVT_VECTOR, makeFullTensorForm(), oofem::FloatArray::resize(), oofem::FloatMatrix::resize(), and oofem::FloatArray::resizeWithValues().

Referenced by exportCellVars().

void oofem::VTKXMLExportModule::getNodalVariableFromIS	(	FloatArray &	answer,
		Node *	node,
		TimeStep *	tStep,
		InternalStateType	type,
		int	ireg
	)

protected

Todo:: Why does this code exists here? DisplacementVector isn't a internal variable. And if its really desired, then why the special treatment for just displacements?

Todo:: Is this for elements which does not use displacements as primary variables but e.g. the placement x? Move to exportPrimaryVar? /JB

Definition at line 1061 of file vtkxmlexportmodule.C.

References oofem::FloatArray::at(), oofem::ExportModule::emodel, oofem::Node::giveCoordinate(), oofem::giveInternalStateTypeSize(), oofem::giveInternalStateValueType(), oofem::EngngModel::giveMaterialInterface(), oofem::MaterialInterface::giveNodalScalarRepresentation(), oofem::NodalRecoveryModel::giveNodalVector(), oofem::FEMComponent::giveNumber(), oofem::ExportModule::giveRegionSet(), oofem::IntArray::giveSize(), oofem::FloatArray::giveSize(), giveSmoother(), oofem::Node::giveUpdatedCoordinate(), oofem::ISVT_SCALAR, oofem::ISVT_TENSOR_G, oofem::ISVT_TENSOR_S3, oofem::ISVT_TENSOR_S3E, oofem::ISVT_VECTOR, makeFullTensorForm(), OOFEM_ERROR, oofem::NodalRecoveryModel::recoverValues(), oofem::FloatArray::resize(), oofem::FloatArray::resizeWithValues(), and smoother.

Referenced by exportIntVars().

void oofem::VTKXMLExportModule::getNodalVariableFromPrimaryField	(	FloatArray &	answer,
		DofManager *	dman,
		TimeStep *	tStep,
		UnknownType	type,
		int	ireg
	)

protected

Todo:: This method needs to be cleaned up - maybe define the common vector types so certain dofid's are associated with them /JB

Todo:: in general, shouldn't this apply for 2nd order tensors as well? /JB

Definition at line 1458 of file vtkxmlexportmodule.C.

References oofem::__UnknownTypeToString(), oofem::IntArray::at(), oofem::FloatArray::at(), oofem::IntArray::clear(), oofem::IntArray::followedBy(), oofem::DofManager::giveDofWithID(), oofem::giveInternalStateValueType(), oofem::Node::giveLocalCoordinateTriplet(), oofem::NodalRecoveryModel::giveNodalVector(), oofem::FEMComponent::giveNumber(), givePrimVarSmoother(), oofem::ExportModule::giveRegionSet(), oofem::IntArray::giveSize(), oofem::FloatArray::giveSize(), oofem::Dof::giveUnknown(), oofem::DofManager::hasDofID(), oofem::Node::hasLocalCS(), oofem::ISVT_VECTOR, OOFEM_ERROR, OOFEM_WARNING, oofem::NodalRecoveryModel::recoverValues(), oofem::FloatArray::resize(), oofem::FloatArray::rotatedWith(), and oofem::FloatArray::zero().

Referenced by exportPrimaryVars().

void oofem::VTKXMLExportModule::getNodalVariableFromXFEMST	(	FloatArray &	answer,
		Node *	node,
		TimeStep *	tStep,
		XFEMStateType	xfemstype,
		int	ireg,
		EnrichmentItem *	ei
	)

protected

Todo:: duplicated code from getNodalVariableFromIS - uneccessary

Definition at line 1124 of file vtkxmlexportmodule.C.

References oofem::FloatArray::at(), oofem::ExportModule::emodel, oofem::EnrichmentItem::evalLevelSetNormalInNode(), oofem::EnrichmentItem::evalLevelSetTangInNode(), oofem::EnrichmentItem::evalNodeEnrMarkerInNode(), oofem::Node::giveCoordinates(), oofem::EngngModel::giveDomain(), oofem::giveInternalStateTypeSize(), oofem::FEMComponent::giveNumber(), oofem::FloatArray::giveSize(), oofem::Domain::giveXfemManager(), oofem::XfemManager::giveXFEMStateValueType(), oofem::ISVT_SCALAR, oofem::ISVT_TENSOR_G, oofem::ISVT_TENSOR_S3, oofem::ISVT_TENSOR_S3E, oofem::ISVT_VECTOR, makeFullTensorForm(), OOFEM_ERROR, oofem::FloatArray::resize(), and oofem::FloatArray::resizeWithValues().

Referenced by exportIntVars().

int oofem::VTKXMLExportModule::giveCellType ( Element * element )

protected

Returns corresponding element cell_type.

Some common element types are supported, others can be supported via interface concept.

Definition at line 185 of file vtkxmlexportmodule.C.

References oofem::Element::giveGeometryType(), oofem::FEMComponent::giveNumber(), and OOFEM_ERROR.

Referenced by oofem::QuasicontinuumVTKXMLExportModule::setupVTKPiece(), and setupVTKPiece().

virtual const char* oofem::VTKXMLExportModule::giveClassName ( ) const

inlinevirtual

Returns class name of the receiver.

Implements oofem::ExportModule.

Definition at line 187 of file vtkxmlexportmodule.h.

void oofem::VTKXMLExportModule::giveDataHeaders	(	std::string &	pointHeader,
		std::string &	cellHeader
	)

Definition at line 926 of file vtkxmlexportmodule.C.

References oofem::__InternalStateTypeToString(), oofem::__UnknownTypeToString(), oofem::IntArray::at(), cellVarsToExport, externalForcesToExport, oofem::giveInternalStateValueType(), oofem::IntArray::giveSize(), internalVarsToExport, oofem::ISVT_SCALAR, oofem::ISVT_TENSOR_G, oofem::ISVT_TENSOR_S3, oofem::ISVT_TENSOR_S3E, oofem::ISVT_VECTOR, OOFEM_ERROR, OOFEM_WARNING, and primaryVarsToExport.

Referenced by writeVTKPiece().

void oofem::VTKXMLExportModule::giveElementCell	(	IntArray &	answer,
		Element *	elem
	)

protected

Returns the element cell geometry.

Definition at line 277 of file vtkxmlexportmodule.C.

References oofem::IntArray::at(), oofem::Element::giveGeometryType(), oofem::Element::giveNode(), oofem::FEMComponent::giveNumber(), oofem::Element::giveNumberOfNodes(), oofem::IntArray::giveSize(), OOFEM_ERROR, and oofem::IntArray::resize().

Referenced by oofem::QuasicontinuumVTKXMLExportModule::setupVTKPiece(), and setupVTKPiece().

int oofem::VTKXMLExportModule::giveNumberOfNodesPerCell ( int cellType )

protected

Returns number of nodes corresponding to cell type.

Definition at line 230 of file vtkxmlexportmodule.C.

References OOFEM_ERROR.

std::string oofem::VTKXMLExportModule::giveOutputFileName ( TimeStep * tStep )

protected

Returns the filename for the given time step.

Definition at line 166 of file vtkxmlexportmodule.C.

References oofem::ExportModule::giveOutputBaseFileName().

Referenced by doOutput(), and giveOutputStream().

FILE * oofem::VTKXMLExportModule::giveOutputStream ( TimeStep * tStep )

protected

Returns the output stream for given solution step.

Definition at line 173 of file vtkxmlexportmodule.C.

References giveOutputFileName(), and OOFEM_ERROR.

Referenced by doOutput().

NodalRecoveryModel * oofem::VTKXMLExportModule::givePrimVarSmoother ( )

Returns the smoother for primary variables (nodal averaging).

Definition at line 2033 of file vtkxmlexportmodule.C.

References oofem::classFactory, oofem::ClassFactory::createNodalRecoveryModel(), oofem::ExportModule::emodel, oofem::EngngModel::giveDomain(), oofem::NodalRecoveryModel::NRM_NodalAveraging, and primVarSmoother.

Referenced by oofem::StructuralFE2MaterialStatus::copyStateVariables(), exportExternalForces(), exportPrimaryVars(), and getNodalVariableFromPrimaryField().

NodalRecoveryModel * oofem::VTKXMLExportModule::giveSmoother ( )

Returns the internal smoother.

Definition at line 2020 of file vtkxmlexportmodule.C.

References oofem::classFactory, oofem::ClassFactory::createNodalRecoveryModel(), oofem::ExportModule::emodel, oofem::EngngModel::giveDomain(), smoother, and stype.

Referenced by oofem::StructuralFE2MaterialStatus::copyStateVariables(), doOutput(), exportIntVars(), getNodalVariableFromIS(), oofem::QuasicontinuumVTKXMLExportModule::setupVTKPiece(), and setupVTKPiece().

void oofem::VTKXMLExportModule::initialize ( )

virtual

Reimplemented from oofem::ExportModule.

Definition at line 124 of file vtkxmlexportmodule.C.

References oofem::ExportModule::initialize(), and smoother.

IRResultType oofem::VTKXMLExportModule::initializeFrom ( InputRecord * ir )

virtual

Initializes receiver according to object description stored in input record.

Reimplemented from oofem::ExportModule.

Reimplemented in oofem::QuasicontinuumVTKXMLExportModule.

Definition at line 101 of file vtkxmlexportmodule.C.

References _IFT_VTKXMLExportModule_cellvars, _IFT_VTKXMLExportModule_externalForces, _IFT_VTKXMLExportModule_ipvars, _IFT_VTKXMLExportModule_particleexportflag, _IFT_VTKXMLExportModule_primvars, _IFT_VTKXMLExportModule_stype, _IFT_VTKXMLExportModule_vars, cellVarsToExport, externalForcesToExport, oofem::ExportModule::initializeFrom(), internalVarsToExport, ipInternalVarsToExport, IR_GIVE_OPTIONAL_FIELD, particleExportFlag, primaryVarsToExport, and stype.

Referenced by oofem::QuasicontinuumVTKXMLExportModule::initializeFrom().

int oofem::VTKXMLExportModule::initRegionNodeNumbering	(	IntArray &	mapG2L,
		IntArray &	mapL2G,
		int &	regionDofMans,
		int &	totalcells,
		Domain *	domain,
		TimeStep *	tStep,
		int	reg
	)

protectedvirtual

Assembles the region node map.

Also computes the total number of nodes in region. The region are numbered starting from offset+1. If mode == 0 then regionNodalNumbers is array with mapping from global numbering to local region numbering. The i-th value contains the corresponding local region number (or zero, if global number is not in region). If mode == 1 then regionNodalNumbers is array with mapping from local to global numbering. The i-th value contains the corresponding global node number.

Reimplemented in oofem::QuasicontinuumVTKXMLExportModule.

Definition at line 1351 of file vtkxmlexportmodule.C.

References oofem::IntArray::at(), oofem::Element_local, oofem::Domain::giveElement(), oofem::Set::giveElementList(), oofem::Element::giveNode(), oofem::FEMComponent::giveNumber(), oofem::Domain::giveNumberOfDofManagers(), oofem::Element::giveNumberOfNodes(), oofem::Element::giveParallelMode(), oofem::ExportModule::giveRegionSet(), oofem::IntArray::giveSize(), oofem::Element::isActivated(), oofem::Element::isCast(), isElementComposite(), oofem::IntArray::resize(), and oofem::IntArray::zero().

Referenced by setupVTKPiece().

bool oofem::VTKXMLExportModule::isElementComposite ( Element * elem )

protected

Definition at line 331 of file vtkxmlexportmodule.C.

References oofem::Element::giveGeometryType().

Referenced by doOutput(), oofem::QuasicontinuumVTKXMLExportModule::initRegionNodeNumbering(), initRegionNodeNumbering(), oofem::QuasicontinuumVTKXMLExportModule::setupVTKPiece(), and setupVTKPiece().

void oofem::VTKXMLExportModule::makeFullTensorForm	(	FloatArray &	answer,
		const FloatArray &	reducedForm,
		InternalStateValueType	vtype
	)

staticprotected

Gives the full form of given symmetrically stored tensors, missing components are filled with zeros.

Definition at line 141 of file vtkxmlexportmodule.C.

References oofem::IntArray::at(), oofem::FloatArray::at(), oofem::FloatArray::giveSize(), oofem::ISVT_TENSOR_G, oofem::ISVT_TENSOR_S3E, redToFull, oofem::FloatArray::resize(), and oofem::FloatArray::zero().

Referenced by exportIntVarsInGpAs(), getCellVariableFromIS(), getNodalVariableFromIS(), and getNodalVariableFromXFEMST().

void oofem::VTKXMLExportModule::setupVTKPiece	(	VTKPiece &	vtkPiece,
		TimeStep *	tStep,
		int	region
	)

protectedvirtual

Reimplemented in oofem::QuasicontinuumVTKXMLExportModule.

Definition at line 689 of file vtkxmlexportmodule.C.

References oofem::IntArray::at(), oofem::Element_local, oofem::ExportModule::emodel, exportCellVars(), exportExternalForces(), exportIntVars(), exportPrimaryVars(), oofem::IntArray::followedBy(), giveCellType(), oofem::EngngModel::giveDomain(), oofem::Domain::giveElement(), giveElementCell(), oofem::Set::giveElementList(), oofem::Domain::giveNode(), oofem::Element::giveParallelMode(), oofem::ExportModule::giveRegionSet(), oofem::IntArray::giveSize(), giveSmoother(), initRegionNodeNumbering(), oofem::Element::isActivated(), oofem::Element::isCast(), isElementComposite(), oofem::VTKPiece::setCellType(), oofem::VTKPiece::setConnectivity(), oofem::VTKPiece::setNodeCoords(), oofem::VTKPiece::setNumberOfCells(), oofem::VTKPiece::setNumberOfNodes(), and oofem::VTKPiece::setOffset().

Referenced by doOutput().

void oofem::VTKXMLExportModule::terminate ( )

virtual

Terminates the receiver.

The terminating messages should be printed. All the streams should be closed.

Reimplemented from oofem::ExportModule.

Definition at line 136 of file vtkxmlexportmodule.C.

void oofem::VTKXMLExportModule::writeCellVars ( VTKPiece & vtkPiece )

protected

Definition at line 1856 of file vtkxmlexportmodule.C.

References oofem::__InternalStateTypeToString(), oofem::IntArray::at(), oofem::FloatArray::at(), cellVarsToExport, fileStream, oofem::VTKPiece::giveCellVar(), oofem::giveInternalStateTypeSize(), oofem::giveInternalStateValueType(), oofem::VTKPiece::giveNumberOfCells(), oofem::IntArray::giveSize(), oofem::FloatArray::resize(), and writeVTKCellData().

Referenced by writeVTKPiece().

void oofem::VTKXMLExportModule::writeExternalForces ( VTKPiece & vtkPiece )

protected

Definition at line 1707 of file vtkxmlexportmodule.C.

References oofem::__UnknownTypeToString(), oofem::IntArray::at(), oofem::FloatArray::at(), externalForcesToExport, fileStream, oofem::giveInternalStateTypeSize(), oofem::giveInternalStateValueType(), oofem::VTKPiece::giveLoadInNode(), oofem::VTKPiece::giveNumberOfNodes(), oofem::IntArray::giveSize(), and writeVTKPointData().

Referenced by writeVTKPiece().

void oofem::VTKXMLExportModule::writeGPVTKCollection ( )

protected

Writes a VTK collection file for Gauss points.

Definition at line 1945 of file vtkxmlexportmodule.C.

References oofem::ExportModule::emodel, oofem::EngngModel::giveOutputBaseFileName(), gpPvdBuffer, oofem::ExportModule::number, and oofem::ExportModule::tstep_substeps_out_flag.

Referenced by doOutput().

void oofem::VTKXMLExportModule::writeIntVars ( VTKPiece & vtkPiece )

protected

Definition at line 1175 of file vtkxmlexportmodule.C.

References oofem::__InternalStateTypeToString(), oofem::IntArray::at(), oofem::FloatArray::at(), fileStream, oofem::VTKPiece::giveInternalVarInNode(), oofem::VTKPiece::giveNumberOfNodes(), oofem::IntArray::giveSize(), oofem::FloatArray::giveSize(), internalVarsToExport, and writeVTKPointData().

Referenced by writeVTKPiece().

void oofem::VTKXMLExportModule::writePrimaryVars ( VTKPiece & vtkPiece )

protected

Definition at line 1606 of file vtkxmlexportmodule.C.

References oofem::__UnknownTypeToString(), oofem::IntArray::at(), oofem::FloatArray::at(), fileStream, oofem::giveInternalStateTypeSize(), oofem::giveInternalStateValueType(), oofem::VTKPiece::giveNumberOfNodes(), oofem::VTKPiece::givePrimaryVarInNode(), oofem::IntArray::giveSize(), primaryVarsToExport, and writeVTKPointData().

Referenced by writeVTKPiece().

void oofem::VTKXMLExportModule::writeVTKCellData ( FloatArray & valueArray )

protected

Definition at line 1338 of file vtkxmlexportmodule.C.

References oofem::FloatArray::at(), fileStream, and oofem::FloatArray::giveSize().

Referenced by writeCellVars(), and writeVTKPointData().

void oofem::VTKXMLExportModule::writeVTKCollection ( )

protected

Writes a VTK collection file where time step data is stored.

Definition at line 1914 of file vtkxmlexportmodule.C.

References oofem::ExportModule::emodel, oofem::EngngModel::giveOutputBaseFileName(), oofem::ExportModule::number, pvdBuffer, and oofem::ExportModule::tstep_substeps_out_flag.

Referenced by doOutput().

bool oofem::VTKXMLExportModule::writeVTKPiece	(	VTKPiece &	vtkPiece,
		TimeStep *	tStep
	)

protected

Returns: true if piece is not empty and thus written

Todo:: move this below into setNodeCoords since it should alwas be 3 components anyway

Todo:: giveDataHeaders is currently not updated wrt the new structure -> no file names in headers /JB

Definition at line 778 of file vtkxmlexportmodule.C.

References oofem::IntArray::at(), oofem::FloatArray::at(), oofem::VTKPiece::clear(), oofem::ExportModule::emodel, fileStream, oofem::VTKPiece::giveCellConnectivity(), oofem::VTKPiece::giveCellOffset(), oofem::VTKPiece::giveCellType(), giveDataHeaders(), oofem::EngngModel::giveDomain(), oofem::VTKPiece::giveNodeCoords(), oofem::VTKPiece::giveNumberOfCells(), oofem::VTKPiece::giveNumberOfNodes(), oofem::IntArray::giveSize(), oofem::FloatArray::giveSize(), oofem::Domain::hasXfemManager(), writeCellVars(), writeExternalForces(), writeIntVars(), writePrimaryVars(), writeXFEMVars(), and oofem::FloatArray::zero().

Referenced by doOutput().

void oofem::VTKXMLExportModule::writeVTKPointData ( FloatArray & valueArray )

protected

Definition at line 1300 of file vtkxmlexportmodule.C.

References oofem::FloatArray::at(), fileStream, oofem::FloatArray::giveSize(), and writeVTKCellData().

Referenced by writeExternalForces(), writeIntVars(), writePrimaryVars(), and writeXFEMVars().

void oofem::VTKXMLExportModule::writeXFEMVars ( VTKPiece & vtkPiece )

protected

Member Data Documentation

IntArray oofem::VTKXMLExportModule::cellVarsToExport

protected

List of cell data to export.

Definition at line 154 of file vtkxmlexportmodule.h.

Referenced by exportCellVars(), exportCompositeElement(), giveDataHeaders(), initializeFrom(), and writeCellVars().

VTKPiece oofem::VTKXMLExportModule::defaultVTKPiece

Definition at line 210 of file vtkxmlexportmodule.h.

Referenced by doOutput().

std :: vector< VTKPiece > oofem::VTKXMLExportModule::defaultVTKPieces

Definition at line 212 of file vtkxmlexportmodule.h.

Referenced by doOutput().

IntArray oofem::VTKXMLExportModule::externalForcesToExport

protected

List of primary unknowns to export.

Definition at line 152 of file vtkxmlexportmodule.h.

Referenced by exportExternalForces(), giveDataHeaders(), initializeFrom(), and writeExternalForces().

FILE* oofem::VTKXMLExportModule::fileStream

Definition at line 207 of file vtkxmlexportmodule.h.

Referenced by doOutput(), writeCellVars(), writeExternalForces(), writeIntVars(), writePrimaryVars(), writeVTKCellData(), writeVTKPiece(), writeVTKPointData(), and writeXFEMVars().

std :: list< std :: string > oofem::VTKXMLExportModule::gpPvdBuffer

protected

Buffer for earlier time steps with gauss points exported to *.gp.pvd file.

Definition at line 175 of file vtkxmlexportmodule.h.

Referenced by doOutput(), and writeGPVTKCollection().

IntArray oofem::VTKXMLExportModule::internalVarsToExport

protected

List of InternalStateType values, identifying the selected vars for export.

Definition at line 148 of file vtkxmlexportmodule.h.

Referenced by exportCompositeElement(), exportIntVars(), giveDataHeaders(), initializeFrom(), and writeIntVars().

IntArray oofem::VTKXMLExportModule::ipInternalVarsToExport

protected

List of internal variables to export directly in Integration Points (no smoothing to nodes)

Definition at line 156 of file vtkxmlexportmodule.h.

Referenced by doOutput(), and initializeFrom().

bool oofem::VTKXMLExportModule::particleExportFlag

protected

particle export flag

Definition at line 169 of file vtkxmlexportmodule.h.

Referenced by doOutput(), and initializeFrom().

IntArray oofem::VTKXMLExportModule::primaryVarsToExport

protected

List of primary unknowns to export.

Definition at line 150 of file vtkxmlexportmodule.h.

Referenced by exportCompositeElement(), exportPrimaryVars(), giveDataHeaders(), initializeFrom(), and writePrimaryVars().

NodalRecoveryModel* oofem::VTKXMLExportModule::primVarSmoother

protected

Smoother for primary variables.

Definition at line 166 of file vtkxmlexportmodule.h.

Referenced by givePrimVarSmoother(), VTKXMLExportModule(), and ~VTKXMLExportModule().

std :: list< std :: string > oofem::VTKXMLExportModule::pvdBuffer

protected

Buffer for earlier time steps exported to *.pvd file.

Definition at line 172 of file vtkxmlexportmodule.h.

Referenced by doOutput(), and writeVTKCollection().

IntArray oofem::VTKXMLExportModule::redToFull

staticprotected

Map from Voigt to full tensor.

Definition at line 159 of file vtkxmlexportmodule.h.

Referenced by makeFullTensorForm().

NodalRecoveryModel* oofem::VTKXMLExportModule::smoother

protected

Smoother.

Definition at line 164 of file vtkxmlexportmodule.h.

Referenced by getNodalVariableFromIS(), giveSmoother(), initialize(), VTKXMLExportModule(), and ~VTKXMLExportModule().

NodalRecoveryModel :: NodalRecoveryModelType oofem::VTKXMLExportModule::stype

protected

Smoother type.

Definition at line 162 of file vtkxmlexportmodule.h.

Referenced by giveSmoother(), and initializeFrom().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
