This class implements temperature (constant) load over the element component array contains one or two numbers; componentArray->at(1) contains increment of temperature in mid-surface componentArray->at(2) contains increment of gradient of temperature over the thickness of element (optional) More...

#include <structtemperatureload.h>

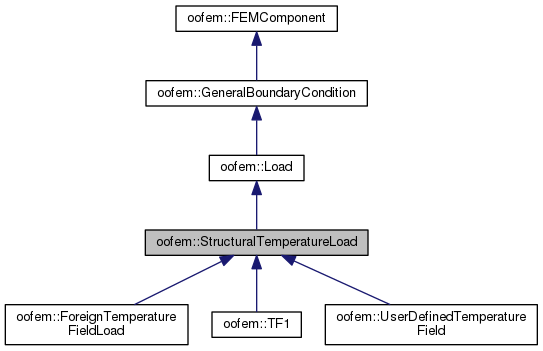

Inheritance diagram for oofem::StructuralTemperatureLoad:

Collaboration diagram for oofem::StructuralTemperatureLoad:

Public Member Functions
	StructuralTemperatureLoad (int n, Domain *d)

virtual void	computeValueAt (FloatArray &answer, TimeStep *tStep, const FloatArray &coords, ValueModeType mode)
	Computes components values of load at given point - global coordinates (coordinates given). More...

virtual bcValType	giveBCValType () const
	Returns receiver load type. More...

virtual bcGeomType	giveBCGeoType () const
	Returns geometry character of boundary condition. More...

virtual const char *	giveInputRecordName () const

virtual const char *	giveClassName () const

Public Member Functions inherited from oofem::Load
	Load (int n, Domain *d)
	Constructor. More...

virtual	~Load ()
	Destructor. More...

virtual void	computeComponentArrayAt (FloatArray &answer, TimeStep *tStep, ValueModeType mode)
	Computes boundary condition value - its components values at given time. More...

virtual void	computeValues (FloatArray &answer, TimeStep *tStep, const FloatArray &coords, const IntArray &dofids, ValueModeType mode)
	Computes components values for specified dof ids. More...

int	isDofExcluded (int index)
	Returns the value of dofExcludeMask corresponding to given index. More...

virtual void	scale (double s)
	Scales the receiver according to given value. More...

virtual CoordSystType	giveCoordSystMode ()
	Returns receiver's coordinate system. More...

virtual FormulationType	giveFormulationType ()
	Specifies is load should take local or global coordinates. More...

virtual int	giveApproxOrder ()

virtual double	giveProperty (int aProperty, TimeStep *tStep)
	Returns the value of a property 'aProperty'. More...

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

const FloatArray &	giveComponentArray () const

void	setComponentArray (FloatArray &arry)

Public Member Functions inherited from oofem::GeneralBoundaryCondition
	GeneralBoundaryCondition (int n, Domain *d)
	Constructor. More...

virtual	~GeneralBoundaryCondition ()
	Destructor. More...

int	giveSetNumber ()
	Gives the set number which boundary condition is applied to. More...

virtual int	giveNumberOfInternalDofManagers ()
	Gives the number of internal dof managers. More...

virtual DofManager *	giveInternalDofManager (int i)
	Gives an internal dof manager from receiver. More...

Function *	giveTimeFunction ()

virtual bool	isImposed (TimeStep *tStep)
	Returns nonzero if receiver representing BC is imposed at given time, otherwise returns zero. More...

virtual const IntArray &	giveDofIDs () const
	Array with default dofs which b.c. More...

virtual bcType	giveType () const

virtual void	postInitialize ()
	Performs post initialization steps. More...

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Prints output of receiver to stream, for given time step. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Additional Inherited Members
Public Types inherited from oofem::Load
enum	CoordSystType { CST_Global, CST_Local, CST_UpdatedGlobal }
	Load coordinate system type. More...

enum	FormulationType { FT_Entity, FT_Global }
	Type determining the type of formulation (entity local or global one). More...

Public Attributes inherited from oofem::Load
bool	reference

Protected Attributes inherited from oofem::Load
FloatArray	componentArray
	Components of boundary condition. More...

IntArray	dofExcludeMask
	The load is specified for all dofs of object to which is associated. More...

Protected Attributes inherited from oofem::GeneralBoundaryCondition
int	timeFunction
	Associated load time function. More...

bcValType	valType
	Physical meaning of BC value. More...

IntArray	dofs
	Dofs that b.c. is applied to (relevant for Dirichlet type b.c.s). More...

int	isImposedTimeFunction
	Zero by default - the BC is than always imposed. More...

int	set
	Set number for boundary condition to be applied to. More...

Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Detailed Description

This class implements temperature (constant) load over the element component array contains one or two numbers; componentArray->at(1) contains increment of temperature in mid-surface componentArray->at(2) contains increment of gradient of temperature over the thickness of element (optional)

Definition at line 53 of file structtemperatureload.h.

Constructor & Destructor Documentation

oofem::StructuralTemperatureLoad::StructuralTemperatureLoad	(	int	n,
		Domain *	d
	)

inline

Definition at line 56 of file structtemperatureload.h.

References computeValueAt().

Member Function Documentation

void oofem::StructuralTemperatureLoad::computeValueAt	(	FloatArray &	answer,
		TimeStep *	tStep,
		const FloatArray &	coords,
		ValueModeType	mode
	)

virtual

Computes components values of load at given point - global coordinates (coordinates given).

Parameters

answer	Component values at given point and time.
tStep	Time step representing time.
coords	Global (or local) problem coordinates, which are used to evaluate components values.
mode	Determines response mode.

Implements oofem::Load.

Reimplemented in oofem::UserDefinedTemperatureField, oofem::ForeignTemperatureFieldLoad, and oofem::TF1.

Definition at line 41 of file structtemperatureload.C.

References oofem::Load::computeComponentArrayAt().

Referenced by StructuralTemperatureLoad().

virtual bcGeomType oofem::StructuralTemperatureLoad::giveBCGeoType ( ) const

inlinevirtual

Returns geometry character of boundary condition.

For available values see cltypes.h file. Derived classes should always overload, default implementation returns UnknownLoadGT value.

Reimplemented from oofem::GeneralBoundaryCondition.

Definition at line 61 of file structtemperatureload.h.

References oofem::BodyLoadBGT.

virtual bcValType oofem::StructuralTemperatureLoad::giveBCValType ( ) const

inlinevirtual

Returns receiver load type.

It distinguish particular boundary conditions according to their "physical" meaning (like StructuralTemperatureLoadLT, StructuralLoadLT). Derived classes should always overload, default implementation returns UnknownLT value. See cltypes.h file for details.

Reimplemented from oofem::GeneralBoundaryCondition.

Definition at line 60 of file structtemperatureload.h.

References oofem::TemperatureBVT.

virtual const char* oofem::StructuralTemperatureLoad::giveClassName ( ) const

inlinevirtual
