Gradient Mises maaterial status. More...

#include <misesmatgrad.h>

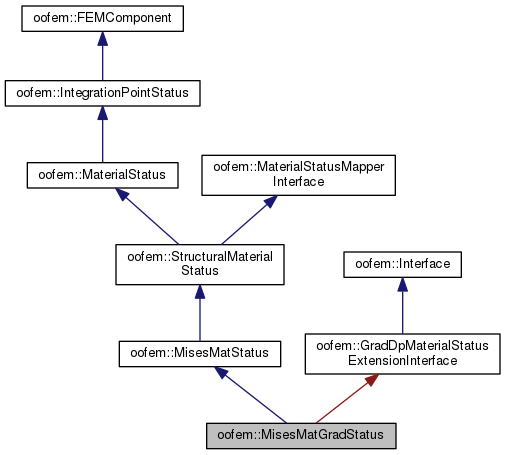

Inheritance diagram for oofem::MisesMatGradStatus:

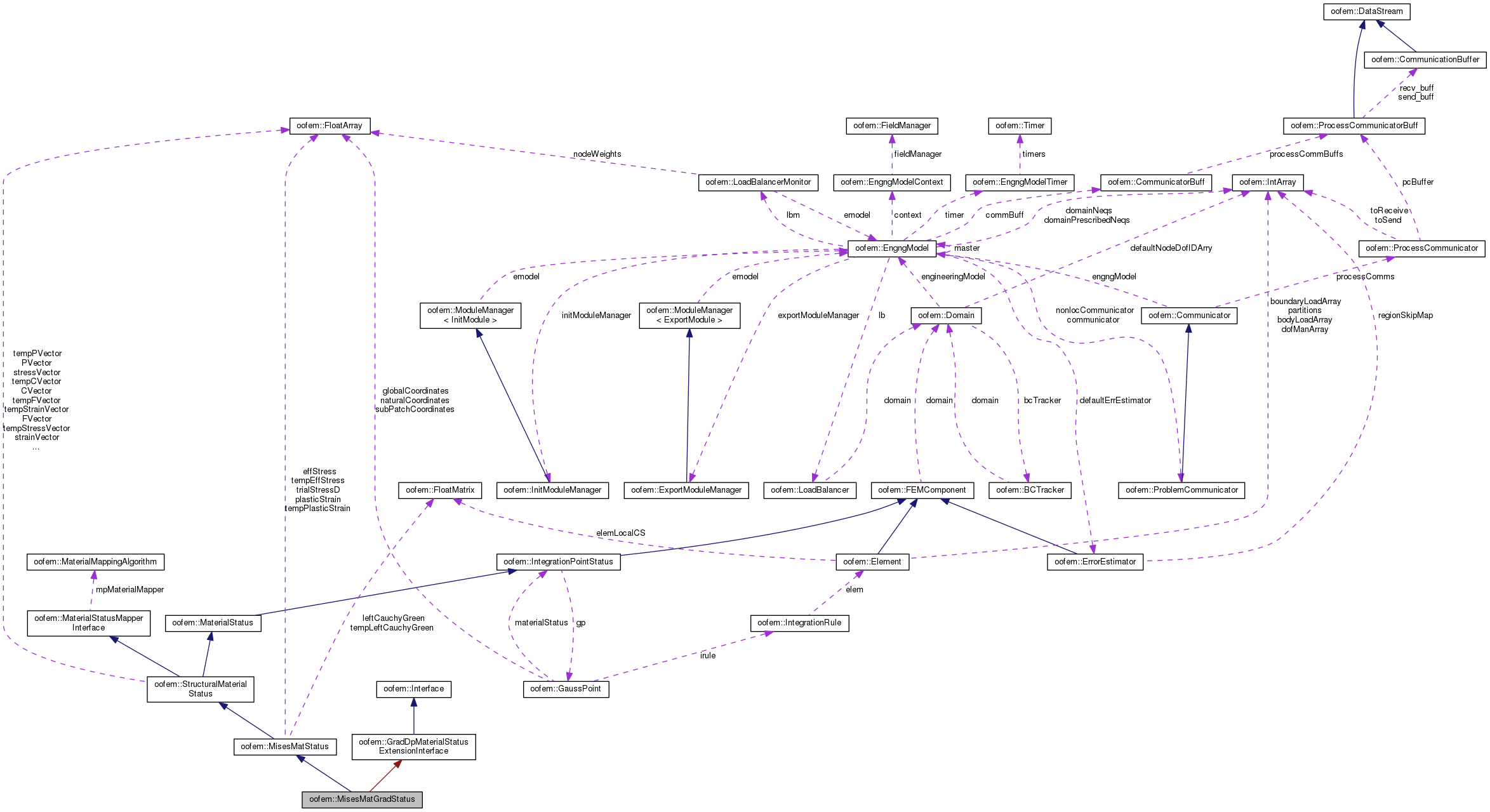

Collaboration diagram for oofem::MisesMatGradStatus:

Public Member Functions
	MisesMatGradStatus (int n, Domain d, GaussPoint g)

virtual	~MisesMatGradStatus ()

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Print receiver's output to given stream. More...

virtual const char *	giveClassName () const

virtual void	initTempStatus ()
	Initializes the temporary internal variables, describing the current state according to previously reached equilibrium internal variables. More...

virtual void	updateYourself (TimeStep *tStep)
	Update equilibrium history variables according to temp-variables. More...

virtual double	giveNonlocalCumulatedStrain ()

virtual void	setNonlocalCumulatedStrain (double nonlocalCumulatedStrain)

Public Member Functions inherited from oofem::MisesMatStatus
	MisesMatStatus (int n, Domain d, GaussPoint g)

virtual	~MisesMatStatus ()

const FloatArray &	givePlasticStrain ()

const FloatArray &	giveTrialStressDev ()

double	giveTrialStressVol ()

double	giveDamage ()

double	giveTempDamage ()

double	giveCumulativePlasticStrain ()

double	giveTempCumulativePlasticStrain ()

const FloatMatrix &	giveTempLeftCauchyGreen ()

const FloatMatrix &	giveLeftCauchyGreen ()

const FloatArray &	giveTempEffectiveStress ()

const FloatArray &	giveEffectiveStress ()

void	letTempPlasticStrainBe (const FloatArray &values)

const FloatArray &	getTempPlasticStrain () const

void	letTrialStressDevBe (const FloatArray &values)

void	letEffectiveStressBe (const FloatArray &values)

void	letTempEffectiveStressBe (const FloatArray &values)

void	setTrialStressVol (double value)

void	setTempCumulativePlasticStrain (double value)

void	setTempDamage (double value)

void	letTempLeftCauchyGreenBe (const FloatMatrix &values)

void	letLeftCauchyGreenBe (const FloatMatrix &values)

const FloatArray &	givePlasDef ()

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

Public Member Functions inherited from oofem::StructuralMaterialStatus
	StructuralMaterialStatus (int n, Domain d, GaussPoint g)
	Constructor. Creates new StructuralMaterialStatus with number n, belonging to domain d and IntegrationPoint g. More...

virtual	~StructuralMaterialStatus ()
	Destructor. More...

const FloatArray &	giveStrainVector () const
	Returns the const pointer to receiver's strain vector. More...

const FloatArray &	giveStressVector () const
	Returns the const pointer to receiver's stress vector. More...

const FloatArray &	givePVector () const
	Returns the const pointer to receiver's first Piola-Kirchhoff stress vector. More...

const FloatArray &	giveCVector () const
	Returns the const pointer to receiver's Cauchy stress vector. More...

const FloatArray &	giveFVector () const
	Returns the const pointer to receiver's deformation gradient vector. More...

const FloatArray &	giveTempStrainVector () const
	Returns the const pointer to receiver's temporary strain vector. More...

const FloatArray &	giveTempStressVector () const
	Returns the const pointer to receiver's temporary stress vector. More...

const FloatArray &	giveTempPVector () const
	Returns the const pointer to receiver's temporary first Piola-Kirchhoff stress vector. More...

const FloatArray &	giveTempCVector () const
	Returns the const pointer to receiver's temporary Cauchy stress vector. More...

const FloatArray &	giveTempFVector () const
	Returns the const pointer to receiver's temporary deformation gradient vector. More...

void	letStrainVectorBe (const FloatArray &v)
	Assigns strain vector to given vector v. More...

void	letStressVectorBe (const FloatArray &v)
	Assigns stressVector to given vector v. More...

void	letPVectorBe (const FloatArray &v)
	Assigns PVector to given vector v. More...

void	letCVectorBe (const FloatArray &v)
	Assigns CVector to given vector v. More...

void	letFVectorBe (const FloatArray &v)
	Assigns FVector to given vector v. More...

void	letTempStressVectorBe (const FloatArray &v)
	Assigns tempStressVector to given vector v. More...

void	letTempStrainVectorBe (const FloatArray &v)
	Assigns tempStrainVector to given vector v. More...

void	letTempPVectorBe (const FloatArray &v)
	Assigns tempPVector to given vector v. More...

void	letTempCVectorBe (const FloatArray &v)
	Assigns tempPVector to given vector v. More...

void	letTempFVectorBe (const FloatArray &v)
	Assigns tempFVector to given vector v. More...

virtual void	copyStateVariables (const MaterialStatus &iStatus)
	Functions for MaterialStatusMapperInterface. More...

virtual void	addStateVariables (const MaterialStatus &iStatus)

Public Member Functions inherited from oofem::MaterialStatus
	MaterialStatus (int n, Domain d, GaussPoint g)
	Constructor. More...

virtual	~MaterialStatus ()
	Destructor. More...

virtual bool	giveMaterialProperty (int propID, double &value)
	Returns the value of material model property stored in receiving status. More...

virtual void	setMaterialProperty (int propID, double value)
	Allows to set the value of material model property to be stored in receiving status. More...

virtual void	setStatusVariable (int varID, double value)
	Allows to set the value of a specific variable, identified by varID. More...

virtual void	restoreConsistency ()
	Restores consistency of the status, i.e., computes or corrects the values of certain status variables such that the state is admissible. More...

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

Public Member Functions inherited from oofem::IntegrationPointStatus
	IntegrationPointStatus (int n, Domain d, GaussPoint g)
	Constructor. More...

virtual	~IntegrationPointStatus ()
	Destructor. More...

virtual const char *	giveInputRecordName () const

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Public Member Functions inherited from oofem::MaterialStatusMapperInterface
	MaterialStatusMapperInterface ()

virtual	~MaterialStatusMapperInterface ()

virtual int	MSMI_map (const GaussPoint &iGP, const Domain &iOldDom, Set &sourceSet, const TimeStep &iTStep, MaterialStatus &oStatus)
	Maps all internal state variables from the old domain to the given gp status. More...

virtual int	MSMI_map_cz (const GaussPoint &iGP, const Domain &iOldDom, Set &sourceSet, const TimeStep &iTStep, MaterialStatus &oStatus)

virtual int	MSMI_update (const GaussPoint &iGP, const TimeStep &iTStep)
	Updates the internal state variables from previously mapped values. More...

virtual int	MSMI_finish (const TimeStep &iTStep)
	Finishes the mapping for given time step. More...

Protected Attributes
double	localCumPlastStrainForAverage

Protected Attributes inherited from oofem::MisesMatStatus
FloatArray	plasticStrain
	Plastic strain (initial). More...

FloatArray	tempPlasticStrain
	Plastic strain (final). More...

FloatArray	trialStressD
	Deviatoric trial stress - needed for tangent stiffness. More...

double	trialStressV

FloatArray	effStress

FloatArray	tempEffStress

double	kappa
	Cumulative plastic strain (initial). More...

double	tempKappa
	Cumulative plastic strain (final). More...

double	tempDamage

double	damage

FloatMatrix	leftCauchyGreen
	Left Cauchy-Green deformation gradient (initial). More...

FloatMatrix	tempLeftCauchyGreen
	Left Cauchy-Green deformation gradient (final). More...

Protected Attributes inherited from oofem::StructuralMaterialStatus
FloatArray	strainVector
	Equilibrated strain vector in reduced form. More...

FloatArray	stressVector
	Equilibrated stress vector in reduced form. More...

FloatArray	tempStressVector
	Temporary stress vector in reduced form (increments are used mainly in nonlinear analysis) More...

FloatArray	tempStrainVector
	Temporary strain vector in reduced form (to find balanced state) More...

FloatArray	PVector
	Equilibrated first Piola-Kirchhoff stress vector. More...

FloatArray	tempPVector
	Temporary first Piola-Kirchhoff stress vector (to find balanced state) More...

FloatArray	CVector
	Equilibrated Cauchy stress vector. More...

FloatArray	tempCVector
	Temporary Cauchy stress vector (to find balanced state) More...

FloatArray	FVector
	Equilibrated deformation gradient in reduced form. More...

FloatArray	tempFVector
	Temporary deformation gradient in reduced form (to find balanced state) More...

Protected Attributes inherited from oofem::IntegrationPointStatus
GaussPoint *	gp
	Associated integration point. More...

Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Protected Attributes inherited from oofem::MaterialStatusMapperInterface
MaterialMappingAlgorithm *	mpMaterialMapper

Additional Inherited Members
Private Member Functions inherited from oofem::Interface
	Interface ()
	Constructor. More...

virtual	~Interface ()

Private Attributes inherited from oofem::GradDpMaterialStatusExtensionInterface
double	nonlocalCumulatedStrain
