This class implements associated Material Status to MPlasticMaterial. More...

#include <mplasticmaterial.h>

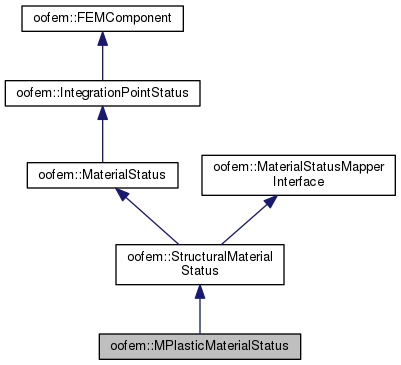

Inheritance diagram for oofem::MPlasticMaterialStatus:

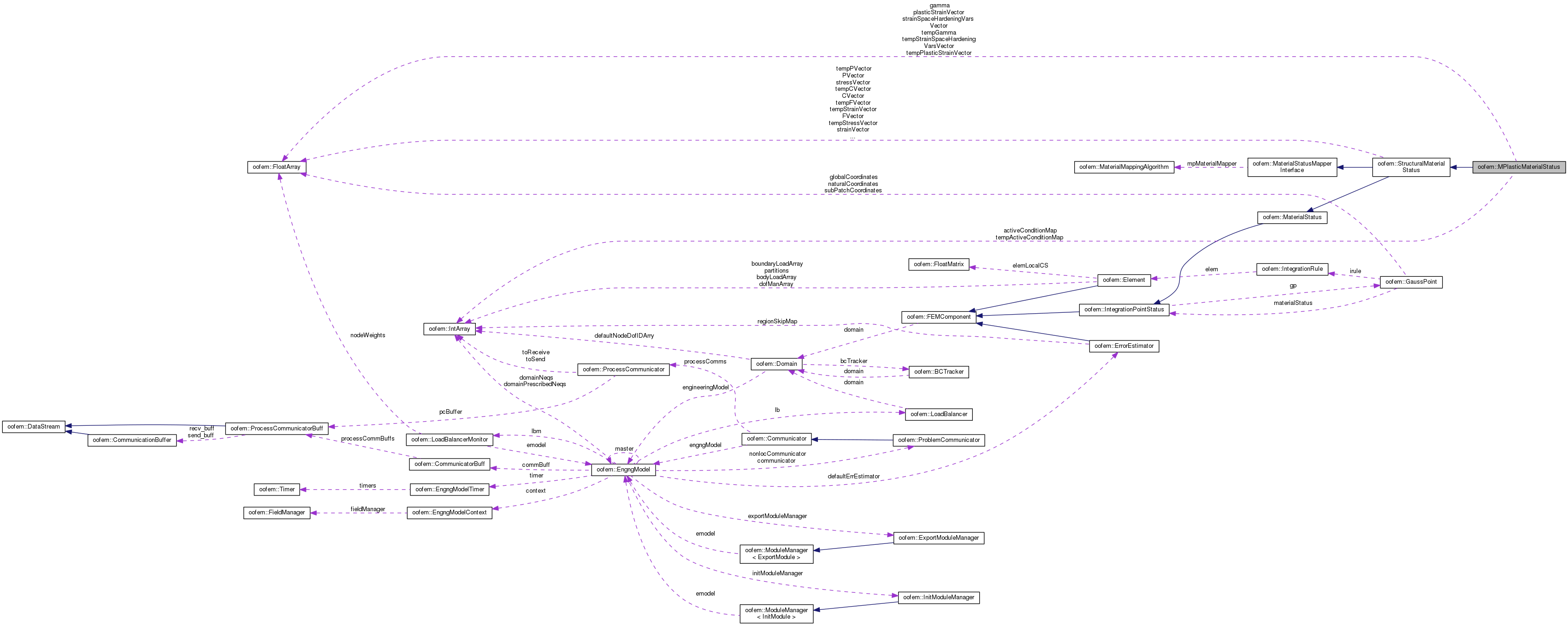

Collaboration diagram for oofem::MPlasticMaterialStatus:

Public Types
enum	state_flag_values { PM_Elastic, PM_Yielding, PM_Unloading }

Public Member Functions
	MPlasticMaterialStatus (int n, Domain d, GaussPoint g, int statusSize)

virtual	~MPlasticMaterialStatus ()

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Print receiver's output to given stream. More...

virtual void	initTempStatus ()
	Initializes the temporary internal variables, describing the current state according to previously reached equilibrium internal variables. More...

virtual void	updateYourself (TimeStep *tStep)
	Update equilibrium history variables according to temp-variables. More...

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

const FloatArray &	givePlasticStrainVector () const
	Returns the equilibrated strain vector. More...

const FloatArray &	giveTempPlasticStrainVector () const
	Returns the actual (temp) strain vector. More...

const FloatArray &	giveStrainSpaceHardeningVars () const
	Returns the equilibrated hardening variable vector. More...

const FloatArray &	givetempStrainSpaceHardeningVarsVector () const
	Returns the actual (temp) hardening variable vector. More...

void	letPlasticStrainVectorBe (FloatArray v)

void	letTempPlasticStrainVectorBe (FloatArray v)

void	letTempStrainSpaceHardeningVarsVectorBe (FloatArray v)

void	letStrainSpaceHardeningVarsVectorBe (FloatArray v)

int	giveStateFlag ()

int	giveTempStateFlag ()

void	letTempStateFlagBe (int v)

const IntArray &	giveTempActiveConditionMap ()

void	setTempActiveConditionMap (IntArray v)

const FloatArray &	giveTempGamma ()

void	setTempGamma (FloatArray v)

virtual const char *	giveClassName () const

Public Member Functions inherited from oofem::StructuralMaterialStatus
	StructuralMaterialStatus (int n, Domain d, GaussPoint g)
	Constructor. Creates new StructuralMaterialStatus with number n, belonging to domain d and IntegrationPoint g. More...

virtual	~StructuralMaterialStatus ()
	Destructor. More...

const FloatArray &	giveStrainVector () const
	Returns the const pointer to receiver's strain vector. More...

const FloatArray &	giveStressVector () const
	Returns the const pointer to receiver's stress vector. More...

const FloatArray &	givePVector () const
	Returns the const pointer to receiver's first Piola-Kirchhoff stress vector. More...

const FloatArray &	giveCVector () const
	Returns the const pointer to receiver's Cauchy stress vector. More...

const FloatArray &	giveFVector () const
	Returns the const pointer to receiver's deformation gradient vector. More...

const FloatArray &	giveTempStrainVector () const
	Returns the const pointer to receiver's temporary strain vector. More...

const FloatArray &	giveTempStressVector () const
	Returns the const pointer to receiver's temporary stress vector. More...

const FloatArray &	giveTempPVector () const
	Returns the const pointer to receiver's temporary first Piola-Kirchhoff stress vector. More...

const FloatArray &	giveTempCVector () const
	Returns the const pointer to receiver's temporary Cauchy stress vector. More...

const FloatArray &	giveTempFVector () const
	Returns the const pointer to receiver's temporary deformation gradient vector. More...

void	letStrainVectorBe (const FloatArray &v)
	Assigns strain vector to given vector v. More...

void	letStressVectorBe (const FloatArray &v)
	Assigns stressVector to given vector v. More...

void	letPVectorBe (const FloatArray &v)
	Assigns PVector to given vector v. More...

void	letCVectorBe (const FloatArray &v)
	Assigns CVector to given vector v. More...

void	letFVectorBe (const FloatArray &v)
	Assigns FVector to given vector v. More...

void	letTempStressVectorBe (const FloatArray &v)
	Assigns tempStressVector to given vector v. More...

void	letTempStrainVectorBe (const FloatArray &v)
	Assigns tempStrainVector to given vector v. More...

void	letTempPVectorBe (const FloatArray &v)
	Assigns tempPVector to given vector v. More...

void	letTempCVectorBe (const FloatArray &v)
	Assigns tempPVector to given vector v. More...

void	letTempFVectorBe (const FloatArray &v)
	Assigns tempFVector to given vector v. More...

virtual void	copyStateVariables (const MaterialStatus &iStatus)
	Functions for MaterialStatusMapperInterface. More...

virtual void	addStateVariables (const MaterialStatus &iStatus)

Public Member Functions inherited from oofem::MaterialStatus
	MaterialStatus (int n, Domain d, GaussPoint g)
	Constructor. More...

virtual	~MaterialStatus ()
	Destructor. More...

virtual bool	giveMaterialProperty (int propID, double &value)
	Returns the value of material model property stored in receiving status. More...

virtual void	setMaterialProperty (int propID, double value)
	Allows to set the value of material model property to be stored in receiving status. More...

virtual void	setStatusVariable (int varID, double value)
	Allows to set the value of a specific variable, identified by varID. More...

virtual void	restoreConsistency ()
	Restores consistency of the status, i.e., computes or corrects the values of certain status variables such that the state is admissible. More...

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

Public Member Functions inherited from oofem::IntegrationPointStatus
	IntegrationPointStatus (int n, Domain d, GaussPoint g)
	Constructor. More...

virtual	~IntegrationPointStatus ()
	Destructor. More...

virtual const char *	giveInputRecordName () const

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Public Member Functions inherited from oofem::MaterialStatusMapperInterface
	MaterialStatusMapperInterface ()

virtual	~MaterialStatusMapperInterface ()

virtual int	MSMI_map (const GaussPoint &iGP, const Domain &iOldDom, Set &sourceSet, const TimeStep &iTStep, MaterialStatus &oStatus)
	Maps all internal state variables from the old domain to the given gp status. More...

virtual int	MSMI_map_cz (const GaussPoint &iGP, const Domain &iOldDom, Set &sourceSet, const TimeStep &iTStep, MaterialStatus &oStatus)

virtual int	MSMI_update (const GaussPoint &iGP, const TimeStep &iTStep)
	Updates the internal state variables from previously mapped values. More...

virtual int	MSMI_finish (const TimeStep &iTStep)
	Finishes the mapping for given time step. More...

Protected Attributes
FloatArray	plasticStrainVector
	Plastic strain vector. More...

FloatArray	tempPlasticStrainVector

FloatArray	strainSpaceHardeningVarsVector
	Strain space hardening variables. More...

FloatArray	tempStrainSpaceHardeningVarsVector

int	state_flag
	Yield function status indicator. More...

int	temp_state_flag

FloatArray	gamma
	Consistency parameter values (needed for algorithmic stiffness). More...

FloatArray	tempGamma

IntArray	activeConditionMap
	Active set of yield functions (needed for algorithmic stiffness). More...

IntArray	tempActiveConditionMap

Protected Attributes inherited from oofem::StructuralMaterialStatus
FloatArray	strainVector
	Equilibrated strain vector in reduced form. More...

FloatArray	stressVector
	Equilibrated stress vector in reduced form. More...

FloatArray	tempStressVector
	Temporary stress vector in reduced form (increments are used mainly in nonlinear analysis) More...

FloatArray	tempStrainVector
	Temporary strain vector in reduced form (to find balanced state) More...

FloatArray	PVector
	Equilibrated first Piola-Kirchhoff stress vector. More...

FloatArray	tempPVector
	Temporary first Piola-Kirchhoff stress vector (to find balanced state) More...

FloatArray	CVector
	Equilibrated Cauchy stress vector. More...

FloatArray	tempCVector
	Temporary Cauchy stress vector (to find balanced state) More...

FloatArray	FVector
	Equilibrated deformation gradient in reduced form. More...

FloatArray	tempFVector
	Temporary deformation gradient in reduced form (to find balanced state) More...

Protected Attributes inherited from oofem::IntegrationPointStatus
GaussPoint *	gp
	Associated integration point. More...

Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Protected Attributes inherited from oofem::MaterialStatusMapperInterface
MaterialMappingAlgorithm *	mpMaterialMapper

Detailed Description

This class implements associated Material Status to MPlasticMaterial.

It is attribute of matStatusDictionary at every GaussPoint, for which this material is active.

Idea used there is that we have variables describing:

state at previous equilibrium state (variables without temp)
state during searching new equilibrium (variables with temp) when we start search new state from previous equilibrium one we copy non-temp variables into temp ones. And after we reach new equilibrium (now described by temp variables) we copy temp-var into non-temp ones (see function updateYourself).

Definition at line 64 of file mplasticmaterial.h.

Member Enumeration Documentation

enum oofem::MPlasticMaterialStatus::state_flag_values

Enumerator
PM_Elastic
PM_Yielding
PM_Unloading

Definition at line 67 of file mplasticmaterial.h.

Constructor & Destructor Documentation

oofem::MPlasticMaterialStatus::MPlasticMaterialStatus	(	int	n,
		Domain *	d,
		GaussPoint *	g,
		int	statusSize
	)

Definition at line 1359 of file mplasticmaterial.C.

References PM_Elastic, state_flag, and temp_state_flag.

oofem::MPlasticMaterialStatus::~MPlasticMaterialStatus ( )

virtual

Definition at line 1369 of file mplasticmaterial.C.

Member Function Documentation

virtual const char* oofem::MPlasticMaterialStatus::giveClassName ( ) const

inlinevirtual

Returns: Class name of the receiver.

Reimplemented from oofem::StructuralMaterialStatus.

Definition at line 129 of file mplasticmaterial.h.

const FloatArray& oofem::MPlasticMaterialStatus::givePlasticStrainVector ( ) const

inline

Returns the equilibrated strain vector.

Definition at line 100 of file mplasticmaterial.h.

References plasticStrainVector.

Referenced by oofem::MPlasticMaterial::closestPointReturn(), oofem::MPlasticMaterial::computeResidualVector(), oofem::MPlasticMaterial::cuttingPlaneReturn(), and oofem::MPlasticMaterial::giveIPValue().

int oofem::MPlasticMaterialStatus::giveStateFlag ( )

inline

Definition at line 119 of file mplasticmaterial.h.

References state_flag.

Referenced by oofem::MPlasticMaterial::giveRealStressVector().

const FloatArray& oofem::MPlasticMaterialStatus::giveStrainSpaceHardeningVars ( ) const

inline

Returns the equilibrated hardening variable vector.

Definition at line 104 of file mplasticmaterial.h.

References strainSpaceHardeningVarsVector.

Referenced by oofem::MPlasticMaterial::closestPointReturn(), oofem::MPlasticMaterial::computeResidualVector(), oofem::MPlasticMaterial::cuttingPlaneReturn(), oofem::MPlasticMaterial::giveConsistentStiffnessMatrix(), and oofem::MPlasticMaterial::giveElastoPlasticStiffnessMatrix().

const IntArray& oofem::MPlasticMaterialStatus::giveTempActiveConditionMap ( )

inline

Definition at line 123 of file mplasticmaterial.h.

References tempActiveConditionMap.

Referenced by oofem::MPlasticMaterial::giveConsistentStiffnessMatrix(), and oofem::MPlasticMaterial::giveElastoPlasticStiffnessMatrix().

const FloatArray& oofem::MPlasticMaterialStatus::giveTempGamma ( )

inline

Definition at line 125 of file mplasticmaterial.h.

References tempGamma.

Referenced by oofem::MPlasticMaterial::giveConsistentStiffnessMatrix().

const FloatArray& oofem::MPlasticMaterialStatus::giveTempPlasticStrainVector ( ) const

inline

Returns the actual (temp) strain vector.

Definition at line 102 of file mplasticmaterial.h.

References tempPlasticStrainVector.

int oofem::MPlasticMaterialStatus::giveTempStateFlag ( )

inline

Definition at line 120 of file mplasticmaterial.h.

References temp_state_flag.

Referenced by oofem::MPlasticMaterial::giveConsistentStiffnessMatrix(), and oofem::MPlasticMaterial::giveElastoPlasticStiffnessMatrix().

const FloatArray& oofem::MPlasticMaterialStatus::givetempStrainSpaceHardeningVarsVector ( ) const

inline

Returns the actual (temp) hardening variable vector.

Definition at line 107 of file mplasticmaterial.h.

References tempStrainSpaceHardeningVarsVector.

void oofem::MPlasticMaterialStatus::initTempStatus ( )

virtual

Initializes the temporary internal variables, describing the current state according to previously reached equilibrium internal variables.

Reimplemented from oofem::StructuralMaterialStatus.

Definition at line 1402 of file mplasticmaterial.C.

References activeConditionMap, gamma, oofem::GaussPoint::giveMaterialMode(), oofem::FloatArray::giveSize(), oofem::StructuralMaterial::giveSizeOfVoigtSymVector(), oofem::IntegrationPointStatus::gp, oofem::StructuralMaterialStatus::initTempStatus(), plasticStrainVector, oofem::FloatArray::resize(), strainSpaceHardeningVarsVector, tempActiveConditionMap, tempGamma, tempPlasticStrainVector, tempStrainSpaceHardeningVarsVector, and oofem::FloatArray::zero().

void oofem::MPlasticMaterialStatus::letPlasticStrainVectorBe ( FloatArray v )

inline

Definition at line 110 of file mplasticmaterial.h.

void oofem::MPlasticMaterialStatus::letStrainSpaceHardeningVarsVectorBe ( FloatArray v )

inline

Definition at line 116 of file mplasticmaterial.h.

void oofem::MPlasticMaterialStatus::letTempPlasticStrainVectorBe ( FloatArray v )

inline

Definition at line 112 of file mplasticmaterial.h.

Referenced by oofem::MPlasticMaterial::giveRealStressVector().

void oofem::MPlasticMaterialStatus::letTempStateFlagBe ( int v )

inline

Definition at line 121 of file mplasticmaterial.h.

Referenced by oofem::MPlasticMaterial::giveRealStressVector().

void oofem::MPlasticMaterialStatus::letTempStrainSpaceHardeningVarsVectorBe ( FloatArray v )

inline

Definition at line 114 of file mplasticmaterial.h.

Referenced by oofem::MPlasticMaterial::giveRealStressVector().

void oofem::MPlasticMaterialStatus::printOutputAt	(	FILE *	file,
		TimeStep *	tStep
	)

virtual

Print receiver's output to given stream.

Reimplemented from oofem::StructuralMaterialStatus.

Definition at line 1374 of file mplasticmaterial.C.

References oofem::FloatArray::giveSize(), plasticStrainVector, PM_Unloading, PM_Yielding, oofem::StructuralMaterialStatus::printOutputAt(), state_flag, and strainSpaceHardeningVarsVector.

contextIOResultType oofem::MPlasticMaterialStatus::restoreContext	(	DataStream &	stream,
		ContextMode	mode,
		void *	obj = `NULL`
	)

virtual

Restores the receiver state previously written in stream.

See also: saveContext

Parameters

stream	Input stream.
mode	Determines amount of info available in stream (state, definition, ...).
obj	Special parameter for sending extra information.

Returns: contextIOResultType.

Exceptions

throws an ContextIOERR exception if error encountered.

Reimplemented from oofem::StructuralMaterialStatus.

Definition at line 1484 of file mplasticmaterial.C.

References activeConditionMap, oofem::CIO_IOERR, oofem::CIO_OK, gamma, plasticStrainVector, oofem::DataStream::read(), oofem::StructuralMaterialStatus::restoreContext(), oofem::IntArray::restoreYourself(), oofem::FloatArray::restoreYourself(), state_flag, strainSpaceHardeningVarsVector, and THROW_CIOERR.

contextIOResultType oofem::MPlasticMaterialStatus::saveContext	(	DataStream &	stream,
		ContextMode	mode,
		void *	obj = `NULL`
	)

virtual

Stores receiver state to output stream.

Parameters

stream	Output stream.
mode	Determines amount of info required in stream (state, definition, ...).
obj	Special parameter, used only to send particular integration point to material class version of this method.
