oofem::IntMatBilinearCZJanssonStatus Class Reference

This class implements associated Material Status for IntMatBilinearCZJansson. More...

#include <intmatbilinczjansson.h>

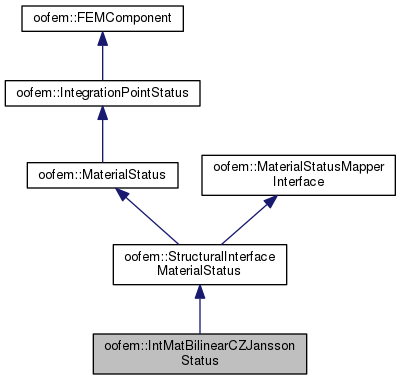

Inheritance diagram for oofem::IntMatBilinearCZJanssonStatus:

Collaboration diagram for oofem::IntMatBilinearCZJanssonStatus:

Public Member Functions
	IntMatBilinearCZJanssonStatus (int n, Domain *d, GaussPoint *g)
	Constructor. More...
virtual	~IntMatBilinearCZJanssonStatus ()
	Destructor. More...
virtual void	printOutputAt (FILE *file, TimeStep *tStep)
	Print receiver's output to given stream. More...
virtual const char *	giveClassName () const
double	giveDamage ()
double	giveTempDamage ()
bool	giveOldDamageDev ()
const FloatArray &	giveOldMaterialJump ()
const FloatArray &	giveTempMaterialJump ()
const FloatArray &	giveEffectiveMandelTraction ()
const FloatArray &	giveTempEffectiveMandelTraction ()
const FloatMatrix &	giveTempInverseDefGrad ()
const FloatMatrix &	giveTempRotationMatrix ()
const FloatMatrix &	giveTempIep ()
const FloatArray &	giveTempAlphav ()
const FloatMatrix &	giveOlddTdJ ()
void	letTempDamageBe (double v)
void	letTempEffectiveMandelTractionBe (FloatArray v)
void	letTempMaterialJumpBe (FloatArray v)
void	letTempDamageDevBe (bool v)
void	letOldDamageDevBe (bool v)
void	letTempdTdJBe (FloatMatrix &v)
void	letTempInverseDefGradBe (FloatMatrix v)
void	letTempRotationMatrix (FloatMatrix v)
void	letTempIepBe (FloatMatrix v)
void	letTempAlphavBe (FloatArray v)
virtual void	initTempStatus ()
	Initializes the temporary internal variables, describing the current state according to previously reached equilibrium internal variables. More...
virtual void	updateYourself (TimeStep *tStep)
	Update equilibrium history variables according to temp-variables. More...
Public Member Functions inherited from oofem::StructuralInterfaceMaterialStatus
	StructuralInterfaceMaterialStatus (int n, Domain *d, GaussPoint *g)
	Constructor. Creates new StructuralInterfaceMaterialStatus with number n, belonging to domain d and IntegrationPoint g. More...
virtual	~StructuralInterfaceMaterialStatus ()
	Destructor. More...
virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...
virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...
const FloatArray &	giveJump () const
	Returns the const pointer to receiver's jump. More...
const FloatArray &	giveTraction () const
	Returns the const pointer to receiver's traction vector. More...
const FloatArray &	giveFirstPKTraction () const
	Returns the const pointer to receiver's first Piola-Kirchhoff traction vector. More...
const FloatMatrix &	giveF () const
	Returns the const pointer to receiver's deformation gradient vector. More...
const FloatArray &	giveTempJump () const
	Returns the const pointer to receiver's temporary jump. More...
const FloatArray &	giveTempTraction () const
	Returns the const pointer to receiver's temporary traction vector. More...
const FloatArray &	giveTempFirstPKTraction () const
	Returns the const pointer to receiver's temporary first Piola-Kirchhoff traction vector. More...
const FloatMatrix &	giveTempF () const
	Returns the const pointer to receiver's temporary deformation gradient vector. More...
const FloatArray &	giveNormal () const
	Returns const reference to normal vector. More...
const FloatArray &	giveProjectedTraction () const
	Returns the projected traction. More...
void	letJumpBe (FloatArray v)
	Assigns jump to given vector v. More...
void	letTractionBe (FloatArray v)
	Assigns traction to given vector v. More...
void	letFirstPKTractionBe (FloatArray v)
	Assigns firstPKTraction to given vector v. More...
void	letFBe (FloatMatrix v)
	Assigns FVector to given vector v. More...
void	letTempTractionBe (FloatArray v)
	Assigns tempTraction to given vector v. More...
void	letTempJumpBe (FloatArray v)
	Assigns tempJump to given vector v. More...
void	letTempFirstPKTractionBe (FloatArray v)
	Assigns tempFirstPKTraction to given vector v. More...
void	letTempFBe (FloatMatrix v)
	Assigns tempFVector to given vector v. More...
void	letNormalBe (FloatArray iN)
	Assigns normal vector. More...
void	letProjectedTractionBe (FloatArray iProjectedTraction)
	Assigns projeted traction. More...
virtual void	copyStateVariables (const MaterialStatus &iStatus)
	Functions for MaterialStatusMapperInterface. More...
virtual void	addStateVariables (const MaterialStatus &iStatus)
bool	giveNewlyInserted () const
void	setNewlyInserted (bool iNewlyInserted)
Public Member Functions inherited from oofem::MaterialStatus
	MaterialStatus (int n, Domain *d, GaussPoint *g)
	Constructor. More...
virtual	~MaterialStatus ()
	Destructor. More...
virtual bool	giveMaterialProperty (int propID, double &value)
	Returns the value of material model property stored in receiving status. More...
virtual void	setMaterialProperty (int propID, double value)
	Allows to set the value of material model property to be stored in receiving status. More...
virtual void	setStatusVariable (int varID, double value)
	Allows to set the value of a specific variable, identified by varID. More...
virtual void	restoreConsistency ()
	Restores consistency of the status, i.e., computes or corrects the values of certain status variables such that the state is admissible. More...
virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...
Public Member Functions inherited from oofem::IntegrationPointStatus
	IntegrationPointStatus (int n, Domain *d, GaussPoint *g)
	Constructor. More...
virtual	~IntegrationPointStatus ()
	Destructor. More...
virtual const char *	giveInputRecordName () const
Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...
virtual	~FEMComponent ()
	Virtual destructor. More...
Domain *	giveDomain () const
virtual void	setDomain (Domain *d)
	Sets associated Domain. More...
int	giveNumber () const
void	setNumber (int num)
	Sets number of receiver. More...
virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...
virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...
virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...
virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...
virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...
std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...
Public Member Functions inherited from oofem::MaterialStatusMapperInterface
	MaterialStatusMapperInterface ()
virtual	~MaterialStatusMapperInterface ()
virtual int	MSMI_map (const GaussPoint &iGP, const Domain &iOldDom, Set &sourceSet, const TimeStep &iTStep, MaterialStatus &oStatus)
	Maps all internal state variables from the old domain to the given gp status. More...
virtual int	MSMI_map_cz (const GaussPoint &iGP, const Domain &iOldDom, Set &sourceSet, const TimeStep &iTStep, MaterialStatus &oStatus)
virtual int	MSMI_update (const GaussPoint &iGP, const TimeStep &iTStep)
	Updates the internal state variables from previously mapped values. More...
virtual int	MSMI_finish (const TimeStep &iTStep)
	Finishes the mapping for given time step. More...

Protected Attributes
FloatArray	oldMaterialJump
FloatArray	tempMaterialJump
double	damage
double	tempDamage
FloatArray	QEffective
FloatArray	tempQEffective
FloatMatrix	tempFInv
FloatMatrix	tempRot
FloatMatrix	Iep
FloatArray	alphav
bool	tempDamageDev
bool	oldDamageDev
FloatMatrix	temp_dTdJ
FloatMatrix	old_dTdJ
Protected Attributes inherited from oofem::StructuralInterfaceMaterialStatus
FloatArray	jump
	Equilibrated jump (discontinuity) More...
FloatArray	traction
	Equilibrated (engineering) traction vector. More...
FloatArray	tempTraction
	Temporary (engineering) traction vector. More...
FloatArray	tempJump
	Temporary jump (discontinuity) More...
FloatArray	firstPKTraction
	Equilibrated first Piola-Kirchhoff traction vector T. More...
FloatArray	tempFirstPKTraction
	Temporary first Piola-Kirchhoff traction vector (to find balanced state) More...
FloatMatrix	F
	Equilibrated deformation gradient in reduced form. More...
FloatMatrix	tempF
	Temporary deformation gradient in reduced form (to find balanced state) More...
FloatArray	mNormalDir
	Interface normal direction. More...
bool	mNewlyInserted
FloatArray	projectedTraction
Protected Attributes inherited from oofem::IntegrationPointStatus
GaussPoint *	gp
	Associated integration point. More...
Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...
Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...
Protected Attributes inherited from oofem::MaterialStatusMapperInterface
MaterialMappingAlgorithm *	mpMaterialMapper

Detailed Description

This class implements associated Material Status for IntMatBilinearCZJansson.

Definition at line 59 of file intmatbilinczjansson.h.

Constructor & Destructor Documentation

oofem::IntMatBilinearCZJanssonStatus::IntMatBilinearCZJanssonStatus	(	int	n,
		Domain *	d,
		GaussPoint *	g
	)

Constructor.

Definition at line 509 of file intmatbilinczjansson.C.

References alphav, oofem::FloatArray::at(), oofem::FloatMatrix::beUnitMatrix(), oofem::FloatArray::beVectorProductOf(), oofem::FloatMatrix::copyColumn(), damage, oofem::Shell7Base::evalInitialCovarBaseVectorsAt(), oofem::GaussPoint::giveElement(), oofem::IntegrationPointStatus::gp, Iep, N, oofem::FloatArray::normalize(), old_dTdJ, oldDamageDev, oldMaterialJump, OOFEM_ERROR, QEffective, oofem::FloatArray::resize(), oofem::FloatMatrix::resize(), oofem::FloatMatrix::setColumn(), tempDamage, tempFInv, tempMaterialJump, tempQEffective, tempRot, oofem::FloatArray::zero(), and oofem::FloatMatrix::zero().

Referenced by oofem::IntMatBilinearCZJansson::CreateStatus().

oofem::IntMatBilinearCZJanssonStatus::~IntMatBilinearCZJanssonStatus ( )

virtual

Destructor.

Definition at line 564 of file intmatbilinczjansson.C.

Member Function Documentation

virtual const char* oofem::IntMatBilinearCZJanssonStatus::giveClassName ( ) const

inlinevirtual

Returns

Class name of the receiver.

Reimplemented from oofem::StructuralInterfaceMaterialStatus.

Definition at line 107 of file intmatbilinczjansson.h.

double oofem::IntMatBilinearCZJanssonStatus::giveDamage ( )

inlinevirtual

Reimplemented from oofem::StructuralInterfaceMaterialStatus.

Definition at line 109 of file intmatbilinczjansson.h.

References damage.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj(), and oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

const FloatArray& oofem::IntMatBilinearCZJanssonStatus::giveEffectiveMandelTraction ( )

inline

Definition at line 116 of file intmatbilinczjansson.h.

References QEffective.

Referenced by oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

bool oofem::IntMatBilinearCZJanssonStatus::giveOldDamageDev ( )

inline

Definition at line 111 of file intmatbilinczjansson.h.

References oldDamageDev.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj().

const FloatMatrix& oofem::IntMatBilinearCZJanssonStatus::giveOlddTdJ ( )

inline

Definition at line 123 of file intmatbilinczjansson.h.

References old_dTdJ.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj().

const FloatArray& oofem::IntMatBilinearCZJanssonStatus::giveOldMaterialJump ( )

inline

Definition at line 113 of file intmatbilinczjansson.h.

References oldMaterialJump.

Referenced by oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

const FloatArray& oofem::IntMatBilinearCZJanssonStatus::giveTempAlphav ( )

inline

Definition at line 122 of file intmatbilinczjansson.h.

References alphav.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj().

double oofem::IntMatBilinearCZJanssonStatus::giveTempDamage ( )

inlinevirtual

Reimplemented from oofem::StructuralInterfaceMaterialStatus.

Definition at line 110 of file intmatbilinczjansson.h.

References tempDamage.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj(), and oofem::IntMatBilinearCZJansson::giveIPValue().

const FloatArray& oofem::IntMatBilinearCZJanssonStatus::giveTempEffectiveMandelTraction ( )

inline

Definition at line 117 of file intmatbilinczjansson.h.

References tempQEffective.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj().

const FloatMatrix& oofem::IntMatBilinearCZJanssonStatus::giveTempIep ( )

inline

Definition at line 121 of file intmatbilinczjansson.h.

References Iep.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj().

const FloatMatrix& oofem::IntMatBilinearCZJanssonStatus::giveTempInverseDefGrad ( )

inline

Definition at line 119 of file intmatbilinczjansson.h.

References tempFInv.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj().

const FloatArray& oofem::IntMatBilinearCZJanssonStatus::giveTempMaterialJump ( )

inline

Definition at line 114 of file intmatbilinczjansson.h.

References tempMaterialJump.

const FloatMatrix& oofem::IntMatBilinearCZJanssonStatus::giveTempRotationMatrix ( )

inline

Definition at line 120 of file intmatbilinczjansson.h.

References tempRot.

void oofem::IntMatBilinearCZJanssonStatus::initTempStatus ( )

virtual

Initializes the temporary internal variables, describing the current state according to previously reached equilibrium internal variables.

Reimplemented from oofem::StructuralInterfaceMaterialStatus.

Definition at line 585 of file intmatbilinczjansson.C.

References alphav, oofem::FloatMatrix::at(), damage, Iep, oofem::StructuralInterfaceMaterialStatus::initTempStatus(), oldMaterialJump, QEffective, oofem::FloatMatrix::resize(), tempDamage, tempDamageDev, tempFInv, tempMaterialJump, tempQEffective, and oofem::FloatMatrix::zero().

Referenced by letTempAlphavBe().

void oofem::IntMatBilinearCZJanssonStatus::letOldDamageDevBe ( bool  v )

inline

Definition at line 130 of file intmatbilinczjansson.h.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj().

void oofem::IntMatBilinearCZJanssonStatus::letTempAlphavBe ( FloatArray  v )

inline

Definition at line 137 of file intmatbilinczjansson.h.

References initTempStatus(), and updateYourself().

Referenced by oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

void oofem::IntMatBilinearCZJanssonStatus::letTempDamageBe ( double  v )

inline

Definition at line 126 of file intmatbilinczjansson.h.

Referenced by oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

void oofem::IntMatBilinearCZJanssonStatus::letTempDamageDevBe ( bool  v )

inline

Definition at line 129 of file intmatbilinczjansson.h.

Referenced by oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

void oofem::IntMatBilinearCZJanssonStatus::letTempdTdJBe ( FloatMatrix &  v )

inline

Definition at line 132 of file intmatbilinczjansson.h.

Referenced by oofem::IntMatBilinearCZJansson::give3dStiffnessMatrix_dTdj().

void oofem::IntMatBilinearCZJanssonStatus::letTempEffectiveMandelTractionBe ( FloatArray  v )

inline

Definition at line 127 of file intmatbilinczjansson.h.

Referenced by oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

void oofem::IntMatBilinearCZJanssonStatus::letTempIepBe ( FloatMatrix  v )

inline

Definition at line 136 of file intmatbilinczjansson.h.

Referenced by oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

void oofem::IntMatBilinearCZJanssonStatus::letTempInverseDefGradBe ( FloatMatrix  v )

inline

Definition at line 134 of file intmatbilinczjansson.h.

Referenced by oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

void oofem::IntMatBilinearCZJanssonStatus::letTempMaterialJumpBe ( FloatArray  v )

inline

Definition at line 128 of file intmatbilinczjansson.h.

Referenced by oofem::IntMatBilinearCZJansson::giveFirstPKTraction_3d().

void oofem::IntMatBilinearCZJanssonStatus::letTempRotationMatrix ( FloatMatrix  v )

inline

Definition at line 135 of file intmatbilinczjansson.h.

void oofem::IntMatBilinearCZJanssonStatus::printOutputAt ( FILE *  file, TimeStep *  tStep  )

virtual

Print receiver's output to given stream.

Todo:

Martin: check need of this

Reimplemented from oofem::StructuralInterfaceMaterialStatus.

Definition at line 569 of file intmatbilinczjansson.C.

References oofem::StructuralInterfaceMaterialStatus::printOutputAt().

void oofem::IntMatBilinearCZJanssonStatus::updateYourself ( TimeStep *  )

virtual

Update equilibrium history variables according to temp-variables.

Invoked, after new equilibrium state has been reached.

Reimplemented from oofem::StructuralInterfaceMaterialStatus.

Definition at line 607 of file intmatbilinczjansson.C.

References damage, old_dTdJ, oldDamageDev, oldMaterialJump, QEffective, temp_dTdJ, tempDamage, tempDamageDev, tempMaterialJump, tempQEffective, and oofem::StructuralInterfaceMaterialStatus::updateYourself().

Referenced by letTempAlphavBe().

Member Data Documentation

FloatArray oofem::IntMatBilinearCZJanssonStatus::alphav

protected

Definition at line 86 of file intmatbilinczjansson.h.

Referenced by giveTempAlphav(), initTempStatus(), and IntMatBilinearCZJanssonStatus().

double oofem::IntMatBilinearCZJanssonStatus::damage

protected

Definition at line 69 of file intmatbilinczjansson.h.

Referenced by giveDamage(), initTempStatus(), IntMatBilinearCZJanssonStatus(), and updateYourself().

FloatMatrix oofem::IntMatBilinearCZJanssonStatus::Iep

protected

Definition at line 85 of file intmatbilinczjansson.h.

Referenced by giveTempIep(), initTempStatus(), and IntMatBilinearCZJanssonStatus().

FloatMatrix oofem::IntMatBilinearCZJanssonStatus::old_dTdJ

protected

Definition at line 94 of file intmatbilinczjansson.h.

Referenced by giveOlddTdJ(), IntMatBilinearCZJanssonStatus(), and updateYourself().

bool oofem::IntMatBilinearCZJanssonStatus::oldDamageDev

protected

Definition at line 90 of file intmatbilinczjansson.h.

Referenced by giveOldDamageDev(), IntMatBilinearCZJanssonStatus(), and updateYourself().

FloatArray oofem::IntMatBilinearCZJanssonStatus::oldMaterialJump

protected

Definition at line 64 of file intmatbilinczjansson.h.

Referenced by giveOldMaterialJump(), initTempStatus(), IntMatBilinearCZJanssonStatus(), and updateYourself().

FloatArray oofem::IntMatBilinearCZJanssonStatus::QEffective

protected

Definition at line 74 of file intmatbilinczjansson.h.

Referenced by giveEffectiveMandelTraction(), initTempStatus(), IntMatBilinearCZJanssonStatus(), and updateYourself().

FloatMatrix oofem::IntMatBilinearCZJanssonStatus::temp_dTdJ

protected

Definition at line 93 of file intmatbilinczjansson.h.

Referenced by updateYourself().

double oofem::IntMatBilinearCZJanssonStatus::tempDamage

protected

Definition at line 71 of file intmatbilinczjansson.h.

Referenced by giveTempDamage(), initTempStatus(), IntMatBilinearCZJanssonStatus(), and updateYourself().

bool oofem::IntMatBilinearCZJanssonStatus::tempDamageDev

protected

Definition at line 89 of file intmatbilinczjansson.h.

Referenced by initTempStatus(), and updateYourself().

FloatMatrix oofem::IntMatBilinearCZJanssonStatus::tempFInv

protected

Definition at line 79 of file intmatbilinczjansson.h.

Referenced by giveTempInverseDefGrad(), initTempStatus(), and IntMatBilinearCZJanssonStatus().

FloatArray oofem::IntMatBilinearCZJanssonStatus::tempMaterialJump

protected

Definition at line 66 of file intmatbilinczjansson.h.

Referenced by giveTempMaterialJump(), initTempStatus(), IntMatBilinearCZJanssonStatus(), and updateYourself().

FloatArray oofem::IntMatBilinearCZJanssonStatus::tempQEffective

protected

Definition at line 76 of file intmatbilinczjansson.h.

Referenced by giveTempEffectiveMandelTraction(), initTempStatus(), IntMatBilinearCZJanssonStatus(), and updateYourself().

FloatMatrix oofem::IntMatBilinearCZJanssonStatus::tempRot

protected

Definition at line 82 of file intmatbilinczjansson.h.

Referenced by giveTempRotationMatrix(), and IntMatBilinearCZJanssonStatus().

---

The documentation for this class was generated from the following files:

• intmatbilinczjansson.h
• intmatbilinczjansson.C
