#include <hydram.h>

Inheritance diagram for oofem::HydrationModel:

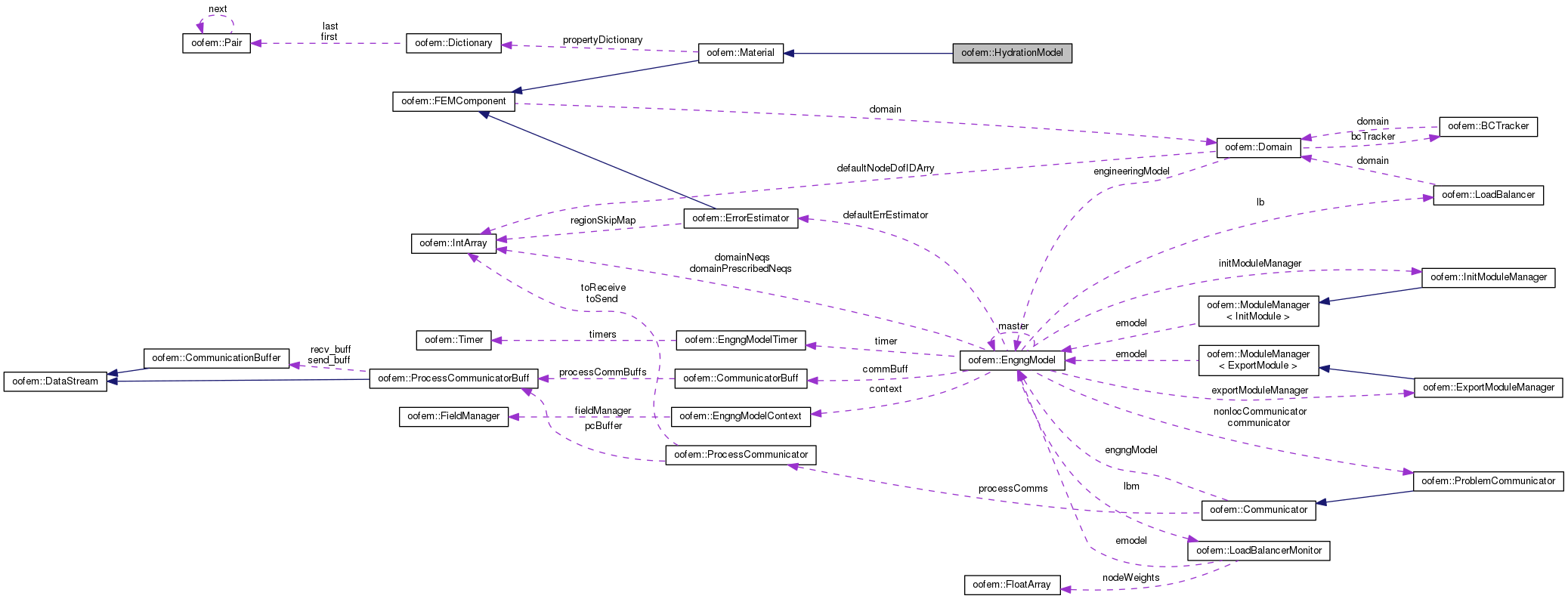

Collaboration diagram for oofem::HydrationModel:

Public Member Functions
	HydrationModel ()
	Constructor. More...

	HydrationModel (MixtureType mix, FindRootMethod usefr)
	Constructor setting the mixture type and root-finding method. More...

virtual	~HydrationModel ()
	Destructor. More...

void	setMixture (MixtureType mix)
	Sets the mixture type and appropriate material parameters. More...

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes the hydration model according to object description stored in input record. More...

double	giveHydrationDegree (GaussPoint gp, TimeStep tStep, ValueModeType mode)
	Returns the hydration degree at end of TimeStep tStep in given integraion point. More...

virtual void	updateInternalState (const FloatArray &vec, GaussPoint gp, TimeStep tStep)
	Updates internal state of material according to new state vector - computes the hydration degree for time tStep. More...

virtual MaterialStatus *	giveStatus (GaussPoint *gp) const
	Returns material status of receiver in given integration point. More...

void	computeInternalSourceVector (FloatArray &val, GaussPoint gp, TimeStep tStep, ValueModeType mode)
	Returns generated heat for given gp [kJ/m3], eventually water consumption. More...

virtual double	giveCharacteristicValue (const FloatArray &vec, MatResponseMode rmode, GaussPoint gp, TimeStep tStep)
	Returns coefficients for LHS contribution from internal sources (dHeat/dT, dWaterSource/dw) for given temp state vector. More...

virtual const char *	giveInputRecordName () const

virtual const char *	giveClassName () const

Public Member Functions inherited from oofem::Material
	Material (int n, Domain *d)
	Constructor. More...

virtual	~Material ()
	Destructor. More...

virtual bool	isCharacteristicMtrxSymmetric (MatResponseMode rMode)
	Returns true if stiffness matrix of receiver is symmetric Default implementation returns true. More...

virtual double	give (int aProperty, GaussPoint *gp)
	Returns the value of material property 'aProperty'. More...

virtual bool	hasProperty (int aProperty, GaussPoint *gp)
	Returns true if 'aProperty' exists on material. More...

virtual void	modifyProperty (int aProperty, double value, GaussPoint *gp)
	Modify 'aProperty', which already exists on material. More...

double	giveCastingTime ()

virtual bool	isActivated (TimeStep *tStep)

virtual int	hasNonLinearBehaviour ()
	Returns nonzero if receiver is non linear. More...

virtual int	hasMaterialModeCapability (MaterialMode mode)
	Tests if material supports material mode. More...

virtual int	hasCastingTimeSupport ()
	Tests if material supports casting time. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual contextIOResultType	saveIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
	Stores integration point state to output stream. More...

virtual contextIOResultType	restoreIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
	Reads integration point state to output stream. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual int	initMaterial (Element *element)
	Optional function to call specific procedures when initializing a material. More...

virtual int	packUnknowns (DataStream &buff, TimeStep tStep, GaussPoint ip)
	Pack all necessary data of integration point (according to element parallel_mode) into given communication buffer. More...

virtual int	unpackAndUpdateUnknowns (DataStream &buff, TimeStep tStep, GaussPoint ip)
	Unpack and updates all necessary data of given integration point (according to element parallel_mode) into given communication buffer. More...

virtual int	estimatePackSize (DataStream &buff, GaussPoint *ip)
	Estimates the necessary pack size to hold all packed data of receiver. More...

virtual double	predictRelativeComputationalCost (GaussPoint *gp)
	Returns the weight representing relative computational cost of receiver The reference material model is linear isotropic material - its weight is set to 1.0 The other material models should compare to this reference model. More...

virtual double	predictRelativeRedistributionCost (GaussPoint *gp)
	Returns the relative redistribution cost of the receiver. More...

virtual void	initTempStatus (GaussPoint *gp)
	Initializes temporary variables stored in integration point status at the beginning of new time step. More...

virtual int	setIPValue (const FloatArray &value, GaussPoint *gp, InternalStateType type)
	Sets the value of a certain variable at a given integration point to the given value. More...

virtual int	giveIPValue (FloatArray &answer, GaussPoint gp, InternalStateType type, TimeStep tStep)
	Returns the integration point corresponding value in Reduced form. More...

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Prints output of receiver to stream, for given time step. More...

virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Public Attributes
FindRootMethod	useFindRoot

Protected Member Functions
double	localResidual (double dks)

double	regulafindroot ()

double	bintreefindroot ()

double	mixedfindroot ()

double	affinity (double ksi)
	Returns the normalized chemical affinity A~(ksi) [1/s]. More...

double	dAdksi (double ksi)
	Returns the derivation of chemical affinity dA~/dksi(ksi). More...

double	dksidT (double ksi, double T, double h, double dt)

double	dksidh (double ksi, double T, double h, double dt)

double	computeIntSource (const FloatArray &vec, GaussPoint gp, TimeStep tStep, MatResponseMode rmode)
	Computes and returns the derivatives of the material-generated Internal Source with respect to the tm state vector. More...

double	computeHydrationDegreeIncrement (double ksi, double T, double h, double dt)
	Computes and returns hydration degree increment for given ksi, T [K], dt [s]. More...

virtual MaterialStatus *	CreateStatus (GaussPoint *gp) const
	Creates and returns new HydrationModelStatus instance. More...

Protected Attributes
MixtureType	mixture
	Used concrete mixture. More...

double	hydrationStartMaxStep
	Time step lenghts at zero and complete hydration. More...

double	hydrationEndMaxStep

double	initialHydrationDegree
	!! initial hydration degree - set in initialize From, but not used More...

double	timeScale
	time scale - used for time input in other units than seconds More...

double	aa
	Normalized chemical affinity regression function coefficients. More...

double	ba

double	ca

double	da

double	e0
	ksi_0. More...

double	ear
	Activation term [K]. More...

double	le
	Latent heat [kJ/m3]. More...

double	cv
	Input cement content kg/m3 for evaluation of total water consumption. More...

double	we
	Total water consumption for hydration [kg/m3]. More...

double	auxksi
	!! possible problem for parallel computation, performance??? More...

double	auxdt

double	auxT

double	auxh

Protected Attributes inherited from oofem::Material
Dictionary	propertyDictionary
	Property dictionary. More...

double	castingTime
	Casting time. More...

Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Detailed Description

Definition at line 153 of file hydram.h.

Constructor & Destructor Documentation

oofem::HydrationModel::HydrationModel ( )

Constructor.

Definition at line 102 of file hydram.C.

References oofem::frMixed, oofem::mtLafarge, setMixture(), and useFindRoot.

Referenced by oofem::HydrationModelInterface::initializeFrom().

oofem::HydrationModel::HydrationModel	(	MixtureType	mix,
		FindRootMethod	usefr
	)

Constructor setting the mixture type and root-finding method.

Definition at line 109 of file hydram.C.

References oofem::frMixed, OOFEM_ERROR, setMixture(), and useFindRoot.

virtual oofem::HydrationModel::~HydrationModel ( )

inlinevirtual

Destructor.

Definition at line 213 of file hydram.h.

References oofem::HydrationModelStatus::giveHydrationDegree(), oofem::IntegrationPointStatus::gp, and oofem::MaterialStatus::initializeFrom().

Member Function Documentation

double oofem::HydrationModel::affinity ( double ksi )

protected

Returns the normalized chemical affinity A~(ksi) [1/s].

Definition at line 225 of file hydram.C.

References aa, ba, ca, da, and e0.

Referenced by dksidh(), dksidT(), and localResidual().

double oofem::HydrationModel::bintreefindroot ( )

protected

Definition at line 505 of file hydram.C.

References localResidual(), OOFEM_LOG_INFO, and ROOT_PRECISION_DKSI.

Referenced by computeHydrationDegreeIncrement().

double oofem::HydrationModel::computeHydrationDegreeIncrement	(	double	ksi,
		double	T,
		double	h,
		double	dt
	)

protected

Computes and returns hydration degree increment for given ksi, T [K], dt [s].

Called by updateInternalState(val, gp, tStep)

Note: Formerly dksi, maybe should be changed to use gp & timestep.

Definition at line 347 of file hydram.C.

References auxdt, auxh, auxksi, auxT, bintreefindroot(), oofem::frBinTree, oofem::frMixed, oofem::frRegula, mixedfindroot(), OOFEM_ERROR, OOFEM_LOG_INFO, regulafindroot(), and useFindRoot.

Referenced by updateInternalState().

void oofem::HydrationModel::computeInternalSourceVector	(	FloatArray &	val,
		GaussPoint *	gp,
		TimeStep *	tStep,
		ValueModeType	mode
	)

Returns generated heat for given gp [kJ/m3], eventually water consumption.

Definition at line 313 of file hydram.C.

References giveHydrationDegree(), le, oofem::FloatArray::resize(), and we.

double oofem::HydrationModel::computeIntSource	(	const FloatArray &	vec,
		GaussPoint *	gp,
		TimeStep *	tStep,
		MatResponseMode	rmode
	)

protected

Computes and returns the derivatives of the material-generated Internal Source with respect to the tm state vector.

Definition at line 386 of file hydram.C.

References dksidh(), dksidT(), giveHydrationDegree(), oofem::TimeStep::giveTimeIncrement(), le, OOFEM_ERROR, timeScale, and we.

Referenced by giveCharacteristicValue().

MaterialStatus * oofem::HydrationModel::CreateStatus ( GaussPoint * gp ) const

protectedvirtual

Creates and returns new HydrationModelStatus instance.

Reimplemented from oofem::Material.

Definition at line 574 of file hydram.C.

References oofem::FEMComponent::giveDomain().

Referenced by giveStatus().

double oofem::HydrationModel::dAdksi ( double ksi )

protected

Returns the derivation of chemical affinity dA~/dksi(ksi).

Definition at line 236 of file hydram.C.

References aa, ba, ca, da, and e0.

Referenced by dksidh(), and dksidT().

double oofem::HydrationModel::dksidh	(	double	ksi,
		double	T,
		double	h,
		double	dt
	)

protected

Definition at line 277 of file hydram.C.

References affinity(), dAdksi(), and ear.

Referenced by computeIntSource().

double oofem::HydrationModel::dksidT	(	double	ksi,
		double	T,
		double	h,
		double	dt
	)

protected

Definition at line 260 of file hydram.C.

References affinity(), dAdksi(), and ear.

Referenced by computeIntSource().

double oofem::HydrationModel::giveCharacteristicValue	(	const FloatArray &	vec,
		MatResponseMode	rmode,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Returns coefficients for LHS contribution from internal sources (dHeat/dT, dWaterSource/dw) for given temp state vector.

Definition at line 327 of file hydram.C.

References computeIntSource(), oofem::FloatArray::isEmpty(), and OOFEM_ERROR.

virtual const char* oofem::HydrationModel::giveClassName ( ) const

inlinevirtual

Returns: Class name of the receiver.

Implements oofem::FEMComponent.

Definition at line 271 of file hydram.h.

double oofem::HydrationModel::giveHydrationDegree	(	GaussPoint *	gp,
		TimeStep *	tStep,
		ValueModeType	mode
	)

Returns the hydration degree at end of TimeStep tStep in given integraion point.

The value is obtained from hydration status, in integration point, on material level, or ... interpolated from several statuses

Parameters

gp	integration point
tStep	solution step
mode	value mode VM_Incremental or VM_Total

Returns: hydration degree or increment in given gp

Definition at line 428 of file hydram.C.

References oofem::HydrationModelStatus::giveHydrationDegree(), giveStatus(), and oofem::HydrationModelStatus::giveTempHydrationDegree().

Referenced by computeInternalSourceVector(), and computeIntSource().

virtual const char* oofem::HydrationModel::giveInputRecordName ( ) const

inlinevirtual

Returns: Input record name of the receiver.

Implements oofem::FEMComponent.

Definition at line 270 of file hydram.h.

References _IFT_HydrationModel_Name.

MaterialStatus * oofem::HydrationModel::giveStatus ( GaussPoint * gp ) const

virtual

Returns material status of receiver in given integration point.

In hydration model, the status is obtained from master gp status (status->giveHydrationModelStatus) If status does not exist, a new one is created.

Parameters

gp	Returns reference to hydration model status belonging to integration point gp.

Returns: hydration model status associated with given integration point.

Reimplemented from oofem::Material.

Definition at line 291 of file hydram.C.

References CreateStatus(), oofem::HydrationModelStatusInterface::giveHydrationModelStatus(), oofem::FEMComponent::giveInterface(), oofem::HydrationModelStatusInterfaceType, OOFEM_ERROR, and oofem::HydrationModelStatusInterface::setHydrationModelStatus().

Referenced by giveHydrationDegree(), and updateInternalState().

IRResultType oofem::HydrationModel::initializeFrom ( InputRecord * ir )

virtual

Initializes the hydration model according to object description stored in input record.

Called from master material initializeFrom, hydrationModelInterface initializeFrom selects the appropriate hydration model type.

Not a standard material - initializes from master material record, doesn't call parent initializeFrom Use hm_ prefix in parameter names to avoid confusion with master material parameters

Reimplemented from oofem::Material.

Definition at line 120 of file hydram.C.

References _IFT_HydrationModel_c60mix, _IFT_HydrationModel_cv, _IFT_HydrationModel_hheat, _IFT_HydrationModel_hydration, _IFT_HydrationModel_timeScale, _IFT_HydrationModel_water, cv, oofem::InputRecord::hasField(), initialHydrationDegree, IR_GIVE_OPTIONAL_FIELD, oofem::IRRT_BAD_FORMAT, oofem::IRRT_OK, le, oofem::mtC60, OOFEM_LOG_INFO, OOFEM_WARNING, setMixture(), timeScale, and we.
