Base class representing general isotropic damage model. More...

#include <mat_cebfip90.h>

Inheritance diagram for oofem::CebFipSlip90Material:

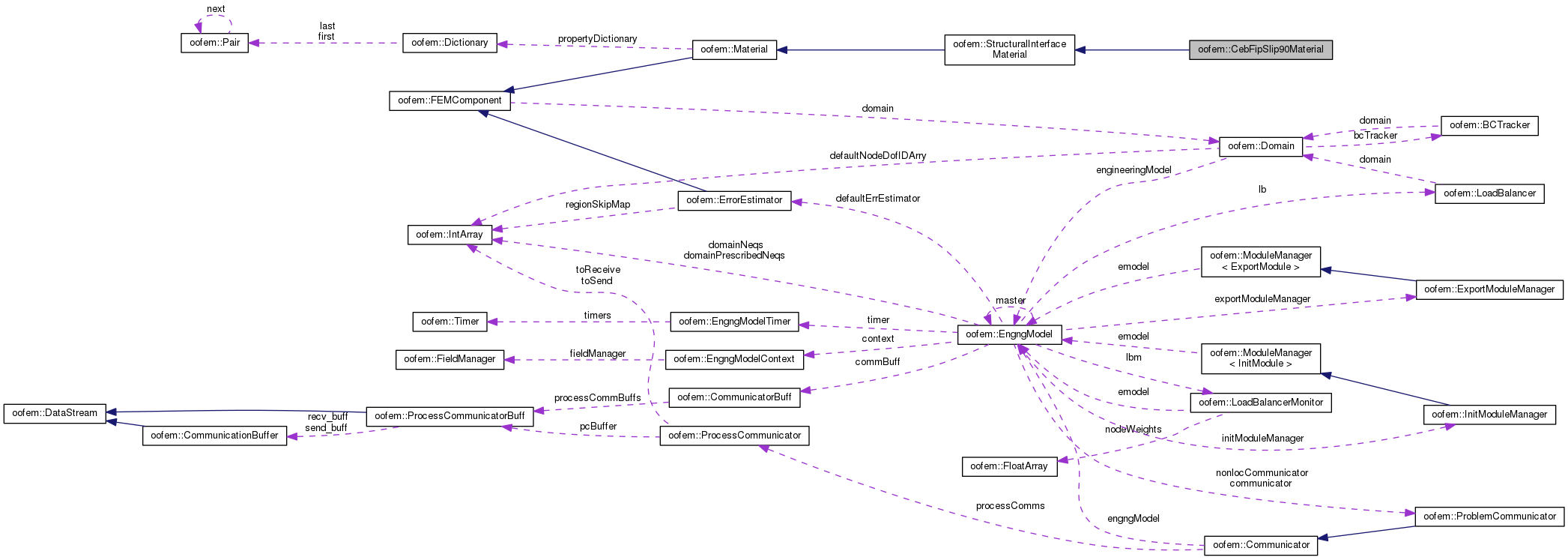

Collaboration diagram for oofem::CebFipSlip90Material:

Public Member Functions
	CebFipSlip90Material (int n, Domain *d)
	Constructor. More...

virtual	~CebFipSlip90Material ()
	Destructor. More...

virtual int	hasNonLinearBehaviour ()
	Returns nonzero if receiver is non linear. More...

virtual const char *	giveInputRecordName () const

virtual const char *	giveClassName () const

virtual void	giveEngTraction_1d (FloatArray &answer, GaussPoint gp, const FloatArray &jump, TimeStep tStep)

virtual void	give1dStiffnessMatrix_Eng (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)

virtual int	giveIPValue (FloatArray &answer, GaussPoint gp, InternalStateType type, TimeStep tStep)
	Returns the integration point corresponding value in Reduced form. More...

virtual bool	hasAnalyticalTangentStiffness () const
	Tells if the model has implemented analytical tangent stiffness. More...

double	computeBondForce (double kappa)
	Computes the value of bond force/stress, based on given value of slip value. More...

double	computeBondForceStiffness (double kappa)
	Computes the value of bond force/stress stiffness, based on given value of slip value. More...

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

virtual MaterialStatus *	CreateStatus (GaussPoint *gp) const
	Creates new copy of associated status and inserts it into given integration point. More...

Public Member Functions inherited from oofem::StructuralInterfaceMaterial
	StructuralInterfaceMaterial (int n, Domain *d)
	Constructor. More...

virtual	~StructuralInterfaceMaterial ()
	Destructor. More...

virtual void	giveFirstPKTraction_1d (FloatArray &answer, GaussPoint gp, const FloatArray &jump, const FloatMatrix &reducedF, TimeStep tStep)
	Computes the first Piola-Kirchoff traction vector for given total jump/gap and integration point. More...

virtual void	giveFirstPKTraction_2d (FloatArray &answer, GaussPoint gp, const FloatArray &jump, const FloatMatrix &reducedF, TimeStep tStep)

virtual void	giveFirstPKTraction_3d (FloatArray &answer, GaussPoint gp, const FloatArray &jump, const FloatMatrix &F, TimeStep tStep)

virtual void	giveEngTraction_2d (FloatArray &answer, GaussPoint gp, const FloatArray &jump, TimeStep tStep)

virtual void	giveEngTraction_3d (FloatArray &answer, GaussPoint gp, const FloatArray &jump, TimeStep tStep)

virtual void	give1dStiffnessMatrix_dTdj (FloatMatrix &answer, MatResponseMode rMode, GaussPoint gp, TimeStep tStep)
	Gives the tangent: $\frac{\partial T}{\partial j}$ . More...

virtual void	give2dStiffnessMatrix_dTdj (FloatMatrix &answer, MatResponseMode rMode, GaussPoint gp, TimeStep tStep)

virtual void	give3dStiffnessMatrix_dTdj (FloatMatrix &answer, MatResponseMode rMode, GaussPoint gp, TimeStep tStep)

virtual void	give2dStiffnessMatrix_Eng (FloatMatrix &answer, MatResponseMode rMode, GaussPoint gp, TimeStep tStep)

virtual void	give3dStiffnessMatrix_Eng (FloatMatrix &answer, MatResponseMode rMode, GaussPoint gp, TimeStep tStep)

void	give1dStiffnessMatrix_dTdj_Num (FloatMatrix &answer, GaussPoint gp, TimeStep tStep)

void	give2dStiffnessMatrix_dTdj_Num (FloatMatrix &answer, GaussPoint gp, TimeStep tStep)

void	give3dStiffnessMatrix_dTdj_Num (FloatMatrix &answer, GaussPoint gp, TimeStep tStep)

void	give1dStiffnessMatrix_Eng_Num (FloatMatrix &answer, GaussPoint gp, TimeStep tStep)

void	give2dStiffnessMatrix_Eng_Num (FloatMatrix &answer, GaussPoint gp, TimeStep tStep)

void	give3dStiffnessMatrix_Eng_Num (FloatMatrix &answer, GaussPoint gp, TimeStep tStep)

virtual FloatArray	giveInterfaceStrength ()

Public Member Functions inherited from oofem::Material
	Material (int n, Domain *d)
	Constructor. More...

virtual	~Material ()
	Destructor. More...

virtual bool	isCharacteristicMtrxSymmetric (MatResponseMode rMode)
	Returns true if stiffness matrix of receiver is symmetric Default implementation returns true. More...

virtual double	give (int aProperty, GaussPoint *gp)
	Returns the value of material property 'aProperty'. More...

virtual bool	hasProperty (int aProperty, GaussPoint *gp)
	Returns true if 'aProperty' exists on material. More...

virtual void	modifyProperty (int aProperty, double value, GaussPoint *gp)
	Modify 'aProperty', which already exists on material. More...

double	giveCastingTime ()

virtual bool	isActivated (TimeStep *tStep)

virtual int	hasMaterialModeCapability (MaterialMode mode)
	Tests if material supports material mode. More...

virtual int	hasCastingTimeSupport ()
	Tests if material supports casting time. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual contextIOResultType	saveIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
	Stores integration point state to output stream. More...

virtual contextIOResultType	restoreIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
	Reads integration point state to output stream. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual int	initMaterial (Element *element)
	Optional function to call specific procedures when initializing a material. More...

virtual MaterialStatus *	giveStatus (GaussPoint *gp) const
	Returns material status of receiver in given integration point. More...

virtual int	packUnknowns (DataStream &buff, TimeStep tStep, GaussPoint ip)
	Pack all necessary data of integration point (according to element parallel_mode) into given communication buffer. More...

virtual int	unpackAndUpdateUnknowns (DataStream &buff, TimeStep tStep, GaussPoint ip)
	Unpack and updates all necessary data of given integration point (according to element parallel_mode) into given communication buffer. More...

virtual int	estimatePackSize (DataStream &buff, GaussPoint *ip)
	Estimates the necessary pack size to hold all packed data of receiver. More...

virtual double	predictRelativeComputationalCost (GaussPoint *gp)
	Returns the weight representing relative computational cost of receiver The reference material model is linear isotropic material - its weight is set to 1.0 The other material models should compare to this reference model. More...

virtual double	predictRelativeRedistributionCost (GaussPoint *gp)
	Returns the relative redistribution cost of the receiver. More...

virtual void	initTempStatus (GaussPoint *gp)
	Initializes temporary variables stored in integration point status at the beginning of new time step. More...

virtual int	setIPValue (const FloatArray &value, GaussPoint *gp, InternalStateType type)
	Sets the value of a certain variable at a given integration point to the given value. More...

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Prints output of receiver to stream, for given time step. More...

virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Protected Attributes
double	tmax
	Max force (stress). More...

double	s1
	Slip valu at begining of yield plateau. More...

double	s2
	Slip at end of plateau. More...

double	s3
	Slip when residual force/stress activated. More...

double	tres
	Residual force/stress. More...

double	alpha
	Alpha coeff. More...

Protected Attributes inherited from oofem::Material
Dictionary	propertyDictionary
	Property dictionary. More...

double	castingTime
	Casting time. More...

Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Additional Inherited Members
Public Attributes inherited from oofem::StructuralInterfaceMaterial
bool	useNumericalTangent

Detailed Description

Base class representing general isotropic damage model.

It is based on isotropic damage concept, assuming that damage evolution law is postulated in explicit form, relation damage parameter (omega) to scalar measure of the largest strain level ever reached in material (kappa).

Definition at line 97 of file mat_cebfip90.h.

Constructor & Destructor Documentation

oofem::CebFipSlip90Material::CebFipSlip90Material	(	int	n,
		Domain *	d
	)

Constructor.

Definition at line 48 of file mat_cebfip90.C.

oofem::CebFipSlip90Material::~CebFipSlip90Material ( )

virtual

Destructor.

Definition at line 52 of file mat_cebfip90.C.

Member Function Documentation

double oofem::CebFipSlip90Material::computeBondForce ( double kappa )

Computes the value of bond force/stress, based on given value of slip value.

Parameters

kappa Slip value.

Definition at line 158 of file mat_cebfip90.C.

References alpha, s1, s2, s3, tmax, and tres.

Referenced by give1dStiffnessMatrix_Eng(), and giveEngTraction_1d().

double oofem::CebFipSlip90Material::computeBondForceStiffness ( double kappa )

Computes the value of bond force/stress stiffness, based on given value of slip value.

Parameters

kappa Slip value.

Definition at line 173 of file mat_cebfip90.C.

References alpha, s1, s2, s3, tmax, and tres.

Referenced by give1dStiffnessMatrix_Eng().

virtual MaterialStatus* oofem::CebFipSlip90Material::CreateStatus ( GaussPoint * gp ) const

inlinevirtual

Creates new copy of associated status and inserts it into given integration point.

Parameters

gp	Integration point where newly created status will be stored.

Returns: Reference to new status.

Reimplemented from oofem::Material.

Definition at line 145 of file mat_cebfip90.h.

References oofem::CebFipSlip90MaterialStatus::CebFipSlip90MaterialStatus(), and oofem::FEMComponent::domain.

void oofem::CebFipSlip90Material::give1dStiffnessMatrix_Eng	(	FloatMatrix &	answer,
		MatResponseMode	mode,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Reimplemented from oofem::StructuralInterfaceMaterial.

Definition at line 90 of file mat_cebfip90.C.

References oofem::__MatResponseModeToString(), oofem::FloatMatrix::at(), computeBondForce(), computeBondForceStiffness(), oofem::CebFipSlip90MaterialStatus::giveKappa(), oofem::Material::giveStatus(), oofem::CebFipSlip90MaterialStatus::giveTempKappa(), OOFEM_ERROR, and oofem::FloatMatrix::resize().

virtual const char* oofem::CebFipSlip90Material::giveClassName ( ) const

inlinevirtual

Returns: Class name of the receiver.

Reimplemented from oofem::StructuralInterfaceMaterial.

Definition at line 122 of file mat_cebfip90.h.

References oofem::IntegrationPointStatus::gp, and oofem::StructuralInterfaceMaterialStatus::jump.

void oofem::CebFipSlip90Material::giveEngTraction_1d	(	FloatArray &	answer,
		GaussPoint *	gp,
		const FloatArray &	jump,
		TimeStep *	tStep
	)

virtual

Reimplemented from oofem::StructuralInterfaceMaterial.

Definition at line 57 of file mat_cebfip90.C.

References oofem::FloatArray::at(), computeBondForce(), oofem::CebFipSlip90MaterialStatus::giveKappa(), oofem::Material::giveStatus(), oofem::StructuralInterfaceMaterialStatus::letTempJumpBe(), oofem::StructuralInterfaceMaterialStatus::letTempTractionBe(), oofem::FloatArray::resize(), and oofem::CebFipSlip90MaterialStatus::setTempKappa().

void oofem::CebFipSlip90Material::giveInputRecord ( DynamicInputRecord & input )

virtual

Setups the input record string of receiver.

Parameters

input Dynamic input record to be filled by receiver.

Reimplemented from oofem::StructuralInterfaceMaterial.

Definition at line 144 of file mat_cebfip90.C.

References _IFT_CebFipSlip90Material_s1, _IFT_CebFipSlip90Material_s2, _IFT_CebFipSlip90Material_s3, _IFT_CebFipSlip90Material_tmax, _IFT_CebFipSlip90Material_tres, oofem::StructuralInterfaceMaterial::giveInputRecord(), s1, s2, s3, oofem::DynamicInputRecord::setField(), tmax, and tres.

virtual const char* oofem::CebFipSlip90Material::giveInputRecordName ( ) const

inlinevirtual

Returns: Input record name of the receiver.

Implements oofem::FEMComponent.

Definition at line 121 of file mat_cebfip90.h.

References _IFT_CebFipSlip90Material_Name.

int oofem::CebFipSlip90Material::giveIPValue	(	FloatArray &	answer,
		GaussPoint *	gp,
		InternalStateType	type,
		TimeStep *	tStep
	)

virtual

Returns the integration point corresponding value in Reduced form.

Parameters

answer	Contain corresponding ip value, zero sized if not available.
gp	Integration point to which the value refers.
type	Determines the type of internal variable.
tStep	Determines the time step.

Returns: Nonzero if the assignment can be done, zero if this type of variable is not supported.

Reimplemented from oofem::StructuralInterfaceMaterial.

Definition at line 112 of file mat_cebfip90.C.

References oofem::FloatArray::at(), oofem::StructuralInterfaceMaterial::giveIPValue(), oofem::CebFipSlip90MaterialStatus::giveKappa(), oofem::Material::giveStatus(), and oofem::FloatArray::resize().

virtual bool oofem::CebFipSlip90Material::hasAnalyticalTangentStiffness ( ) const

inlinevirtual

Tells if the model has implemented analytical tangent stiffness.

If not, the tangent must be computed numerically.

Implements oofem::StructuralInterfaceMaterial.

Definition at line 129 of file mat_cebfip90.h.

References oofem::FEMComponent::giveInputRecord(), oofem::MaterialStatus::initializeFrom(), and oofem::CebFipSlip90MaterialStatus::kappa.

virtual int oofem::CebFipSlip90Material::hasNonLinearBehaviour ( )

inlinevirtual

Returns nonzero if receiver is non linear.

Reimplemented from oofem::Material.

Definition at line 119 of file mat_cebfip90.h.

IRResultType oofem::CebFipSlip90Material::initializeFrom ( InputRecord * ir )

virtual

Initializes receiver according to object description stored in input record.

This function is called immediately after creating object using constructor. Input record can be imagined as data record in component database belonging to receiver. Receiver may use value-name extracting functions to extract particular field from record.
