#include <cemhydmat.h>

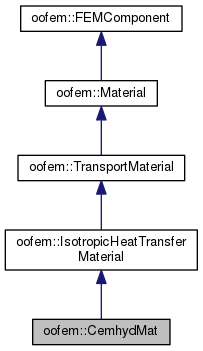

Inheritance diagram for oofem::CemhydMat:

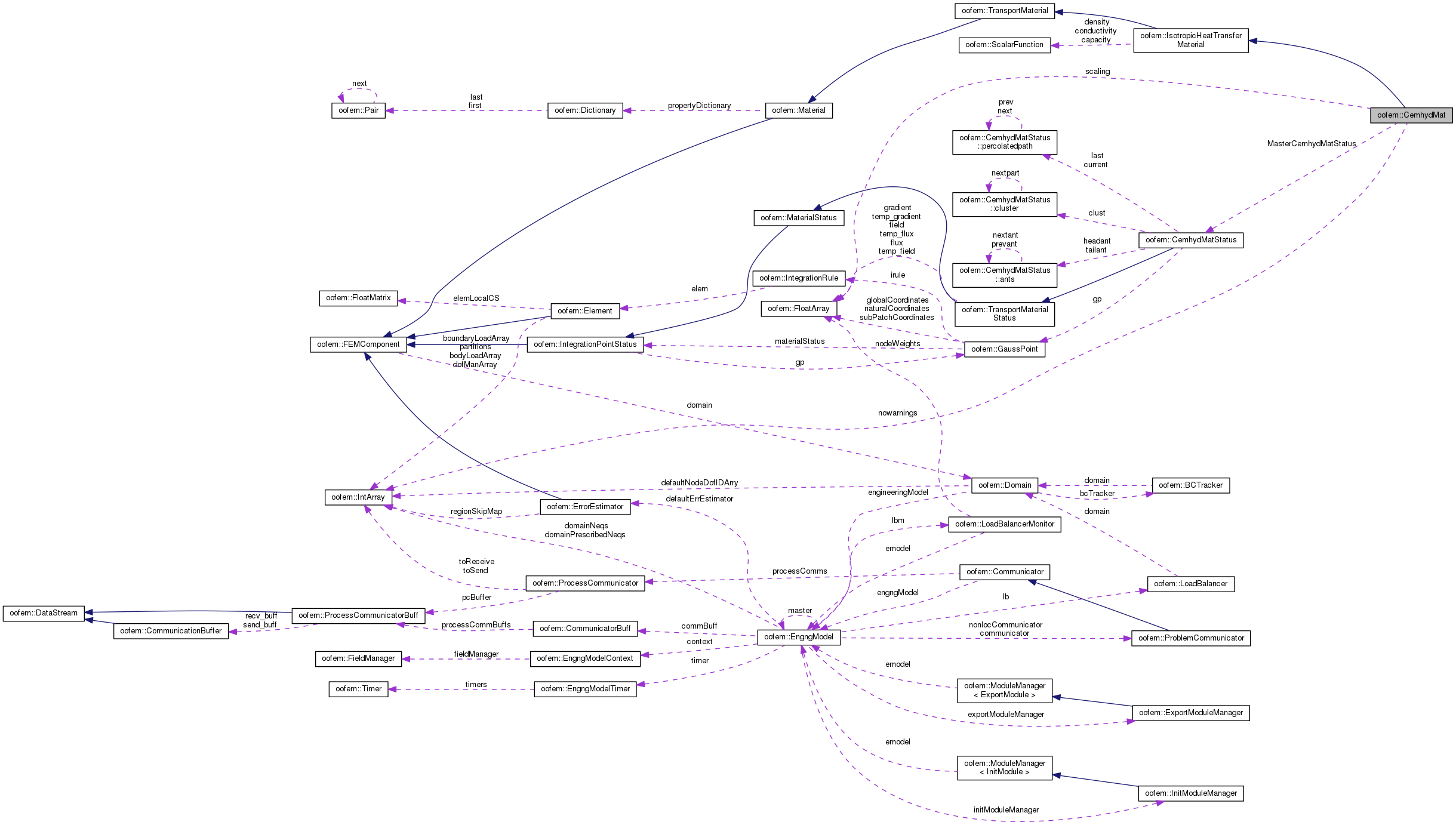

Collaboration diagram for oofem::CemhydMat:

Public Member Functions
	CemhydMat (int n, Domain *d)
	Constructor. More...

virtual	~CemhydMat ()
	Destructor. More...

virtual const char *	giveInputRecordName () const
	Returns input record name of the receiver. More...

virtual const char *	giveClassName () const

virtual int	hasInternalSource ()
	Returns nonzero if receiver generates internal source of state variable(s), zero otherwise. More...

virtual void	computeInternalSourceVector (FloatArray &val, GaussPoint gp, TimeStep tStep, ValueModeType mode)
	Computes the internal source vector of receiver. More...

virtual int	giveCycleNumber (GaussPoint *gp)
	Returns cycle number at the closest cycle after the target time. More...

virtual double	giveTimeOfCycle (GaussPoint *gp)
	Returns time of the CEMHYD3D at the first cycle after the target time. More...

virtual double	giveDoHActual (GaussPoint *gp)
	Returns DoH of the closest CEMHYD3D cycle after the target time. More...

virtual double	giveIsotropicConductivity (GaussPoint gp, TimeStep tStep)
	Returns concrete heat conductivity depending on chosen type. More...

virtual double	giveConcreteCapacity (GaussPoint gp, TimeStep tStep)
	Returns concrete thermal capacity depending on chosen type. More...

virtual double	giveConcreteDensity (GaussPoint gp, TimeStep tStep)
	Returns concrete density depending on chosen type. More...

virtual double	giveCharacteristicValue (MatResponseMode mode, GaussPoint gp, TimeStep tStep)
	Compute heat thermal capacity per volume. More...

virtual int	giveIPValue (FloatArray &answer, GaussPoint gp, InternalStateType type, TimeStep tStep)
	Returns the integration point corresponding value in Reduced form. More...

virtual int	initMaterial (Element *element)
	Optional function to call specific procedures when initializing a material. More...

virtual void	clearWeightTemperatureProductVolume (Element *element)
	Clear temperatures multiplied with volume around GPs - need before temperature averaging. More...

virtual void	storeWeightTemperatureProductVolume (Element element, TimeStep tStep)
	Store temperatures multiplied with volume around GPs - need before temperature averaging. More...

virtual void	averageTemperature ()
	Perform averaging on a master CemhydMatStatus. More...

virtual IRResultType	initializeFrom (InputRecord *ir)
	Initializes receiver according to object description stored in input record. More...

virtual MaterialStatus *	CreateStatus (GaussPoint *gp) const
	Creates new copy of associated status and inserts it into given integration point. More...

Public Member Functions inherited from oofem::IsotropicHeatTransferMaterial
	IsotropicHeatTransferMaterial (int n, Domain *d)

virtual	~IsotropicHeatTransferMaterial ()

virtual void	giveFluxVector (FloatArray &answer, GaussPoint gp, const FloatArray &grad, const FloatArray &field, TimeStep tStep)
	Returns the flux for the field and its gradient. More...

virtual void	giveCharacteristicMatrix (FloatMatrix &answer, MatResponseMode mode, GaussPoint gp, TimeStep tStep)
	Computes characteristic matrix of receiver in given integration point. More...

virtual double	giveMaturityT0 ()

virtual double	give (int aProperty, GaussPoint gp, TimeStep tStep)

double	giveTemperature (GaussPoint *gp)

Public Member Functions inherited from oofem::TransportMaterial
	TransportMaterial (int n, Domain *d)
	Constructor. More...

virtual	~TransportMaterial ()
	Destructor. More...

virtual void	updateInternalState (const FloatArray &state, GaussPoint gp, TimeStep tStep)
	Updates internal state of material according to new state vector. More...

virtual double	giveHumidity (GaussPoint *gp, ValueModeType mode)
	Returns positive value of humidity if implemented and enabled in derived material, -1 otherwise. More...

Public Member Functions inherited from oofem::Material
	Material (int n, Domain *d)
	Constructor. More...

virtual	~Material ()
	Destructor. More...

virtual bool	isCharacteristicMtrxSymmetric (MatResponseMode rMode)
	Returns true if stiffness matrix of receiver is symmetric Default implementation returns true. More...

virtual double	give (int aProperty, GaussPoint *gp)
	Returns the value of material property 'aProperty'. More...

virtual bool	hasProperty (int aProperty, GaussPoint *gp)
	Returns true if 'aProperty' exists on material. More...

virtual void	modifyProperty (int aProperty, double value, GaussPoint *gp)
	Modify 'aProperty', which already exists on material. More...

double	giveCastingTime ()

virtual bool	isActivated (TimeStep *tStep)

virtual int	hasNonLinearBehaviour ()
	Returns nonzero if receiver is non linear. More...

virtual int	hasMaterialModeCapability (MaterialMode mode)
	Tests if material supports material mode. More...

virtual int	hasCastingTimeSupport ()
	Tests if material supports casting time. More...

virtual void	giveInputRecord (DynamicInputRecord &input)
	Setups the input record string of receiver. More...

virtual void	printYourself ()
	Prints receiver state on stdout. Useful for debugging. More...

virtual contextIOResultType	saveIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
	Stores integration point state to output stream. More...

virtual contextIOResultType	restoreIPContext (DataStream &stream, ContextMode mode, GaussPoint *gp)
	Reads integration point state to output stream. More...

virtual int	checkConsistency ()
	Allows programmer to test some internal data, before computation begins. More...

virtual MaterialStatus *	giveStatus (GaussPoint *gp) const
	Returns material status of receiver in given integration point. More...

virtual int	packUnknowns (DataStream &buff, TimeStep tStep, GaussPoint ip)
	Pack all necessary data of integration point (according to element parallel_mode) into given communication buffer. More...

virtual int	unpackAndUpdateUnknowns (DataStream &buff, TimeStep tStep, GaussPoint ip)
	Unpack and updates all necessary data of given integration point (according to element parallel_mode) into given communication buffer. More...

virtual int	estimatePackSize (DataStream &buff, GaussPoint *ip)
	Estimates the necessary pack size to hold all packed data of receiver. More...

virtual double	predictRelativeComputationalCost (GaussPoint *gp)
	Returns the weight representing relative computational cost of receiver The reference material model is linear isotropic material - its weight is set to 1.0 The other material models should compare to this reference model. More...

virtual double	predictRelativeRedistributionCost (GaussPoint *gp)
	Returns the relative redistribution cost of the receiver. More...

virtual void	initTempStatus (GaussPoint *gp)
	Initializes temporary variables stored in integration point status at the beginning of new time step. More...

virtual int	setIPValue (const FloatArray &value, GaussPoint *gp, InternalStateType type)
	Sets the value of a certain variable at a given integration point to the given value. More...

Public Member Functions inherited from oofem::FEMComponent
	FEMComponent (int n, Domain *d)
	Regular constructor, creates component with given number and belonging to given domain. More...

virtual	~FEMComponent ()
	Virtual destructor. More...

Domain *	giveDomain () const

virtual void	setDomain (Domain *d)
	Sets associated Domain. More...

int	giveNumber () const

void	setNumber (int num)
	Sets number of receiver. More...

virtual void	updateLocalNumbering (EntityRenumberingFunctor &f)
	Local renumbering support. More...

virtual contextIOResultType	saveContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Stores receiver state to output stream. More...

virtual contextIOResultType	restoreContext (DataStream &stream, ContextMode mode, void *obj=NULL)
	Restores the receiver state previously written in stream. More...

virtual void	printOutputAt (FILE file, TimeStep tStep)
	Prints output of receiver to stream, for given time step. More...

virtual Interface *	giveInterface (InterfaceType t)
	Interface requesting service. More...

std::string	errorInfo (const char *func) const
	Returns string for prepending output (used by error reporting macros). More...

Public Attributes
int	conductivityType
	Use different methods to evaluate material parameters. More...

int	capacityType

int	densityType

IntArray	nowarnings
	Array containing warnings supression for density, conductivity, capacity, high temperature. More...

FloatArray	scaling
	Array containing scaling factors for density, conductivity and capacity. More...

int	reinforcementDegree
	Degree of reinforcement, if defined, reinforcement effect for conductivity and capacity is accounted for. Isotropic case. More...

int	eachGP
	Assign a separate microstructure in each integration point. More...

std::string	XMLfileName
	XML input file name for CEMHYD3D. More...

CemhydMatStatus *	MasterCemhydMatStatus
	Pointer to master CemhydMatStatus, which is shared among related integration points (on element, for example). More...

Additional Inherited Members
Protected Attributes inherited from oofem::IsotropicHeatTransferMaterial
ScalarFunction	conductivity
	Conductivity (k in input file). More...

ScalarFunction	capacity
	Capacity (c in input file). More...

ScalarFunction	density
	Density (td in input file). More...

double	maturityT0
	Baseline for maturity mathod. More...

Protected Attributes inherited from oofem::Material
Dictionary	propertyDictionary
	Property dictionary. More...

double	castingTime
	Casting time. More...

Protected Attributes inherited from oofem::FEMComponent
int	number
	Component number. More...

Domain *	domain
	Link to domain object, useful for communicating with other FEM components. More...

Detailed Description

Definition at line 92 of file cemhydmat.h.

Constructor & Destructor Documentation

oofem::CemhydMat::CemhydMat	(	int	n,
		Domain *	d
	)

Constructor.

Definition at line 95 of file cemhydmat.C.

References MasterCemhydMatStatus.

oofem::CemhydMat::~CemhydMat ( )

virtual

Destructor.

Definition at line 100 of file cemhydmat.C.

Member Function Documentation

void oofem::CemhydMat::averageTemperature ( )

virtual

Perform averaging on a master CemhydMatStatus.

Definition at line 399 of file cemhydmat.C.

References eachGP, oofem::CemhydMatStatus::giveAverageTemperature(), oofem::CemhydMatStatus::giveTotalVolume(), MasterCemhydMatStatus, and oofem::CemhydMatStatus::setAverageTemperatureVolume().

Referenced by oofem::NonStationaryTransportProblem::applyIC(), computeInternalSourceVector(), oofem::NonStationaryTransportProblem::updateYourself(), and oofem::CemhydMatStatus::updateYourself().

void oofem::CemhydMat::clearWeightTemperatureProductVolume ( Element * element )

virtual

Clear temperatures multiplied with volume around GPs - need before temperature averaging.

Definition at line 375 of file cemhydmat.C.

References oofem::Element::giveDefaultIntegrationRulePtr(), oofem::Material::giveStatus(), and oofem::CemhydMatStatus::setAverageTemperatureVolume().

Referenced by oofem::NonStationaryTransportProblem::applyIC(), oofem::NonStationaryTransportProblem::updateYourself(), and oofem::CemhydMatStatus::updateYourself().

void oofem::CemhydMat::computeInternalSourceVector	(	FloatArray &	val,
		GaussPoint *	gp,
		TimeStep *	tStep,
		ValueModeType	mode
	)

virtual

Computes the internal source vector of receiver.

Parameters

val	Contains response.
gp	Integration point.
tStep	Solution step.
mode	Determines response mode.

Reimplemented from oofem::TransportMaterial.

Definition at line 105 of file cemhydmat.C.

References oofem::__ValueModeTypeToString(), oofem::FloatArray::at(), averageTemperature(), eachGP, oofem::CemhydMatStatus::giveAverageTemperature(), oofem::CemhydMatStatus::GivePower(), oofem::Material::giveStatus(), oofem::TimeStep::giveTargetTime(), oofem::CemhydMatStatus::LastCallTime, MasterCemhydMatStatus, OOFEM_ERROR, oofem::CemhydMatStatus::PartHeat, and oofem::FloatArray::resize().

MaterialStatus * oofem::CemhydMat::CreateStatus ( GaussPoint * gp ) const

virtual

Creates new copy of associated status and inserts it into given integration point.

Parameters

gp	Integration point where newly created status will be stored.

Returns: Reference to new status.

Reimplemented from oofem::IsotropicHeatTransferMaterial.

Definition at line 450 of file cemhydmat.C.

References OOFEM_ERROR.

double oofem::CemhydMat::giveCharacteristicValue	(	MatResponseMode	mode,
		GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Compute heat thermal capacity per volume.

Reimplemented from oofem::IsotropicHeatTransferMaterial.

Definition at line 260 of file cemhydmat.C.

References oofem::__MatResponseModeToString(), oofem::FloatArray::at(), oofem::CemhydMatStatus::E_act, giveConcreteCapacity(), giveConcreteDensity(), oofem::TransportMaterialStatus::giveField(), oofem::Material::giveStatus(), oofem::CemhydMatStatus::icyc, MasterCemhydMatStatus, OOFEM_ERROR, and oofem::CemhydMatStatus::temp_cur.

virtual const char* oofem::CemhydMat::giveClassName ( ) const

inlinevirtual

Returns: Class name of the receiver.

Reimplemented from oofem::IsotropicHeatTransferMaterial.

Definition at line 101 of file cemhydmat.h.

double oofem::CemhydMat::giveConcreteCapacity	(	GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Returns concrete thermal capacity depending on chosen type.

Definition at line 199 of file cemhydmat.C.

References oofem::IntArray::at(), oofem::FloatArray::at(), capacityType, oofem::CemhydMatStatus::computeConcreteCapacityBentz(), oofem::IsotropicHeatTransferMaterial::give(), oofem::CemhydMatStatus::GiveCp(), oofem::Material::giveStatus(), MasterCemhydMatStatus, nowarnings, OOFEM_ERROR, OOFEM_WARNING, reinforcementDegree, and scaling.

Referenced by giveCharacteristicValue(), giveIPValue(), and oofem::CemhydMatStatus::printOutputAt().

double oofem::CemhydMat::giveConcreteDensity	(	GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Returns concrete density depending on chosen type.

Definition at line 230 of file cemhydmat.C.

References oofem::IntArray::at(), oofem::FloatArray::at(), densityType, oofem::IsotropicHeatTransferMaterial::give(), oofem::CemhydMatStatus::GiveDensity(), oofem::Material::giveStatus(), MasterCemhydMatStatus, nowarnings, OOFEM_ERROR, OOFEM_WARNING, reinforcementDegree, and scaling.

Referenced by giveCharacteristicValue(), giveIPValue(), and oofem::CemhydMatStatus::printOutputAt().

int oofem::CemhydMat::giveCycleNumber ( GaussPoint * gp )

virtual

Returns cycle number at the closest cycle after the target time.

Definition at line 135 of file cemhydmat.C.

References oofem::CemhydMatStatus::GiveCycNum(), oofem::Material::giveStatus(), and MasterCemhydMatStatus.

Referenced by oofem::CemhydMatStatus::printOutputAt().

double oofem::CemhydMat::giveDoHActual ( GaussPoint * gp )

virtual

Returns DoH of the closest CEMHYD3D cycle after the target time.

Definition at line 157 of file cemhydmat.C.

References oofem::CemhydMatStatus::GiveDoHActual(), oofem::Material::giveStatus(), and MasterCemhydMatStatus.

Referenced by giveIPValue(), and oofem::CemhydMatStatus::printOutputAt().

virtual const char* oofem::CemhydMat::giveInputRecordName ( ) const

inlinevirtual

Returns input record name of the receiver.

Reimplemented from oofem::IsotropicHeatTransferMaterial.

Definition at line 100 of file cemhydmat.h.

References _IFT_CemhydMat_Name.

int oofem::CemhydMat::giveIPValue	(	FloatArray &	answer,
		GaussPoint *	gp,
		InternalStateType	type,
		TimeStep *	tStep
	)

virtual

Returns the integration point corresponding value in Reduced form.

Parameters

answer	Contain corresponding ip value, zero sized if not available.
gp	Integration point to which the value refers.
type	Determines the type of internal variable.
tStep	Determines the time step.

Returns: Nonzero if the assignment can be done, zero if this type of variable is not supported.

Reimplemented from oofem::IsotropicHeatTransferMaterial.

Definition at line 303 of file cemhydmat.C.

References oofem::FloatArray::at(), oofem::CemhydMatStatus::giveAverageTemperature(), giveConcreteCapacity(), giveConcreteDensity(), giveDoHActual(), oofem::TransportMaterial::giveIPValue(), giveIsotropicConductivity(), oofem::Material::giveStatus(), oofem::CemhydMatStatus::last_values, MasterCemhydMatStatus, and oofem::FloatArray::resize().

Referenced by oofem::NonStationaryTransportProblem::assembleDirichletBcRhsVector().

double oofem::CemhydMat::giveIsotropicConductivity	(	GaussPoint *	gp,
		TimeStep *	tStep
	)

virtual

Returns concrete heat conductivity depending on chosen type.

Reimplemented from oofem::IsotropicHeatTransferMaterial.

Definition at line 168 of file cemhydmat.C.

References oofem::IntArray::at(), oofem::FloatArray::at(), conductivityType, oofem::IsotropicHeatTransferMaterial::give(), oofem::CemhydMatStatus::GiveDoHActual(), oofem::Material::giveStatus(), MasterCemhydMatStatus, nowarnings, OOFEM_ERROR, OOFEM_WARNING, reinforcementDegree, and scaling.

Referenced by giveIPValue(), and oofem::CemhydMatStatus::printOutputAt().

double oofem::CemhydMat::giveTimeOfCycle ( GaussPoint * gp )

virtual

Returns time of the CEMHYD3D at the first cycle after the target time.

Definition at line 145 of file cemhydmat.C.

References oofem::CemhydMatStatus::GiveCycTime(), oofem::Material::giveStatus(), and MasterCemhydMatStatus.

Referenced by oofem::CemhydMatStatus::printOutputAt().

virtual int oofem::CemhydMat::hasInternalSource ( )

inlinevirtual

Returns nonzero if receiver generates internal source of state variable(s), zero otherwise.

Reimplemented from oofem::TransportMaterial.

Definition at line 103 of file cemhydmat.h.

IRResultType oofem::CemhydMat::initializeFrom ( InputRecord * ir )

virtual

Initializes receiver according to object description stored in input record.

This function is called immediately after creating object using constructor. Input record can be imagined as data record in component database belonging to receiver. Receiver may use value-name extracting functions to extract particular field from record.

See also: IR_GIVE_FIELD; IR_GIVE_OPTIONAL_FIELD

Parameters

ir	Input record to initialize from.

Returns: IRResultType

Reimplemented from oofem::IsotropicHeatTransferMaterial.

Definition at line 407 of file cemhydmat.C.

References _IFT_CemhydMat_capacitytype, _IFT_CemhydMat_conductivitytype, _IFT_CemhydMat_densitytype, _IFT_CemhydMat_eachgp, _IFT_CemhydMat_inputFileName, _IFT_CemhydMat_nowarnings, _IFT_CemhydMat_reinforcementDegree, _IFT_CemhydMat_scaling, oofem::FloatArray::at(), capacityType, oofem::Material::castingTime, conductivityType, densityType, eachGP, oofem::IntArray::giveSize(), oofem::FloatArray::giveSize(), oofem::IsotropicHeatTransferMaterial::initializeFrom(), IR_GIVE_FIELD, IR_GIVE_OPTIONAL_FIELD, oofem::IRRT_OK, nowarnings, OOFEM_ERROR, reinforcementDegree, oofem::IntArray::resize(), oofem::FloatArray::resize(), scaling, XMLfileName, and oofem::IntArray::zero().

int oofem::CemhydMat::initMaterial ( Element * element )

virtual

Optional function to call specific procedures when initializing a material.

For example, multiscale simulations need to create master and slave material statuses on specific integration points before the computation.

Parameters

element Pointer to element.

Returns: Zero on error.

Reimplemented from oofem::Material.

Definition at line 354 of file cemhydmat.C.

References oofem::FEMComponent::domain, eachGP, oofem::Element::giveDefaultIntegrationRulePtr(), oofem::FEMComponent::giveNumber(), and MasterCemhydMatStatus.

Referenced by oofem::NonStationaryTransportProblem::applyIC(), and oofem::TransportElement::updateInternalState().

void oofem::CemhydMat::storeWeightTemperatureProductVolume	(	Element *	element,
		TimeStep *	tStep
	)

virtual

Store temperatures multiplied with volume around GPs - need before temperature averaging.

Definition at line 385 of file cemhydmat.C.

References oofem::FloatArray::at(), oofem::Element::computeVolumeAround(), eachGP, oofem::CemhydMatStatus::giveAverageTemperature(), oofem::Element::giveDefaultIntegrationRulePtr(), oofem::Element::giveIPValue(), oofem::CemhydMatStatus::giveTotalVolume(), MasterCemhydMatStatus, and oofem::CemhydMatStatus::setAverageTemperatureVolume().

Referenced by oofem::NonStationaryTransportProblem::applyIC(), oofem::NonStationaryTransportProblem::updateYourself(), and oofem::CemhydMatStatus::updateYourself().

Member Data Documentation

int oofem::CemhydMat::capacityType

Definition at line 132 of file cemhydmat.h.

Referenced by giveConcreteCapacity(), and initializeFrom().

int oofem::CemhydMat::conductivityType

Use different methods to evaluate material parameters.

Definition at line 132 of file cemhydmat.h.

Referenced by giveIsotropicConductivity(), and initializeFrom().

int oofem::CemhydMat::densityType

Definition at line 132 of file cemhydmat.h.

Referenced by giveConcreteDensity(), and initializeFrom().

int oofem::CemhydMat::eachGP

Assign a separate microstructure in each integration point.

Definition at line 140 of file cemhydmat.h.

Referenced by averageTemperature(), computeInternalSourceVector(), oofem::CemhydMatStatus::giveAverageTemperature(), initializeFrom(), initMaterial(), oofem::CemhydMatStatus::printOutputAt(), and storeWeightTemperatureProductVolume().

CemhydMatStatus* oofem::CemhydMat::MasterCemhydMatStatus

Pointer to master CemhydMatStatus, which is shared among related integration points (on element, for example).

When Cemhyd3D runs seperately in each GP, MasterCemhydMatStatus belongs to the first instance, from which the microstructure is copied to the rest of integration points.

Definition at line 148 of file cemhydmat.h.

Referenced by averageTemperature(), CemhydMat(), computeInternalSourceVector(), oofem::CemhydMatStatus::giveAverageTemperature(), giveCharacteristicValue(), giveConcreteCapacity(), giveConcreteDensity(), giveCycleNumber(), giveDoHActual(), giveIPValue(), giveIsotropicConductivity(), giveTimeOfCycle(), initMaterial(), oofem::CemhydMatStatus::printOutputAt(), and storeWeightTemperatureProductVolume().
